SNOW THROWER 2-STAGE HYDRAULIC SNOW THROWER 2-STAGE HYDRAULIC (2016)
>
SnowThrower
Back to
SNOW THROWER 2-STAGE HYDRAULIC
SNOW THROWER 2-STAGE HYDRAULIC (2016)
SnowThrower
SNOW THROWER 2-STAGE HYDRAULIC
SNOW THROWER 2-STAGE HYDRAULIC (2016)

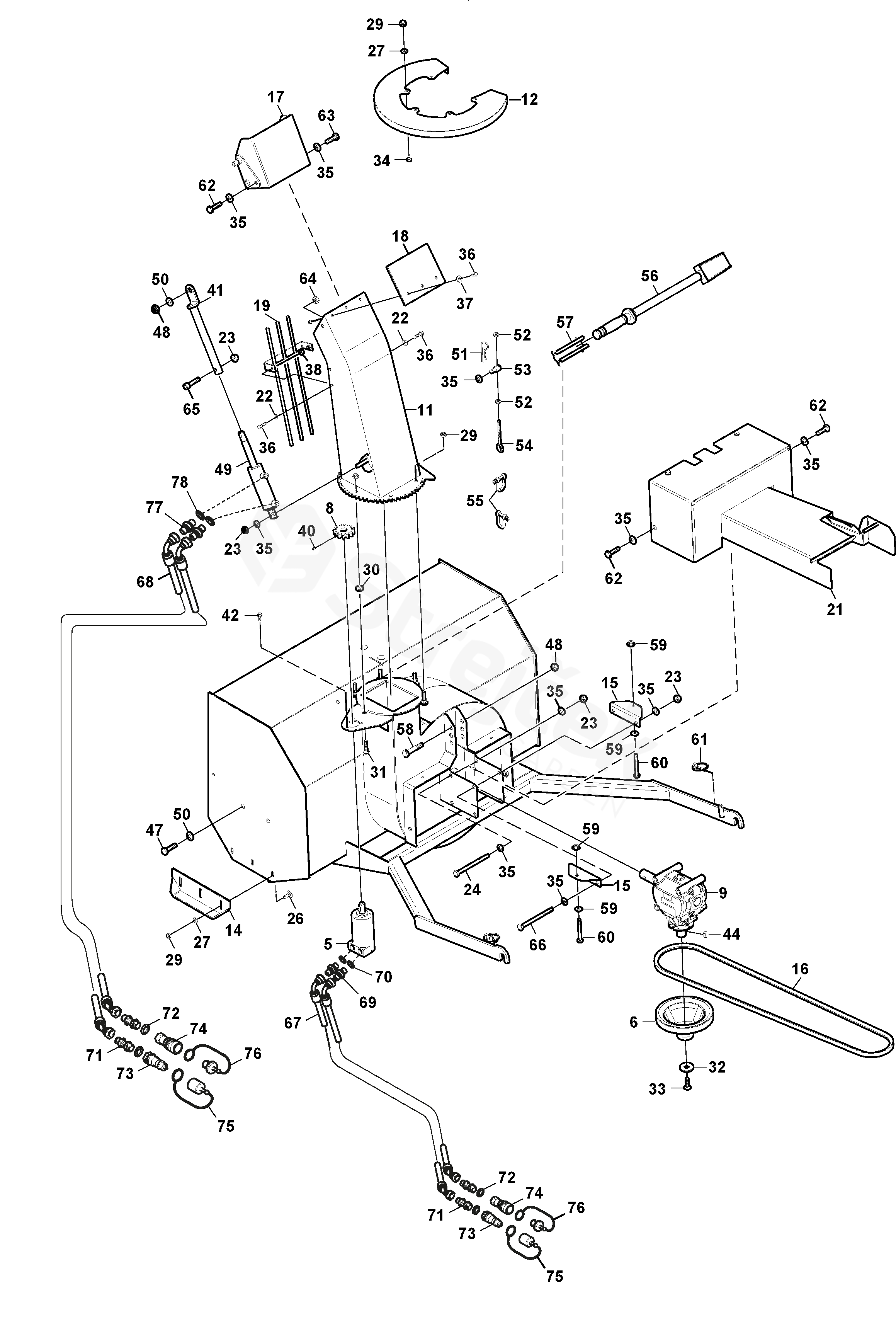

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
SNOW THROWER 2-STAGE HYDRAULIC (2016)
5
Hydraulic Motor
1319-2129-01
6
Pulley
1319-1924-01
8
Gear Wheel
1319-2125-01
9
Gearbox 3,25:1
1319-1953-01
11
Ejection chute
1319-2344-01
12
Guard
1319-2345-01
14
Skid Plate
1319-1503-01
15
Mower deflector
1319-2347-01
16
V-Belt
1134-9147-01
17
Chute
1319-2348-01
18
Rubber
1319-1524-01
19
Discharge Guard
1319-1893-01
21
Belt Protection
1319-2349-01
22
Washer
9699-0025-02
23
Lock Nut
9747-1031-02
24
Screw
9997-1012-02
27
Washer
9699-0028-02
29
Nut
9747-0831-02
30
Collar
1319-1966-01
31
Screw
112691115/0
32
Washer
1319-1879-01
33
Screw
1319-1883-01
34
Spacer
To 31 March 2019
1319-2350-01
35
Washer
9699-0035-02
36
Screw
112791200/1
37
Washer
9699-0085-02
38
Lock Nut
9747-0631-02
41
Tube
1319-2351-01
42
Screw
9698-0616-16
44
Key
1319-1884-01
49
Hydraulic Cylinder
1137-0071-01
50
Washer
9699-0037-02
51
Spring Pin
9598-0003-02
52
Nut
9799-0831-02
53
Pin
1134-0576-02
54
Eye-Bolt
9405-0031-00
55
Lift link
1134-2629-01
56
Cleaning Stick
1319-2085-01
57
Bracket
1319-2086-01
58
Screw
9997-1260-12
59
Nut
112293201/0
60
Screw
9997-0870-16
61
Pin
1319-2319-01
62
Screw
9997-1030-16
63
Screw
9997-1025-16
64
Lock Nut
9747-1031-02
65
Screw
1319-2352-01
66
Screw
1319-1882-01
67
Hydraulic Tube 1/4"
1/4" - L 550
118890129/0
68
Hydraulic Tube 1/4"
1/4" - L 850
118890130/0
69
Adaptor 1/4-3/8
1319-2201-01
70
Seal 3/8
1319-2196-01
71
Tube Connection
112375001/0
72
Washer
1134-4948-01
73
Quick Coupling-Male
1134-6042-01
74
Quick Connector-Female 1/4
1134-7172-01
75
Plastic Cap
1134-7175-01
76
Plastic Plug
1134-7173-01
77
Adapter
1134-4824-01
78
Seal 1/8"
118890131/0
79
Hydraulic Tube 1/4"
1/4" - L 980
118890132/0
