Spare parts > STIGA > Front Mowers > SWEEPING UNIT PARK - 4WD SWEEPING UNIT PARK - 4WD (2005) > Sweeper Transmission
Back to

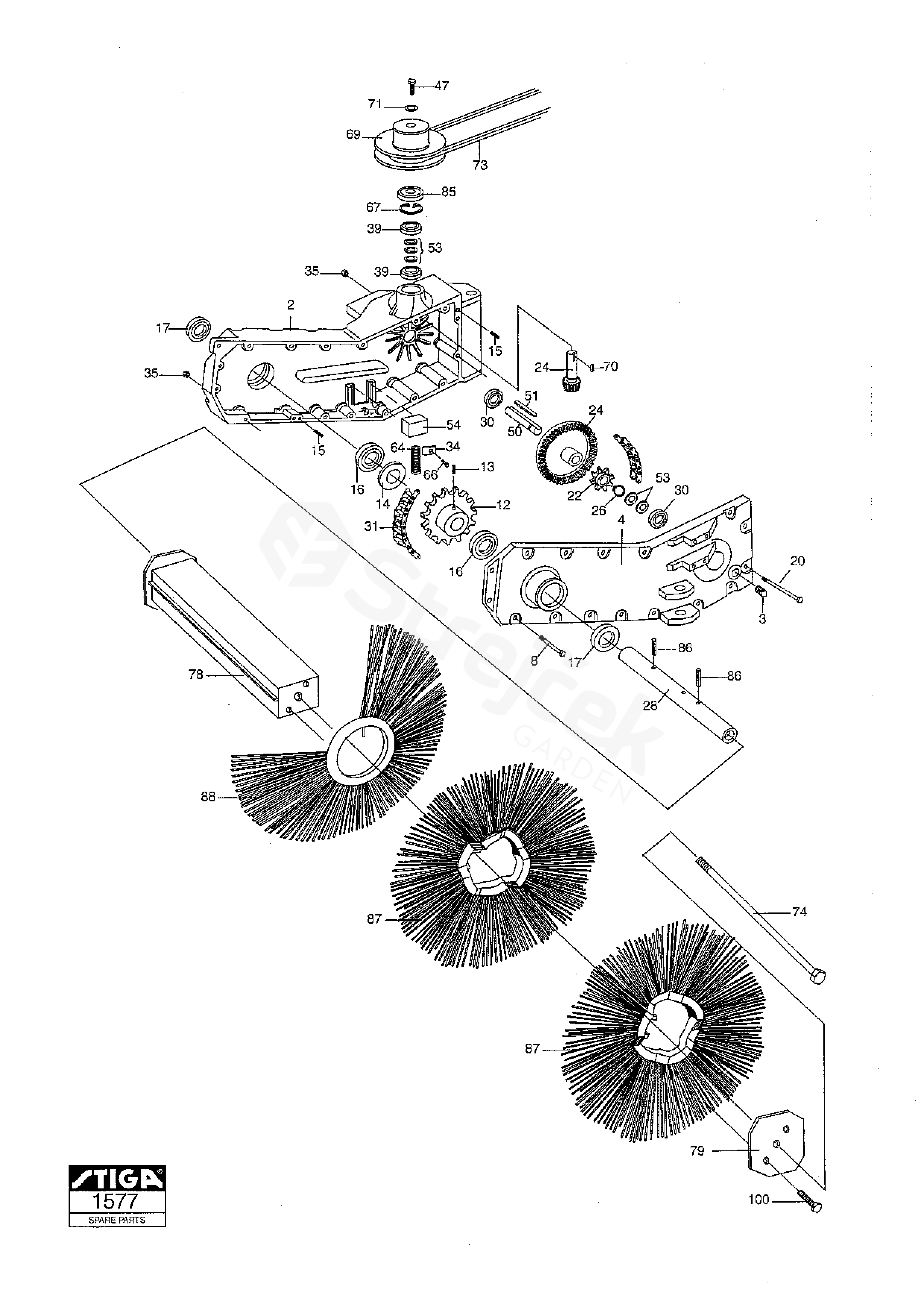

Sweeper Transmission
SWEEPING UNIT PARK - 4WD SWEEPING UNIT PARK - 4WD (2005)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SWEEPING UNIT PARK - 4WD (2005)
2 Transmission Case 1319-1847-01
3 Oil Plug 9500-9982-00
4 Transmission Cover 1134-2763-01
8 Screw 9997-0635-12
12 Sprocket 1134-2584-01
13 Screw 9907-1020-19
14 Washer 9695-0006-00
15 Pin 9591-0020-00
16 Ball Bearing 9549-0045-00
17 Seal Ring 9404-0074-00
20 Screw 9997-0670-12
22 Sprocket 1134-2587-01
24 Gear Wheel Kit 1319-1844-01
26 Retainer ring 9650-0017-04
28 Output Shaft 1134-2585-01
30 Ball Bearing 9549-0017-00
31 Chain 9589-0013-00
34 Clamp Front 1111-1706-01
35 Nut 9739-0631-22
39 Ball Bearing 9549-0019-00
47 Screw 9997-0820-16
50 Shaft 1134-2588-01
51 Key 9600-0148-00
53 Washer 9695-0005-00
54 Chain Tensioner 1134-2589-01
64 Spring 1134-2590-01
66 Screw 9943-0510-16
67 Circlip 9651-0040-04
69 Pulley 1319-1846-01
70 Key 9600-0145-00
71 Washer 9699-0056-02
73 Drive Belt
9440 , 4WD 		1134-9093-01
74 Bolt
L = 355 mm 		1134-2796-02
78 Brush Shaft 1319-1825-01
79 Flange 1319-1826-01
85 Seal Ring 9404-0073-00
86 Pin 9591-0031-00
87 Brush 1134-3880-01
88 Brush 1134-3884-01
100 Screw 9997-1035-16
