Spare parts > STIGA > Lawn Tractor > ESTATE COLLECTOR HST ESTATE COLLECTOR HST (2007) [13-2574-12] > Body
Back to

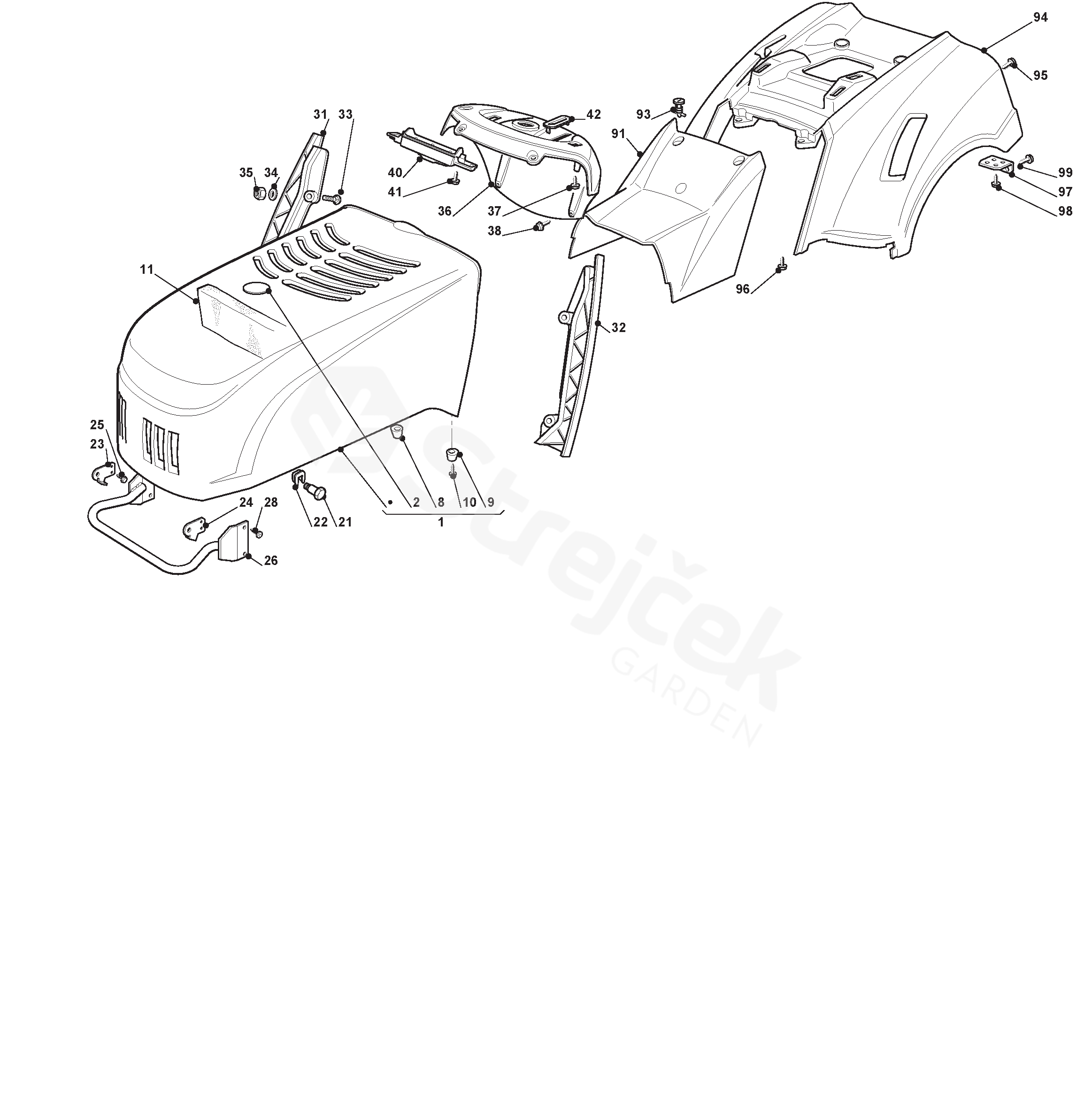

Body
ESTATE COLLECTOR HST ESTATE COLLECTOR HST (2007) [13-2574-12]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ESTATE COLLECTOR HST (2007) [13-2574-12]
1 Engine Hood Yellow 382076935/0
2 Yellow Injection Plate 125547105/0
8 Right Pin 125580012/0
9 Left Pin 125580013/0
10 Screw 112727356/0
11 Intake Separator 125730005/1
21 Stud 125510045/0
22 Plate 112436050/0
23 Right Plate 325547089/1
24 Left Plate 325547091/1
25 Screw 112731580/0
26 Muffler Protection 382869031/0
28 Screw 112734995/0
31 Dashboard, Right Profile 325599010/0
32 Left Dashboard Support 325599011/0
33 Screw 112815221/0
34 Washer 112521330/0
35 Nut 112154510/0
36 Dashboard 325120190/0
37 Screw 112728440/0
38 Screw 112735402/0
40 Card Protection 325600074/0
42 Plate 325547181/0
91 Central Cover, Yellow 325110325/0
93 Stake 125580020/2
94 Yellow Wheels Cover 325110323/0
97 Bracket 325755041/0
98 Screw 112728686/0
99 Screw 112735110/0
