Spare parts > STIGA > Lawn Tractor > ESTATE PRO 22 ESTATE PRO 22 (2007) [13-2561-62] > Body Work
Back to

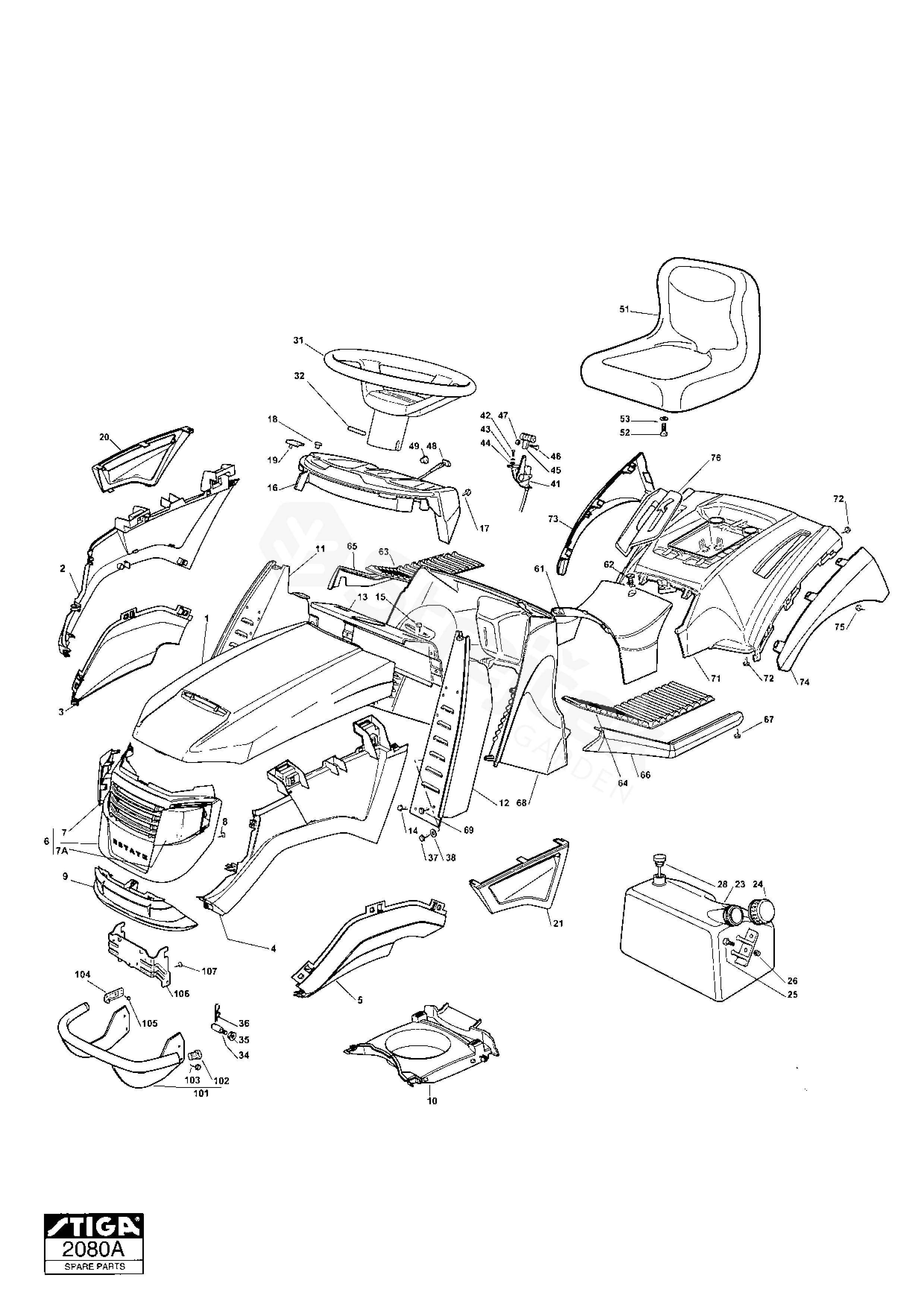

Body Work
ESTATE PRO 22 ESTATE PRO 22 (2007) [13-2561-62]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ESTATE PRO 22 (2007) [13-2561-62]
1 Upper Engine Hood, Yellow 325076866/0
2 Right Hood Upper Grey 325207131/0
3 Right Hood Lower Grey 325207137/0
4 Left Hood Upper Grey 325207133/0
5 Left Hood Lower Grey 325207136/0
6 Grey Hood, Front
Inkl. pos 7 - 7A 		382394610/0
7 Right Grill 325410876/0
9 Lower Grey Hood, Front 325076865/0
10 Conveyor 325108031/0
11 Right Dashboard Support 382785022/7
12 Left Dashboard Support 382785021/6
13 Central Dashboard Support 382785137/0
14 Screw 112735110/0
16 Red Dashboard 325120185/0
17 Screw 112728440/0
18 Cap 125120200/0
19 Grommet 125260000/0
20 Cover Rh-Grey 325207135/0
21 Bonnet Left Side Cover, Grey 325207134/0
23 Tank 325735111/3
24 Fuel Cap 125795000/1
25 Screw 112788910/0
26 Rivet 112500092/0
28 Fuel Level Indicator 125290001/0
31 Steering wheel 125961210/0
32 Elastic Pin 112620299/0
34 Pin 125510068/0
35 Nut 112293201/0
36 Cotter Pin 124487998/0
37 Screw 112731350/0
38 Washer 112521330/0
41 Throttle Cable
Kohler 20-22 		182000204/1
42 Screw 112788512/0
43 Grower 112581200/0
44 Washer 112521310/0
45 Knob 125394501/0
46 Screw 112726388/0
47 Nut 112290800/0
48 Choke Control 125090004/0
49 Cap 325120233/0
51 Seat 125722457/0
52 Screw 112793101/0
53 Grower 112583500/0
61 Cover (Hydro) 25110307/1
62 Stake 125580020/0
63 Right Footboard Cover 325110278/1
64 Left Footboard Cover 325110279/0
65 Right Profile Grey 325599000/0
66 Left Profil 325599001/0
68 Dashboard Support 325785231/1
71 Wheels Cover 325109754/1
72 Screw 112735402/0
73 Right Wheel Cover 325109753/0
74 Left Wheel Cover 325109752/0
75 Screw 112728686/0
76 Cover, Can Holder 325207129/0
101 Muffler Protection
Inkl. pos 102 - 103 		382869025/0
102 Cap 118737860/0
103 Screw 112734995/0
104 Plate 325547159/0
105 Screw 112731580/0
106 Engine Hood Support 325774301/1
107 Screw 112735403/0
7A Left Grill 325410877/0
