Spare parts > STIGA > Lawn Tractor > GRAND OVERLAND 24 E GRAND OVERLAND 24 E (2010) [2T1515281/VI] > Brake Controls
Back to

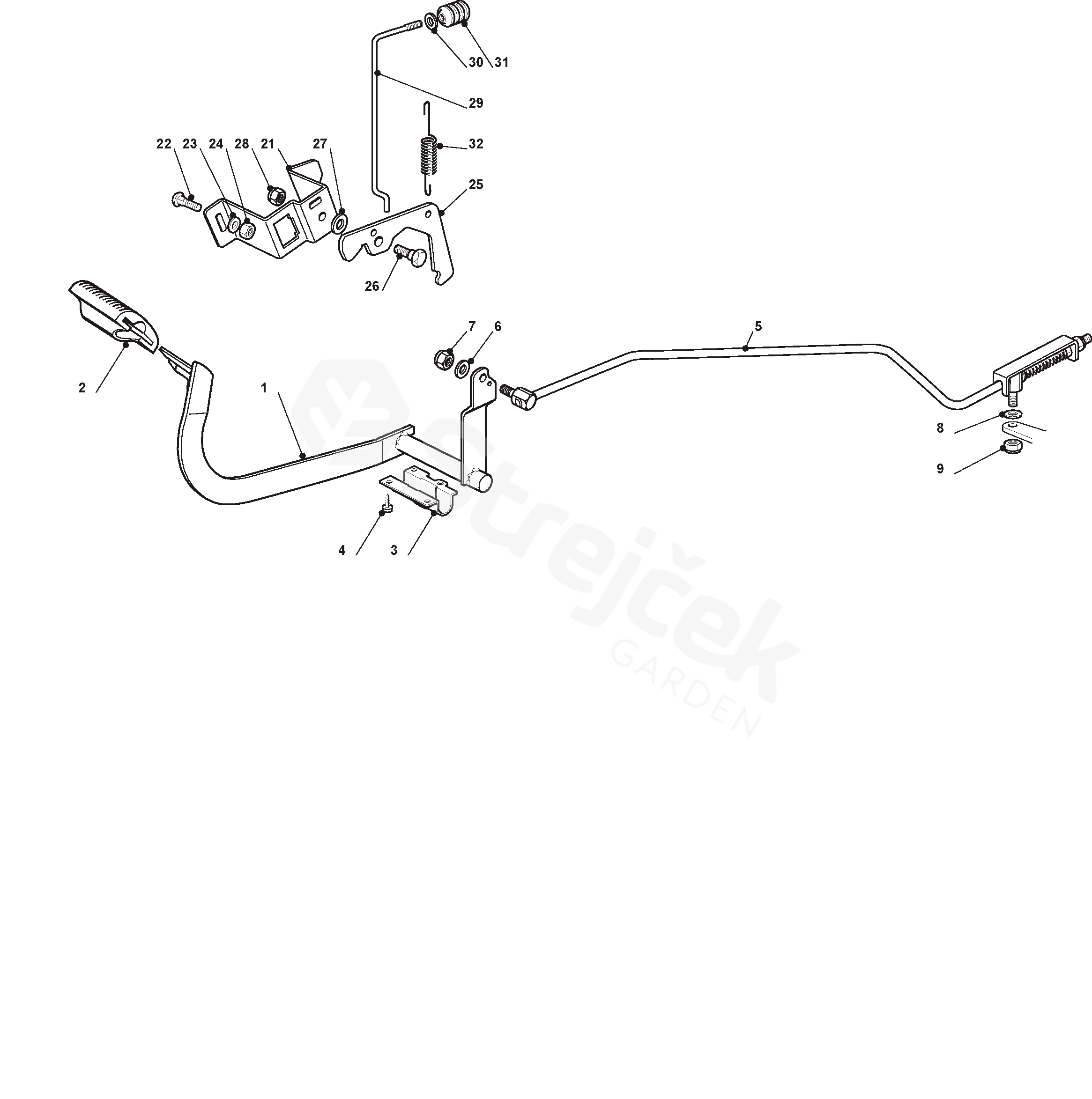

Brake Controls
GRAND OVERLAND 24 E GRAND OVERLAND 24 E (2010) [2T1515281/VI]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For GRAND OVERLAND 24 E (2010) [2T1515281/VI]
1 Pedal 382500011/2
2 Clamp Cover 125110267/0
3 Plate 325547081/1
4 Screw 112731601/0
5 Rod 382000554/1
6 Washer 112521350/0
7 Nut 112155000/0
8 Washer 112521350/0
9 Nut 112155000/0
21 Support 325785143/1
22 Screw 112815210/0
23 Washer 112523040/0
24 Nut 112154510/0
25 Hook 325253009/0
26 Fulcrum Pin 122524970/2
27 Antifriction Washer 325670011/0
28 Nut 112155000/0
29 Rod 125033047/0
30 Washer 112523020/0
31 Knob 125394509/1
32 Spring 125430213/0
