Spare parts > STIGA > Lawn Tractor > GARDEN 600 GARDEN 600 (1995) > Electrical System
Back to

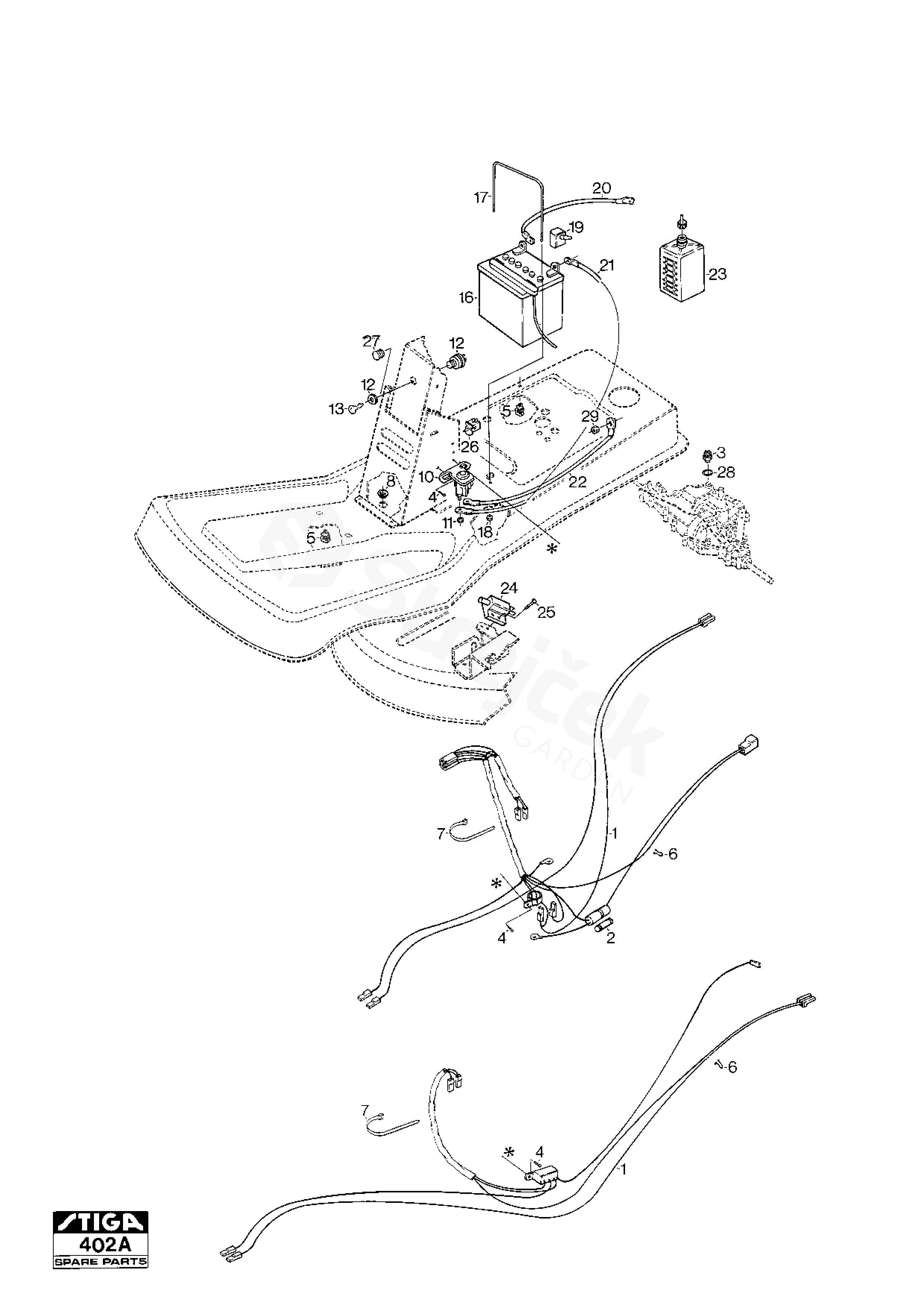

Electrical System
GARDEN 600 GARDEN 600 (1995)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For GARDEN 600 (1995)
1 Cables Ass.Y 1134-3625-01
3 Switch 9400-0105-02
4 Screw 9849-8013-16
5 Cable Holder 1134-3132-01
6 Cable Holder 1134-3204-01
7 Cable Holder 9579-0003-00
8 Grommet 1134-3203-01
10 Solenoid 1134-2962-01
11 Nut 9794-5131-02
12 Starter Switch Assy. 1134-1814-01
13 Ignition Key 1134-2848-01
16 Battery 1134-3205-01
17 Battery Holder 1134-3164-01
18 Nut 9747-0831-02
19 Guard Cap 1134-3202-01
20 Cable- black 1134-2042-02
21 Battery Cable 1134-0234-02
22 Cable 1134-2167-01
23 Battery Acid 1134-3300-01
24 Switch 1134-3399-02
25 Screw 9849-8013-16
26 Switch 1134-3156-01
28 Washer 9695-0011-00
29 Nut 9795-3531-02
