Spare parts > STIGA > Trimmer/Brushcutter > PRO SD4150 PRO SD4150 (1998) > Brush Cutter Drive Shaft
Back to

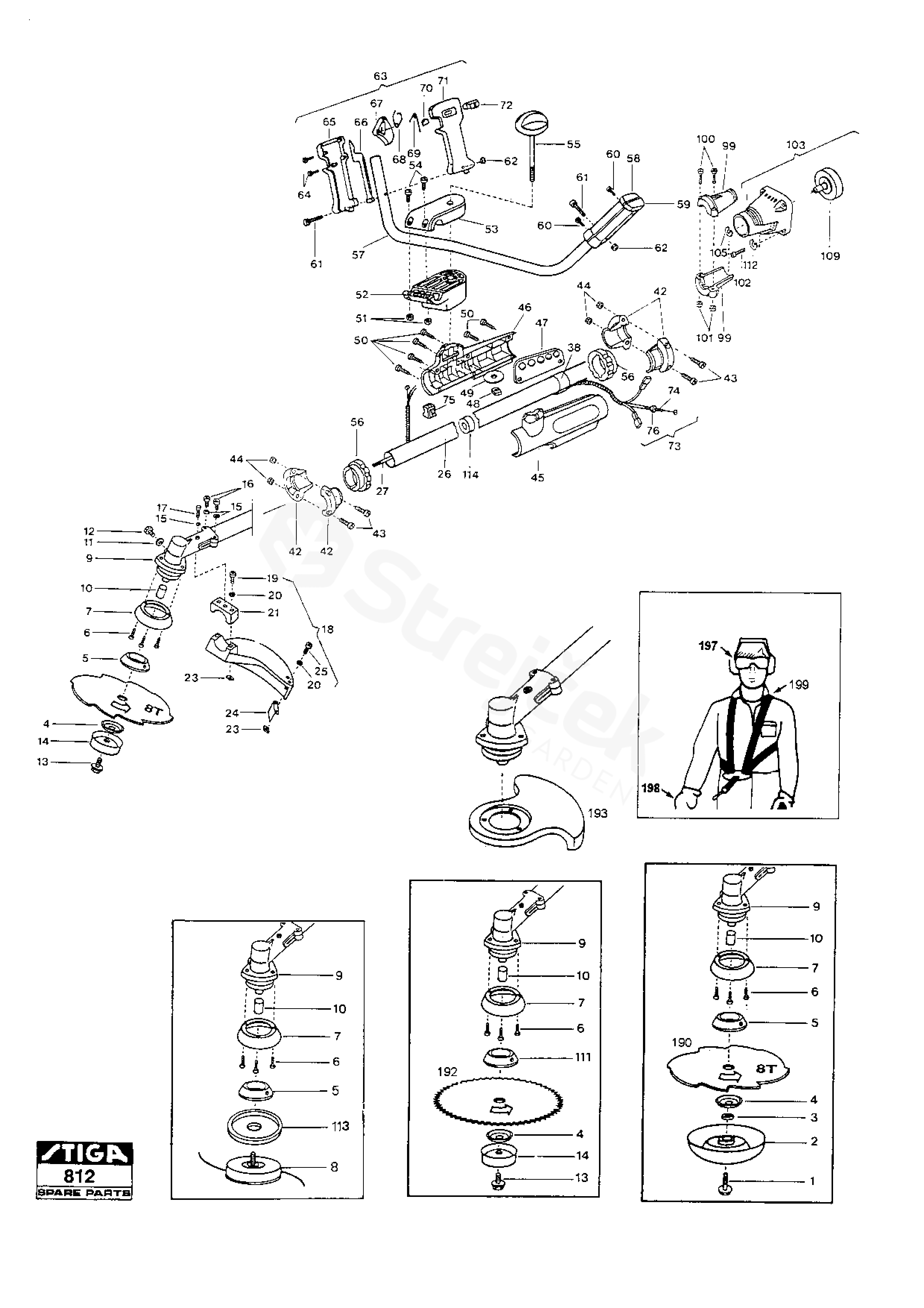

Brush Cutter Drive Shaft
PRO SD4150 PRO SD4150 (1998)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PRO SD4150 (1998)
1 Screw M229843
2 Idle Cup + Bearing M235986
3 Spacer M236323
4 Flange M229834
5 Flange M229833
6 Screw M240688
7 Protection M240767
8 Stringhead M240853
9 Gear Box M240824
10 Spacer M247272
11 Gasket M235906
12 Screw M240151
13 Screw M229842
14 Idle Cup M236596
15 Washer M236529
16 Screw M235804
17 Screw M236381
18 Guard assy M247209
19 Screw M235806
20 Washer M235248
21 Bracket M240870
23 Nut M236732
24 Cutter M224497-01
25 Screw M235802
26 Shaft-Outer M240830
27 Drive Shaft M229829
38 Ring-Retainer Rubber M229849
42 Clamp M240969
43 Screw M227563
44 Nut M235216
45 Bracket half M240942
46 Bracket half M240941
47 Hanger Bracket M240966
48 Nut M241003
49 Washer M241004
50 Screw M241002
51 Nut M235216
52 Handtagsfäste Undre M240967
53 Handtagsfäste Övre M240968
54 Screw M227563
55 Locking Knob M240971
56 Ring M240970
57 Handle M241010
58 Half Housing Right M229985
59 Half Housing Left M229984
60 Screw M240833
61 Screw M235804
62 Nut M235216
63 Handle Assy + Cable M240504
64 Screw M240833
65 Handle Half Right M227764
66 Safety Trigger M229820
67 Trigger M229818
68 Trigger Spring M240091
69 Spring Trigger M229973
70 Throttle Latch M229823
71 Handla Half Left M227763
72 Button M229824
73 Throttle Cable M240505
74 Throttle Cable M240506
75 Switch M236394
76 Nut M235912
99 Clamp Joint D30 M240935
100 Screw M235530
101 Nut M235216
102 Screw M235214
103 Clutch Housing Assy M240905
105 Seeger Ring M236378
109 Clutch Drum M227284
111 Flange-Saw Blade M240936
112 Washer M236528
113 Flange M241155
114 Bushing M236383
190 Blade
8T - 10" 		M236713B
192 Blade
22T - 9" 		M240998
193 Guard-Metal M240553
197 Face protector M228988
198 Gloves M246522
199 Harness M240892
