Spare parts > STIGA > Trimmer/Brushcutter > SB 27 J SB 27 J (2007) [19-6116-12] > Engine
Back to
Engine
SB 27 J SB 27 J (2007) [19-6116-12]

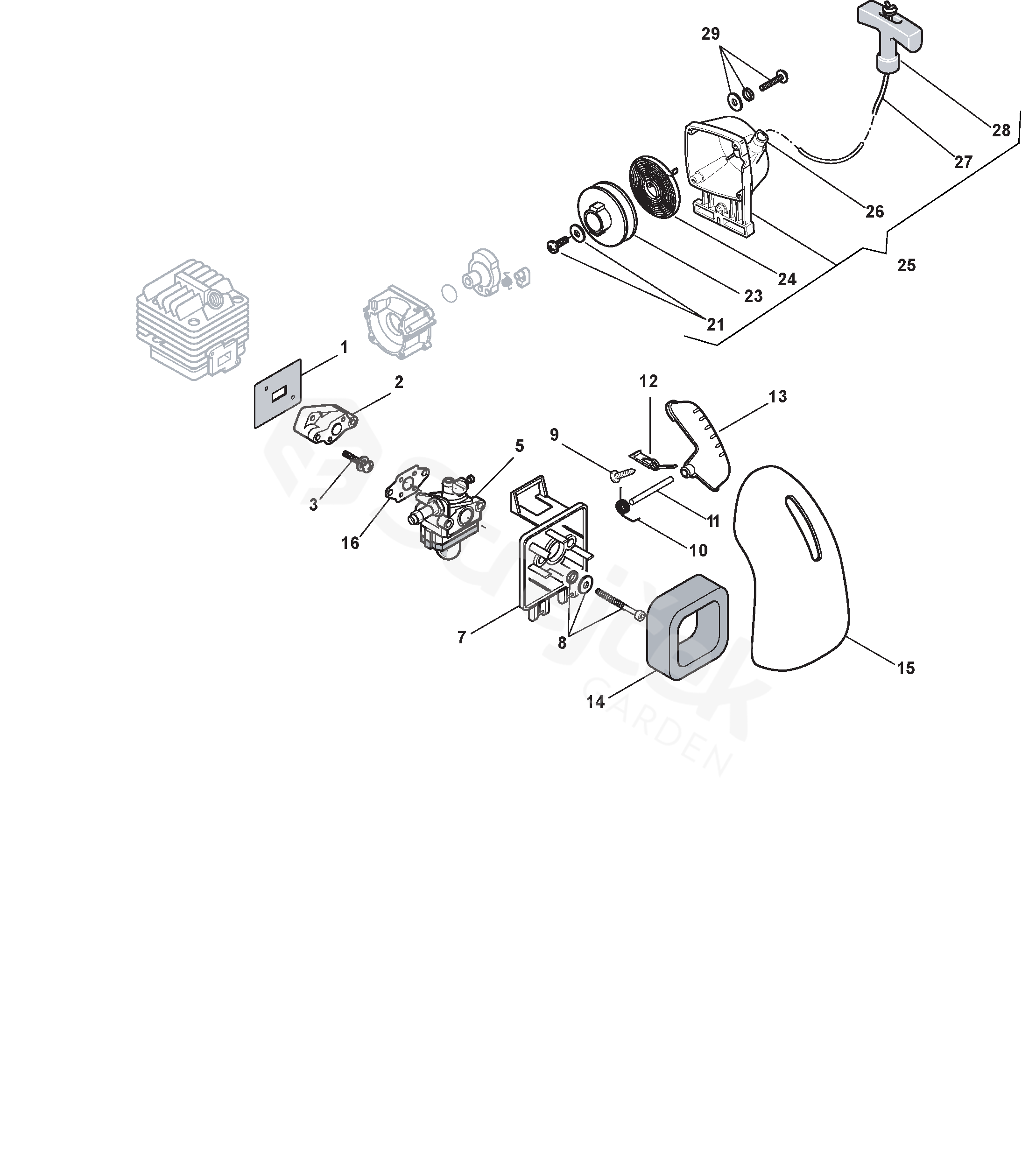

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SB 27 J (2007) [19-6116-12]
1 Intake Manifold Gasket 6981011
2 Intake Manifold 6981010
3 Outfit, Screws 6981266
5 Carburettor 123054010/0
7 Air Filter Holder 6981019
8 Outfit, Screws 6981105
9 Screw 6981269
10 Spring 6981045
11 Pin 6981046
12 Retainer 6981047
13 Button 6981107
14 Air Filter 6981020
15 Yellow Filter Cover 6981120
16 Intake Carburator Gasket 6981018
21 Screw 6981099
23 Starter Pulley 6981026
24 Spring 6981025
25 Starter Assy 6981024/1
26 Rope Guide 6981028
27 Starter cord 6981029
28 Starter Handle 6981027
29 Outfit, Screws 6981116
