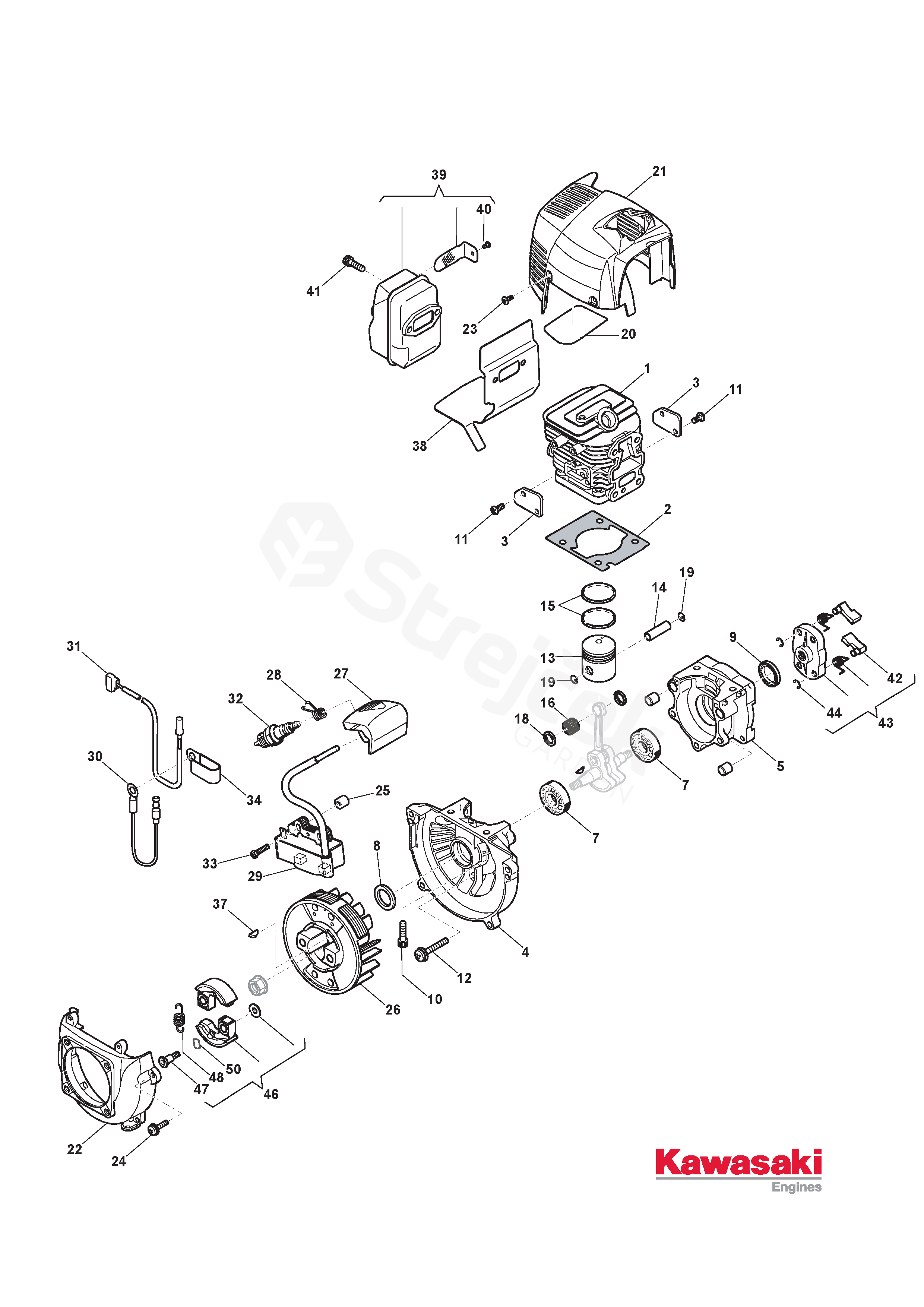

SBC 627 K SBC 627 K (2016)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SBC 627 K (2016)

1	Cylinder	118801961/0
2	Cylinder Gasket	118801773/0
3	Plate	118801814/0
4	Crankcase	118801820/0
5	Crankcase	118801981/0
7	Bearing	119216039/0
8	Oil seal 12X22X4.5 GS	118801920/0
9	Seal Ring	118801994/0
10	Screw	2135030
11	Screw	123878020/0
12	Screw	2135050
13	Piston	118801976/0
14	Piston Pin	118801796/0
15	Piston Ring	118801801/0
16	Bearing	118801806/0
18	Spacer	118801907/0
19	Washer, Piston Pin	118801911/0
20	Pad	118801988/0
21	Yellow Cylinder Cover	118802004/0
22	Housing	118801895/0
24	Screw	2135040
25	Insulator	118801830/0
26	Flywheel	118801837/0
27	Spark Plug Cover	118801842/0
28	Spark Plug Spring	3657050
29	Electronic Coil	118801846/0
30	Earth Cable	118801851/0
31	Coil-Switch Cable	118801986/0
32	Spark Plug	3210024
33	Screw	2132510
34	Clamp	118801943/0
37	Flywheel Key	3151010
38	Muffler Gasket	118801774/0
39	Muffler	118801868/0
40	Screw	118801906/0
42	Pawl	118801812/0
43	Starter Pulley	118801990/0
44	Snap Ring	118801912/0
46	Clutch Ass.Y	118801810/0
47	Pin	118801917/0
48	Spring	118801935/0
50	Washer	118802002/0
