Spare parts > STIGA > Trimmer/Brushcutter > SBC 653 KD SBC 653 KD (2015) [288421102/14] > Transmission
Back to

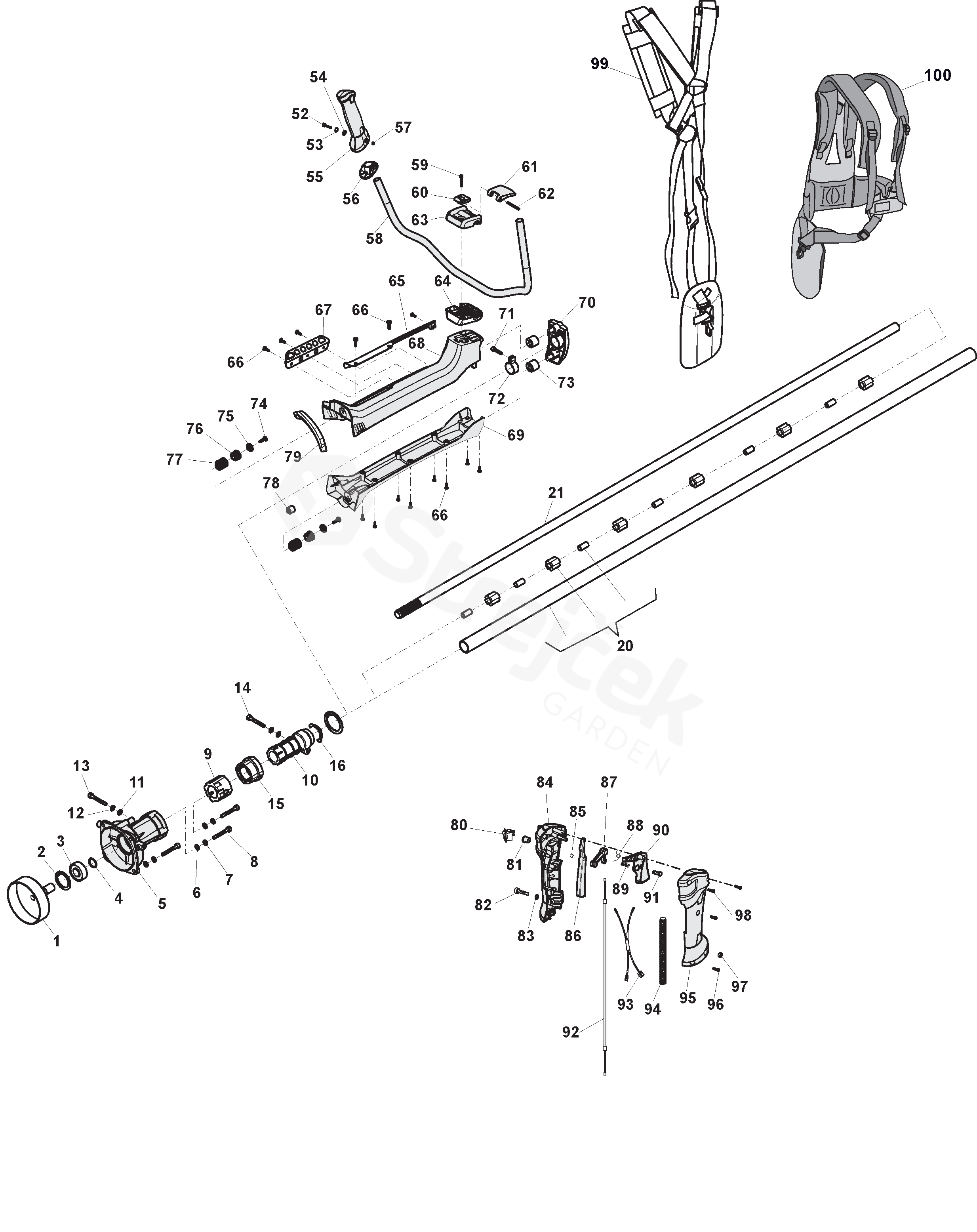

Transmission
SBC 653 KD SBC 653 KD (2015) [288421102/14]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SBC 653 KD (2015) [288421102/14]
1 Clutch Drum 118802495/0
2 Seeger 112610800/0
3 Bearing 119216048/0
4 Seeger 112609200/0
5 Output Block 118802497/0
8 Screw 2132590
9 Rear Shock Absorber 118802553/0
10 Tube 118802554/0
11 Washer 112521330/0
13 Screw 112727794/0
14 Screw 2132180
15 Front Shock Absorber 118802552/0
16 Tube 118802555/0
20 Transmission Tube Ass.Y 118803479/0
21 Transmission Shaft 118802457/0
52 Screw 2122520
53 Washer 112521320/0
55 Left Handgrip 118802563/0
56 Handgrip Support 118802564/0
57 Nut 112291000/0
58 Handlebar 118802482/0
59 Screw 118802577/0
60 Locking briquetting 118802575/0
61 Locking handle 118802574/0
62 Shaft 118802576/0
63 Handle Cover 118802572/0
64 Handle 118802573/0
65 Cable Sheath 118802507/0
66 Screw 112728440/0
67 Plate 118802567/0
68 Upper Guard, Yellow 118802505/0
69 Lower Guard 118802506/0
70 Shock Absorber 118802566/0
71 Screw 112728519/0
72 Locking hoop 118802565/0
73 Bumper 118802569/0
74 Screw 112731601/0
75 Washer 2312150
76 Bumper 118802570/0
77 Spring 118802568/0
78 Shock Absorber 118802571/0
79 Grommet 118802527/0
80 Switch 118800202/0
81 Button 118802524/0
82 Screw 2123110
84 Handle Cover, Left Part 118802522/0
85 Torsion Spring 118802562/0
86 Safety Lever 118802561/0
87 Adjustment Lever 118802559/0
88 Torsion Spring 118802560/0
89 Spring 118802525/0
90 Trigger 118802523/0
91 Pin 118802526/0
92 Throttle Cable 118802456/0
93 Earth Cable 118802598/0
94 Conductor casing 118802484/0
95 Handle Cover, Right Part 118802521/0
96 Screw 112735101/0
97 Nut 112154330/0
98 Screw 123878020/0
99 Harness 118801312/1
100 Harness 123046002/0
