Spare parts > STIGA > Chainsaw > SP 526 SP 526 (2016) [240521502/S17] > Engine - Carburetor
Back to

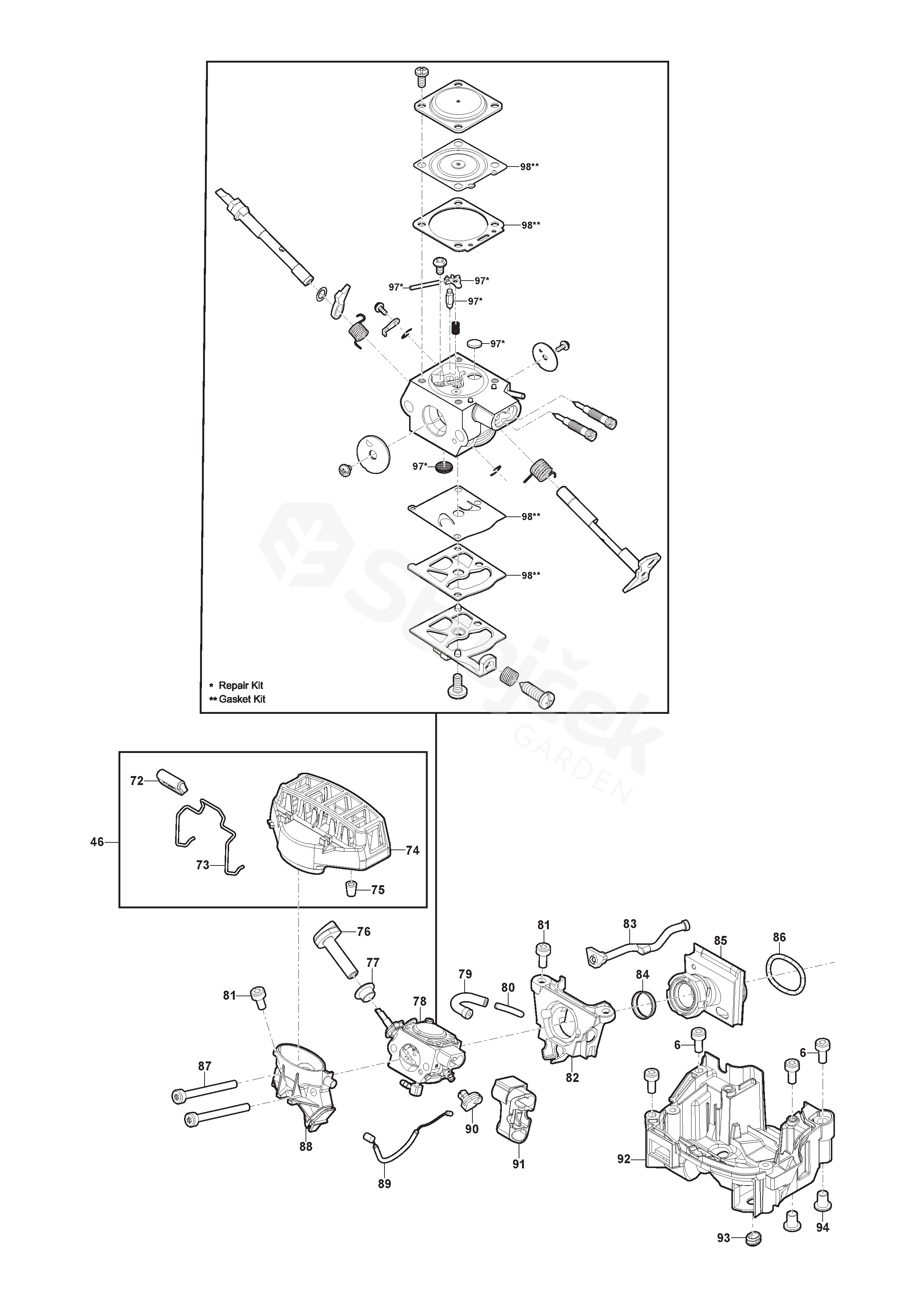

Engine - Carburetor
SP 526 SP 526 (2016) [240521502/S17]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SP 526 (2016) [240521502/S17]
6 Screw 2135040
46 Air Filter Assy 118804926/0
72 Knob 118804282/0
73 Air Filter Lock 118804281/0
74 Air Filter 118804280/0
75 Shock Absorber 118804279/0
76 Choke Knob 323315115/0
77 Choke Bushing 118804278/0
78 Carburettor 118804927/0
79 Vacumm tube 118804276/0
80 Copper Tube 118804275/0
81 Screw 112731601/0
82 Carburettor Support 323784017/0
83 Pressure Tube 118804274/0
84 Gasket 118804273/0
85 Air Intake Manifold 118804271/0
86 Spring ring 118804264/0
87 Screw 2135250
88 Air Filter Base 118804263/0
89 Throttle Cable 118804262/0
90 Cable Reel 118804261/0
91 Guide 118804260/0
92 Carter 118804259/0
93 Grommet 118804258/0
94 Bushing 118804257/0
97 Carburetor Repair Kit 118804526/0
98 Carburetor Gasket Kit 118804527/0
