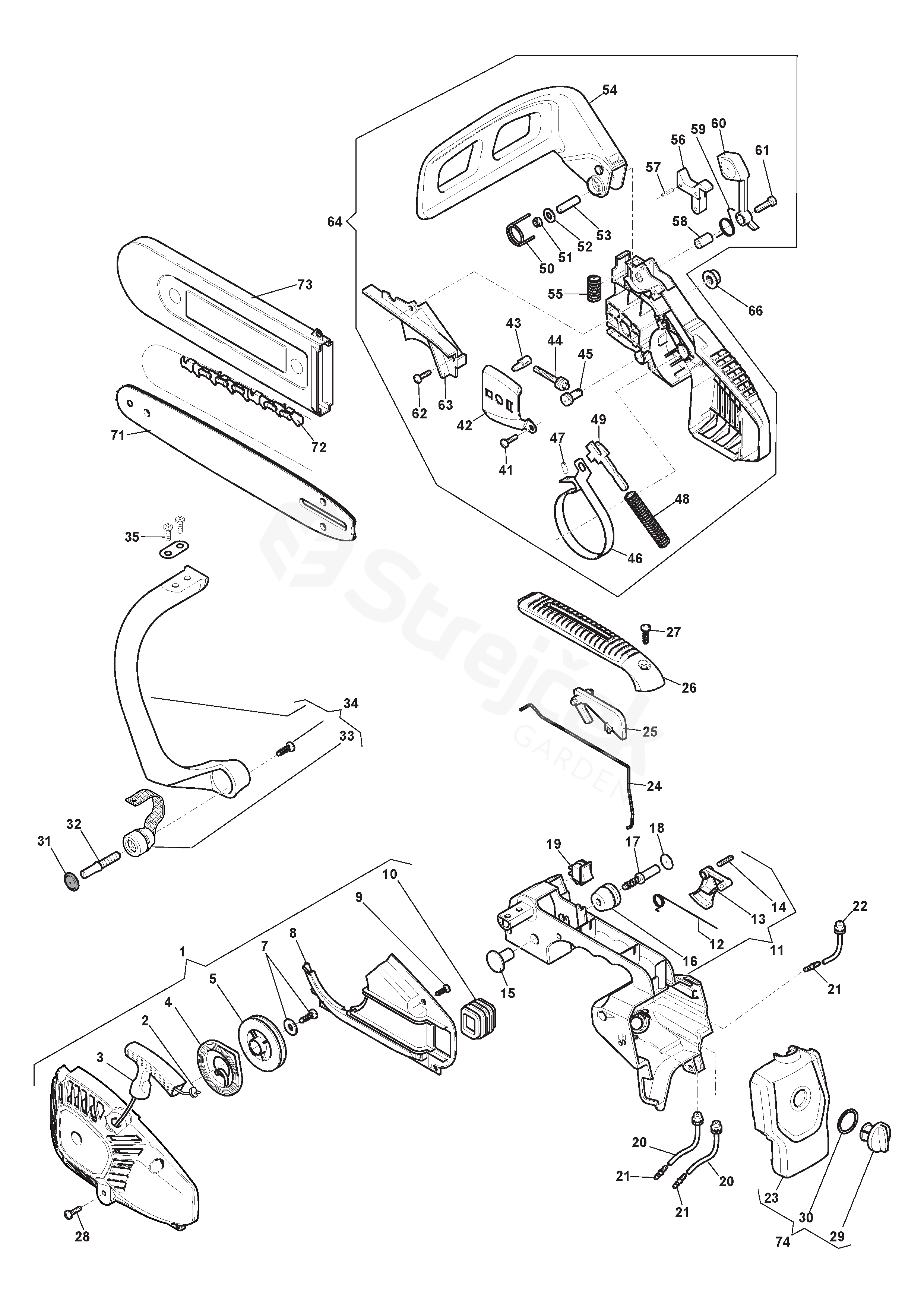

Spare parts - Partlist - SPR 255 SPR 255 (2014) - Housing

Everything for your machines

SPR 255 SPR 255 (2014)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SPR 255 (2014)

1	Starter Assy Yellow	118801599/0
2	Starter cord	123234005/0
3	Starter Handle	123300013/0
4	Starter Spring	123430594/0
5	Starter Pulley	123604011/0
7	Screw	123878087/0
8	Air Conveyor	123107504/0
9	Screw	123878088/0
10	Grommet	123275026/0
11	Handle Assy	183300023/0
12	Spring	123430599/0
13	Throttle Lever, Yellow	123315095/0
14	Elastic Pin	123510098/0
15	Cap, Black	123790021/0
16	Shock Absorber	123275027/0
17	Screw	123878093/0
18	Cap, Black	123790022/0
19	Switch To 31-August-2017	123303006/0
20	Pipe	123867021/0
21	Pipe Connection	123650005/0
22	Pipe Mix	123867022/0
23	Rear Cover	118801590/0
24	Throttle Rod	123835002/0
25	Safety lever, Yellow	123315096/0
26	Handle, Upper Part,Yellow	118801582/0
27	Screw	123878008/0
28	Screw	123878008/0
29	Knob	123593507/0
30	Washer	123657012/0
31	Cap, Black	123790022/0
32	Screw	123878093/0
33	Shock Absorber	123275027/0
34	Handle	183105000/0
35	Screw	112728450/0
41	Screw	123878088/0
42	Bar Plate	123311010/0
43	Nut	123796008/0
44	Screw	123878092/0
45	Pin	123510097/0
46	Brake Band	123448005/0
47	Needle	123665004/0
48	Brake Spring	123430598/0
49	Lever	123315094/0
50	Spring	123430595/0
51	Nut	123120009/0
52	Washer	123657013/0
53	Bushing	123044219/0
54	Hand Guard	118801594/0
55	Spring	123430597/0
56	Chain Brake Lever	183315052/0
57	Needle	123665003/0
58	Bushing	123044220/0
59	Spring To 31-August-2017	123430596/0
60	Balance Weigth	123080002/0
61	Screw	123878090/0
62	Screw	123878088/0
63	Brake Spring Cover	123109578/0
64	Brake Assy, Yellow Euro-1	118801591/0
66	Nut	123120010/0
71	Guide Bar 10"-3/8"-0,050" 10"- 3/8	123900360/0
72	Chain 10inch 10"- 3/8	118801742/0
73	Chain Cover	323085000/0
74	Air Filter Cover Assy, Black Black	118804967/0
