Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Hedgecutter
>
SH 180 K SH 180 K (2006) [19-5124-11]
>
Cutting unit
Back to
SH 180 K
SH 180 K (2006) [19-5124-11]

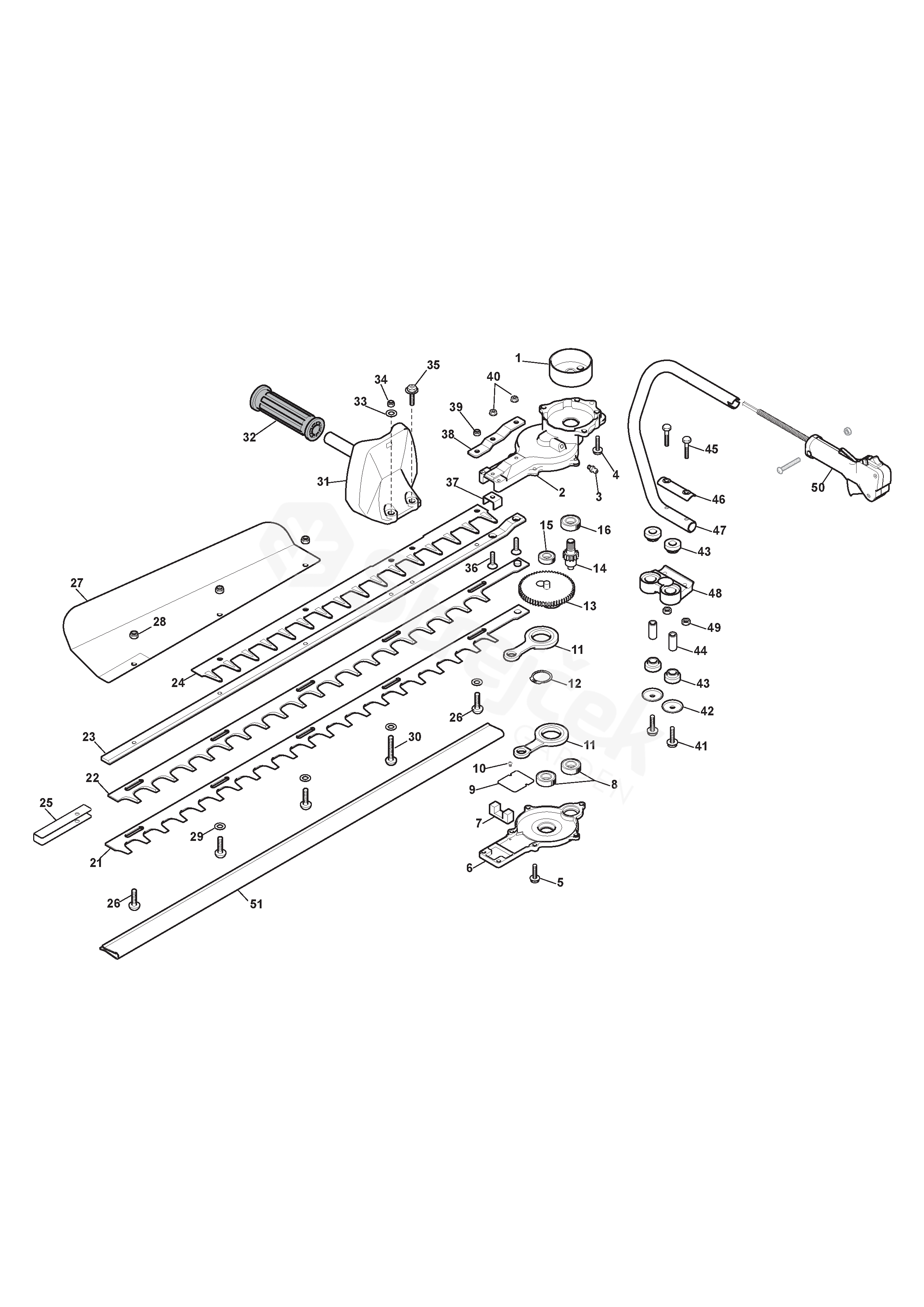

Cutting unit
SH 180 K
SH 180 K (2006) [19-5124-11]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
SH 180 K (2006) [19-5124-11]
1
Clutch Drum Assy
6990122
2
Upper Case
6990199
3
Grease Dispenser
6990153
4
Screw
6990205
5
Screw
6990141
6
Lower Case
6990200
7
Gasket
6990202
8
Needle Bearing
6990151
9
Shoe
6990183
10
Screw
6990139
11
Connecting Rod
6990157
12
Snap Ring
6990150
13
Sprocket
6990186
14
Pinion
6990193
15
Needle Bearing
6990151
16
Needle Bearing
6990152
21
Bottom Blade
6990182
22
Top Blade
6990181
23
Blade Holder
6990192
24
Blade Guard
6990198
25
Blades Holder Plate
6990180
26
Screw
6990196
27
Deflector
6990184
28
Nut
6990146
29
Washer
6990121
30
Screw
6990197
31
Right Handle
6990194
32
Knob
6990179
33
Washer
6990210
34
Nut
6990146
35
Screw
6990207
36
Screw
6990204
37
Retainer
6990128
38
Plate
6990201
39
Nut
6990146
40
Nut
6990209
41
Screw
6990206
42
Cap
6990191
43
Grommet
6990189
44
Spacer
6990188
45
Screw
6990211
46
Handle Fixing Plate
6990190
47
Handle Tube
6990203
48
Handlebar Support Ass.Y
6990187
49
Nut
6990208
50
Hind Handle Assy
6990212
51
Blade Cover
6990195
