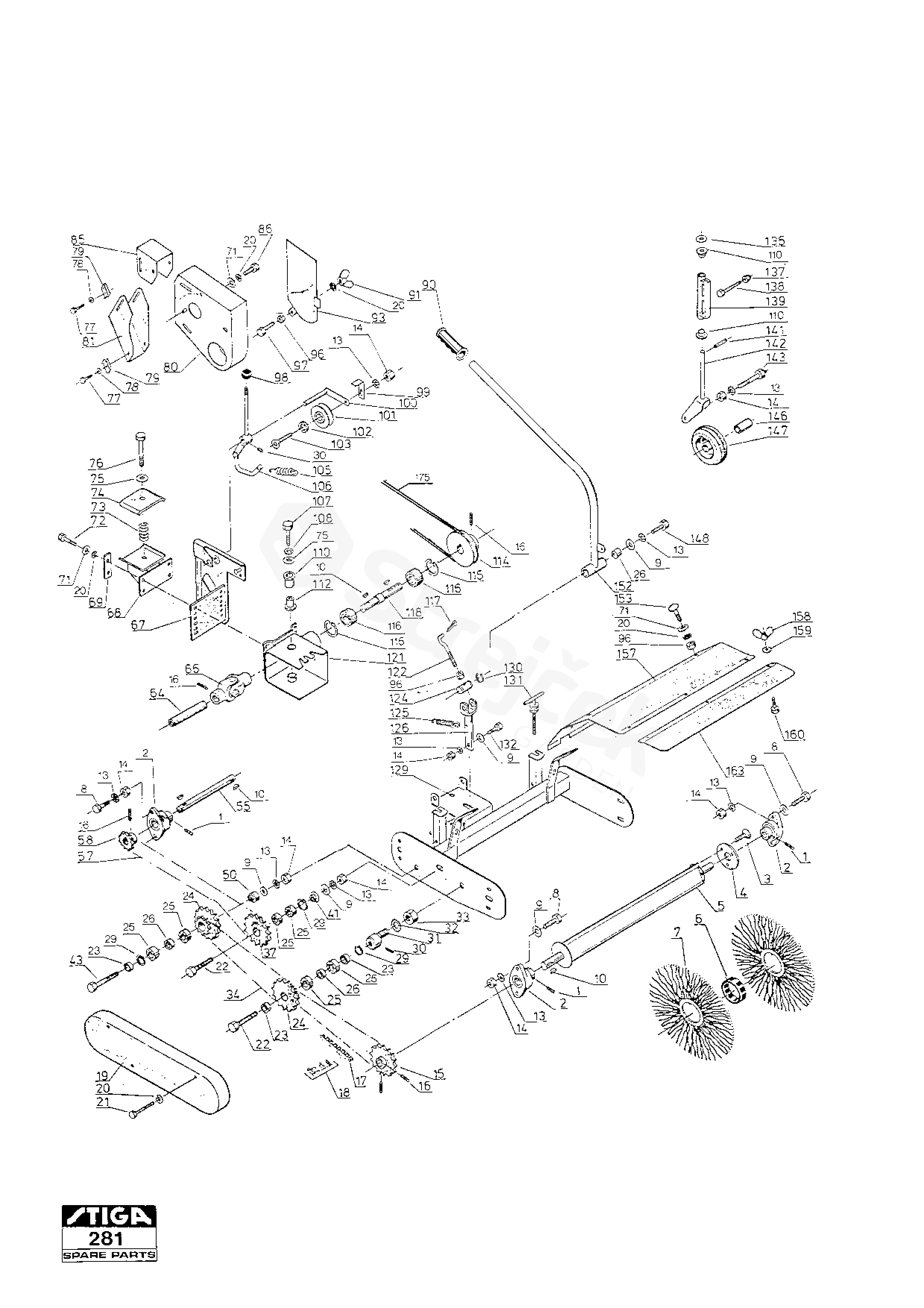

SWEEPER SWEEPER (1996)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SWEEPER (1996)

1	Screw	9907-0508-16
2	Flange Bearing	1489-0192-01
3	Screw	1489-0180-01
4	Washer	1489-0179-01
5	Brush Shaft	1489-0346-01
6	Spacer	1489-0178-01
7	Brush	1489-0327-01
8	Screw	9997-1025-16
9	Washer	9699-0035-02
10	Key	1489-0182-01
13	Washer	9678-0011-02
14	Nut	9799-1031-02
15	Sprocket	1489-0187-01
16	Screw	9915-0808-15
17	Chain	1489-0347-01
18	Chain Lock	1489-0191-01
19	Chain Guard	1489-0348-01
20	Lock washer	9678-0009-02
21	Screw	9997-0865-12
22	Screw	9997-1040-12
23	Spacer	1489-0360-01
24	Sprocket	1489-0358-01
25	Ball Bearing	9549-0004-00
26	Spacer	1489-0185-01
29	Washer	1489-0184-01
30	Screw	9915-0606-15
31	Tappet	1489-0190-01
32	Starlock	9678-0014-02
33	Nut	9799-1631-02
34	Chain	1489-0329-01
37	Sprocket	1489-0349-01
41	Flangebushing	1489-0350-01
43	Screw	9997-1065-12
50	Spacer	1489-0351-01
55	Shaft	1489-0352-01
57	Chain	1489-0353-01
58	Sprocket	1489-0188-01
64	Tube	1489-0211-01
66	Universal joint	1489-0209-01
67	Clutch Plate	1489-0330-01
68	Console	1489-0331-01
69	Bracket	1489-0344-01
71	Washer	9699-0028-02
72	Screw	9997-0830-16
73	Spring	1489-0393-01
74	Plate	1489-0204-01
75	Washer	9699-0037-02
76	Screw	9997-1270-12
77	Screw	9847-8013-16
78	Washer	9699-0024-02
79	Clip	1489-0414-01
80	Belt Guard	1489-0334-01
81	Belt Guard	1489-0333-01
85	Belt Guard	1489-0335-01
86	Screw	9997-0812-16
90	Grip	1482-0170-01
91	Nut	9751-0821-02
93	Cover	1489-0336-01
96	Nut	9799-0831-02
97	Screw	9997-0825-16
98	Knob	1489-0422-01
100	Clutch shaft	1489-0338-01
101	Tension Roller	1489-0400-01
102	Bushing	1489-0399-01
103	Screw	1489-0405-01
105	Belt Guide	1489-0337-01
106	Clutch arm	1489-0332-01
107	Screw	9997-1225-16
108	Lock washer	9678-0012-02
110	Flangebushing	1489-0320-01
112	Nut	1489-0340-01
114	Pulley	1489-0359-01
115	Lock Ring	1489-0411-01
116	Ball Bearing	9549-0027-00
117	Split pin	9599-0067-02
118	Shaft	1489-0202-01
121	Housing	1489-0341-01
122	Adjustment Lever	1489-0328-01
124	Pivot Pin	1489-0342-01
125	Spring	1482-0250-01
126	Pawl	1489-0343-01
129	Frame	1489-0354-01
130	CLock ring	9650-0015-04
131	Spindle	1489-0355-01
132	Screw	9997-1030-16
135	Washer	9699-0102-01
137	Nut	9747-0831-02
138	Screw	9997-0845-12
139	Tube	1489-0356-01
141	Pin	1489-0412-01
142	Wheel holder	1489-0194-01
143	Screw	1489-0196-01
146	Bushing	1489-0321-01
147	Support Wheel	1489-0195-01
148	Screw	9997-1020-16
152	Handle Bar	1489-0345-01
153	Screw	9898-0820-16
157	Mud guard	1489-0357-01
158	Nut	9751-0631-02
159	Lock washer	9678-0008-02
160	Screw	9997-0612-16
163	Guard extension	1489-0361-01
175	V-Belt För hjul 15"	9585-0065-00
