Spare parts > STIGA > Snowthrowers > 1381 HST 1381 HST (2011) [18-2852-31] > Drive
Back to

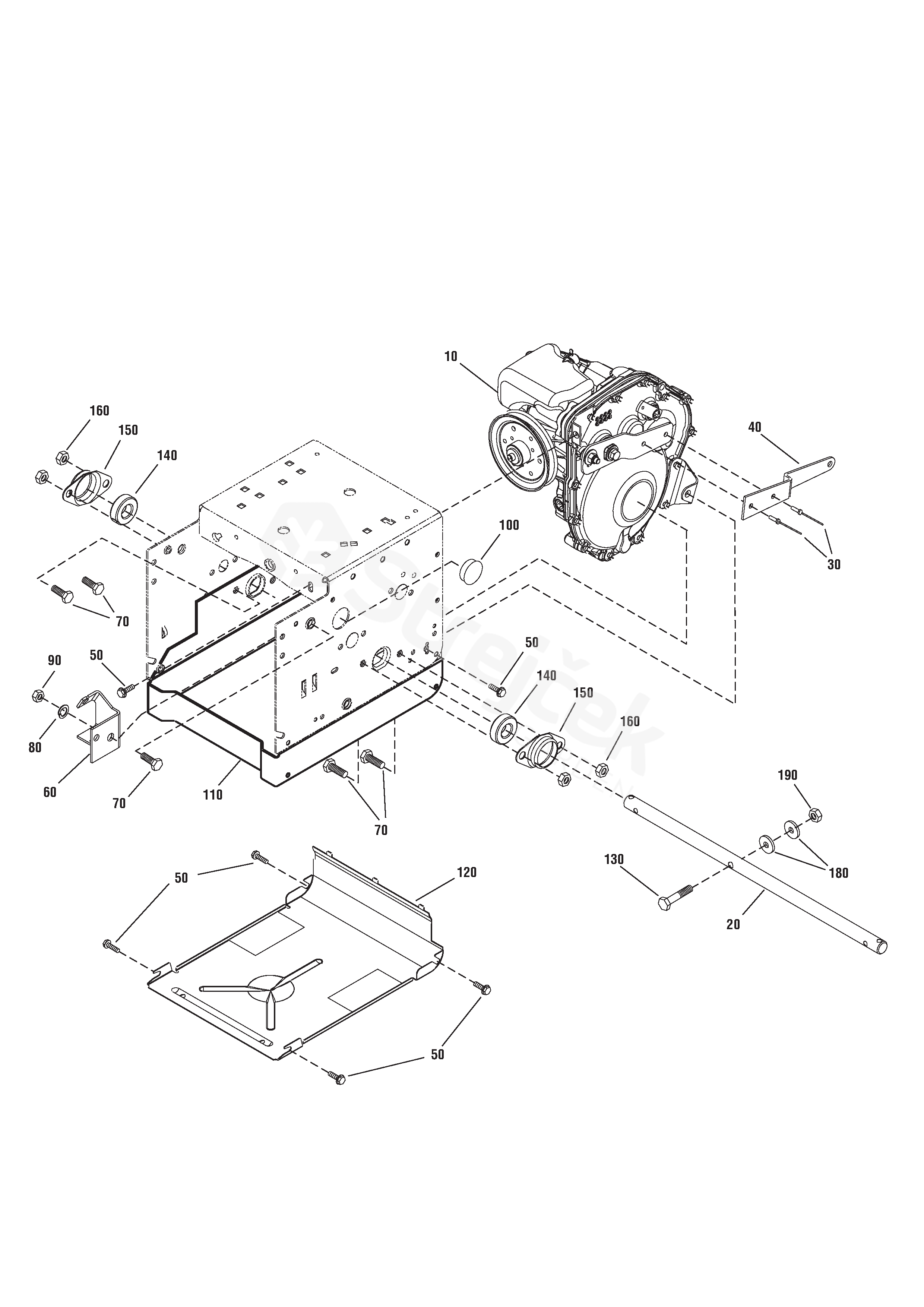

Drive
1381 HST 1381 HST (2011) [18-2852-31]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 1381 HST (2011) [18-2852-31]
10 Transmission assy
Hydro Gear 317-0410 		1812-2221-01
20 Axle 1812-2225-01
30 Pop Rivet 1812-2260-01
40 Control Extension Arm 1812-1806-01
50 Screw 1812-2250-01
60 Drive Cable Bracket 1812-1803-01
70 Screw 9988-3719-16
80 Washer 9683-0035-02
100 Plug 1812-1825-01
110 Frame 1812-2456-01
120 Bottom Panel 1812-2450-01
130 Screw
1/4" 		1812-1755-01
140 Ball Bearing 1812-1920-01
150 Bearing Retainer 1812-1919-01
160 Nut 9743-3721-32
180 Washer 1812-2248-01
190 Nut
1/4" 		9743-3521-32
