SNOW CUBE SNOW CUBE (2008) [18-2813-28]
>

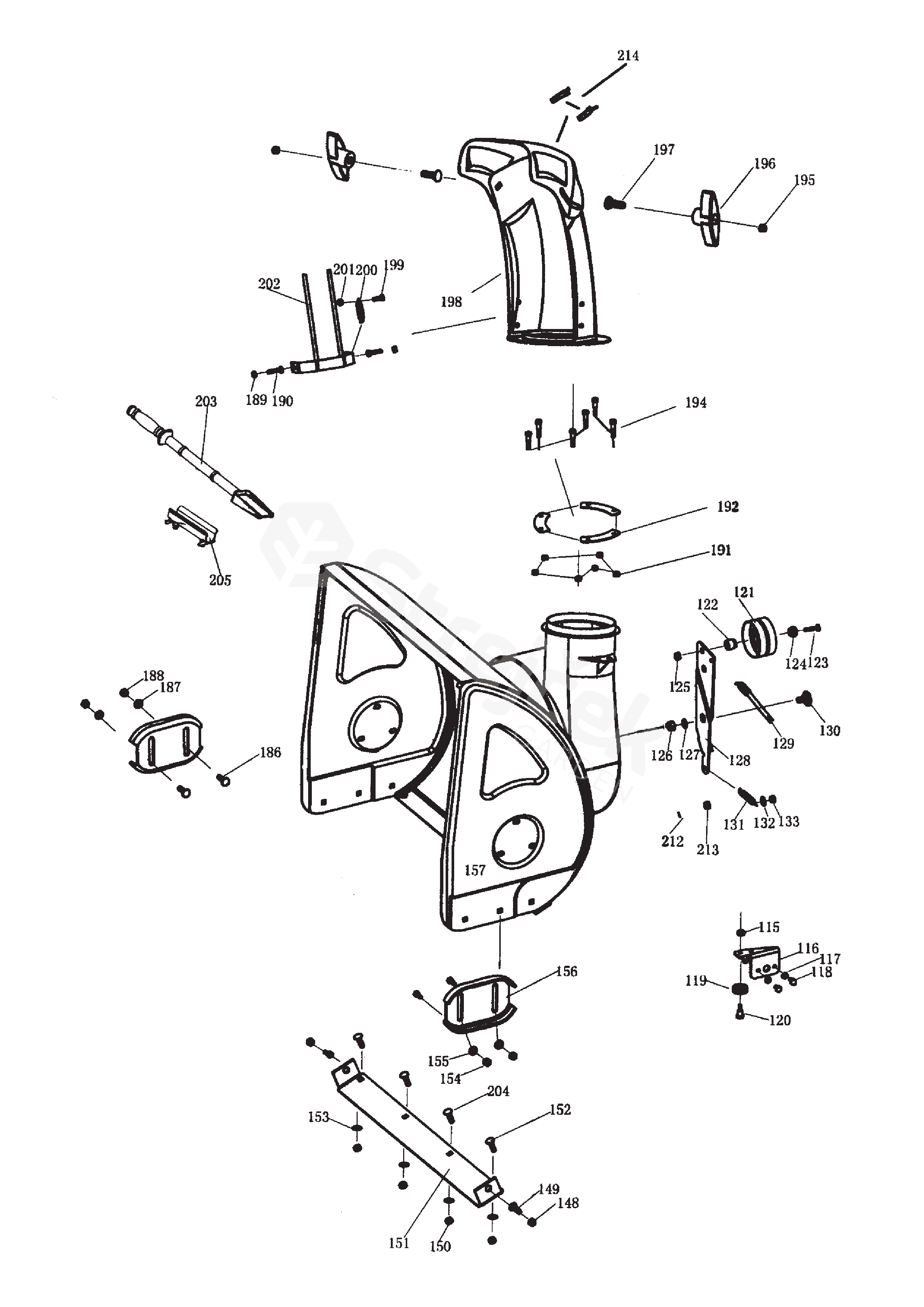

Housing, chute
Back to
SNOW CUBE
SNOW CUBE (2008) [18-2813-28]
Housing, chute
SNOW CUBE
SNOW CUBE (2008) [18-2813-28]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
SNOW CUBE (2008) [18-2813-28]
115
Lock Nut
9747-0631-02
116
Bracket-Yellow
1811-2438-01
117
Washer
9699-0025-02
118
Screw
9997-0610-16
119
Wire Pulley
1811-2440-01
120
Shoulder Bolt
1811-2476-01
121
Tension Roller W.Bearing
1811-2425-01
122
Spacer
1811-2426-01
123
Screw
9997-0845-12
124
Washer
1811-2427-01
125
Nut
9747-0831-02
126
Lock Nut
9747-1031-02
127
Washer
9699-0035-02
128
Tension Arm
1811-2448-01
129
Spring
1811-2457-01
130
Screw
1811-2475-01
131
Spring
1811-2462-01
132
Washer
9699-0028-02
133
Nut
9747-0831-02
148
Nut
9747-0831-02
149
Screw
9898-0820-16
150
Nut
9747-0831-02
151
Shave Plate (56 Cm)
1811-2548-01
152
Screw
9898-0820-16
153
Washer
9699-0056-02
154
Nut
9747-0831-02
155
Washer
9699-0056-02
156
Skid
1811-2568-01
157
Auger Housing, Yellow
1811-2488-01
186
Screw
9898-0820-16
187
Washer
9699-0056-02
188
Nut
9747-0831-02
189
Lock Nut
9747-0631-02
190
Screw
9997-0616-16
191
Lock Nut
9747-0631-02
192
Washer
1811-2445-01
194
Screw
1811-2551-01
195
Nut
9747-0831-02
196
Knob
1811-2498-01
197
Screw
9898-0825-16
198
Chute
1811-2571-01
199
Screw
9997-0620-16
200
Spring
1811-2461-01
201
Lock Nut
9747-0631-02
202
Chute guard
1811-2432-01
203
Cleaner Stick
1811-2500-01
204
Screw
9898-0820-16
205
Cleaner Stick Bracket
1811-2572-01
214
Rubber Block
1811-2547-01
