STIGA
>
Snowthrowers
>
SNOW CUBE SNOW CUBE (2008) [18-2813-28]
>

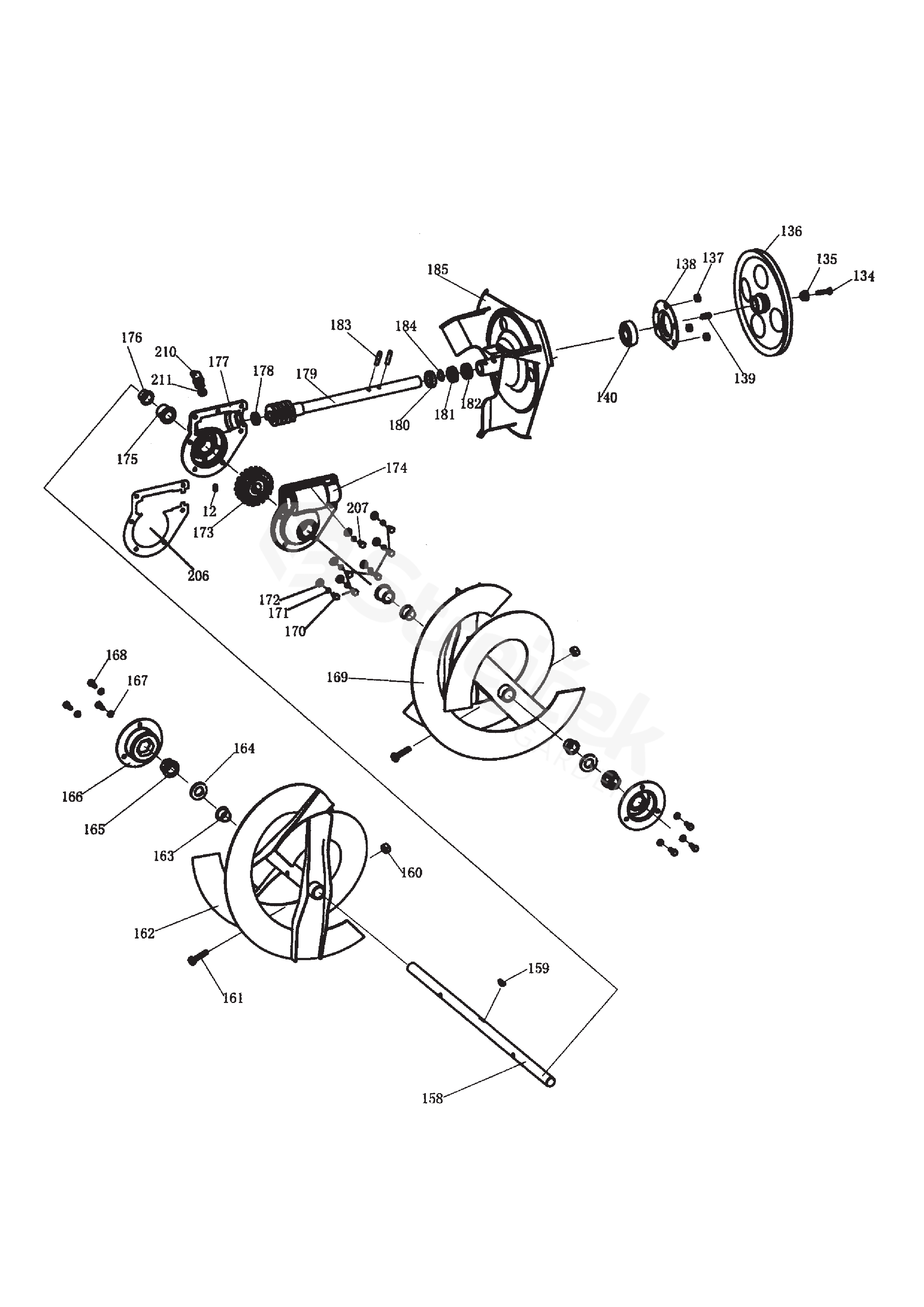

Gear case, auger
Back to
SNOW CUBE
SNOW CUBE (2008) [18-2813-28]
Gear case, auger
SNOW CUBE
SNOW CUBE (2008) [18-2813-28]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
SNOW CUBE (2008) [18-2813-28]
12
Screw
9997-0510-16
134
Screw
9997-0820-16
135
Washer
9699-0056-02
136
Belt Pulley
1811-2464-01
137
Nut
9747-0831-02
138
Bearing Cover
1811-2422-01
139
Key
9600-0170-00
140
Bearing
1811-2415-01
158
Auger Shaft
1811-2447-01
159
Key
1811-2416-01
160
Nut
9747-0831-02
161
Shear Bolt Kit
Inkl. pos 160
1811-9012-01
162
Auger-Lh
1811-2480-01
163
Shaft Bushing
1811-2443-01
164
Flat washer
1811-2418-01
165
Shaft Bushing
1811-2444-01
166
Bearing Cover
1811-2449-01
167
Washer
9699-0028-02
168
Screw
9997-0812-16
169
Auger-RH
1811-2479-01
170
Screw
9997-0620-16
171
Washer
9683-0025-02
172
Washer
9699-0025-02
173
Worm gear
1811-2463-01
174
Gear Housing, Right
1811-2484-01
175
Bushing
1811-2490-01
176
Shaft Bushing
1811-2443-01
177
Gear housing-LH
1811-2485-01
178
Bearing
1811-2402-01
179
Fan shaft
1811-2454-01
180
Bearing
1811-2403-01
181
Thrust Bearing
1811-2404-01
182
Seal Ring
1811-2405-01
183
Locating Pin
9595-0258-00
184
Washer
1811-2477-01
185
Fan
1811-2419-01
206
Gasket
1811-2569-01
207
Screw
9997-0625-16
210
Grease Filling Joint
1811-2544-01
211
Wave Gasket
1811-2545-01
