Spare parts > STIGA > Snowthrowers > ST 5266 PB TRAC ST 5266 PB TRAC (2017) [18-2872-11] > Controls
Back to
Controls
ST 5266 PB TRAC ST 5266 PB TRAC (2017) [18-2872-11]

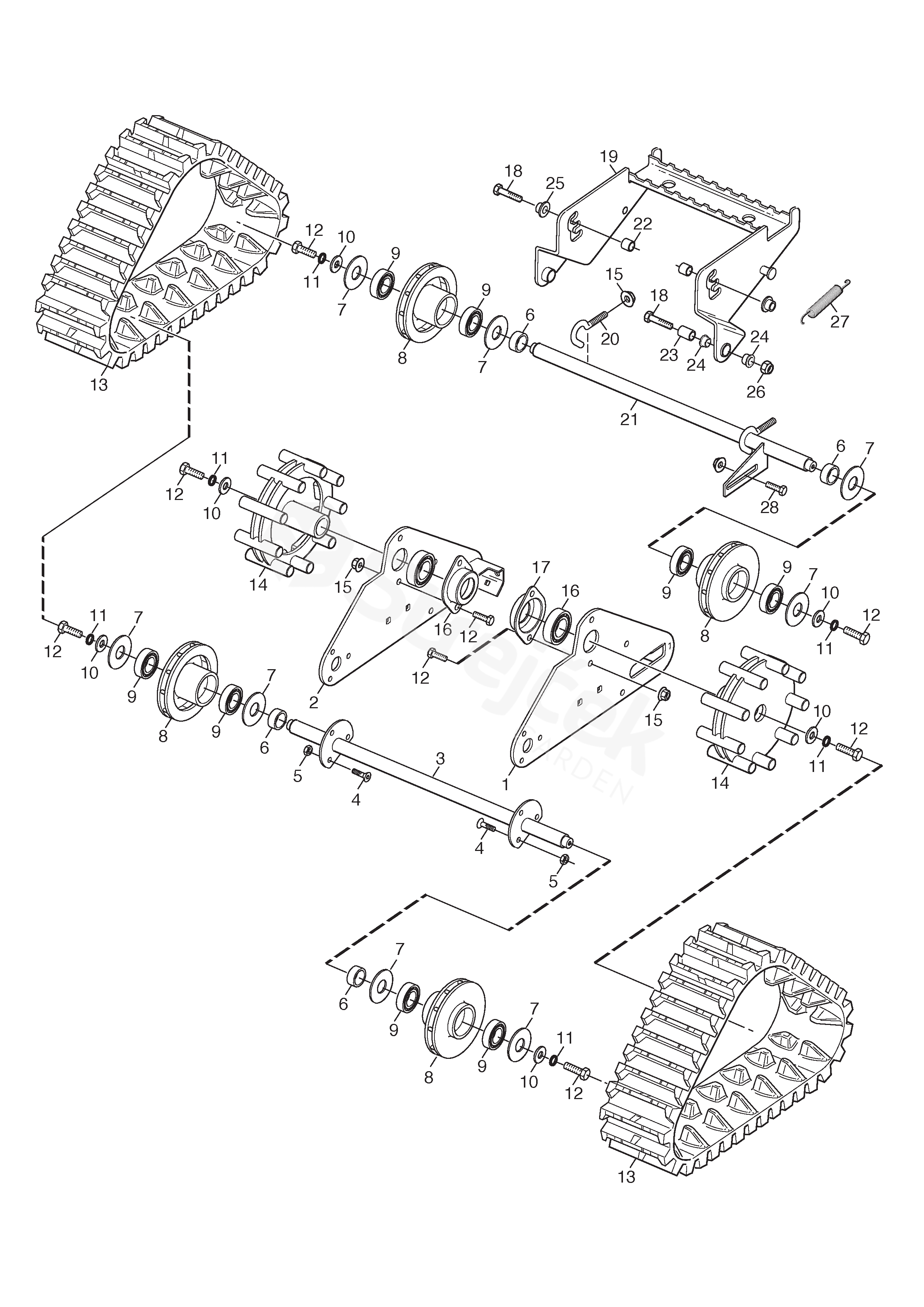

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 5266 PB TRAC (2017) [18-2872-11]
1 Bracket-Lh 1811-3086-01
2 Bracket-Rh 1811-3087-01
3 Shaft, TRAC 1811-3088-01
4 Screw 9897-0616-16
5 Lock Nut 9747-0631-02
6 Shaft Bushing 1811-3089-01
7 Washer 1811-3090-01
8 Ider pulley 1811-3091-01
9 Ball Bearing 1811-3141-01
10 Washer 9699-0056-02
11 Washer 9699-0002-02
12 Screw 9997-0816-16
13 TRAC 1811-3135-01
14 Pulley, TRAC 1811-3092-01
15 Nut 9739-0831-22
16 Ball Bearing 1811-3142-01
17 Bearing housing 1811-3115-01
18 Screw 9997-1040-16
19 Frame 1811-3082-01
20 Hook 1811-3093-01
21 Shaft, TRAC-rear 1811-3094-01
22 Bushing 1811-3098-01
23 Bushing 1811-3095-01
24 Plastic bushing 1811-3084-01
25 Pad 1811-3096-01
26 Nut 9739-1031-22
27 Spring 1811-3097-01
28 Screw 9997-0820-16
