Spare parts > STIGA > Snowthrowers > ST827T ST827T (1994) > Track Drive Unit
Back to

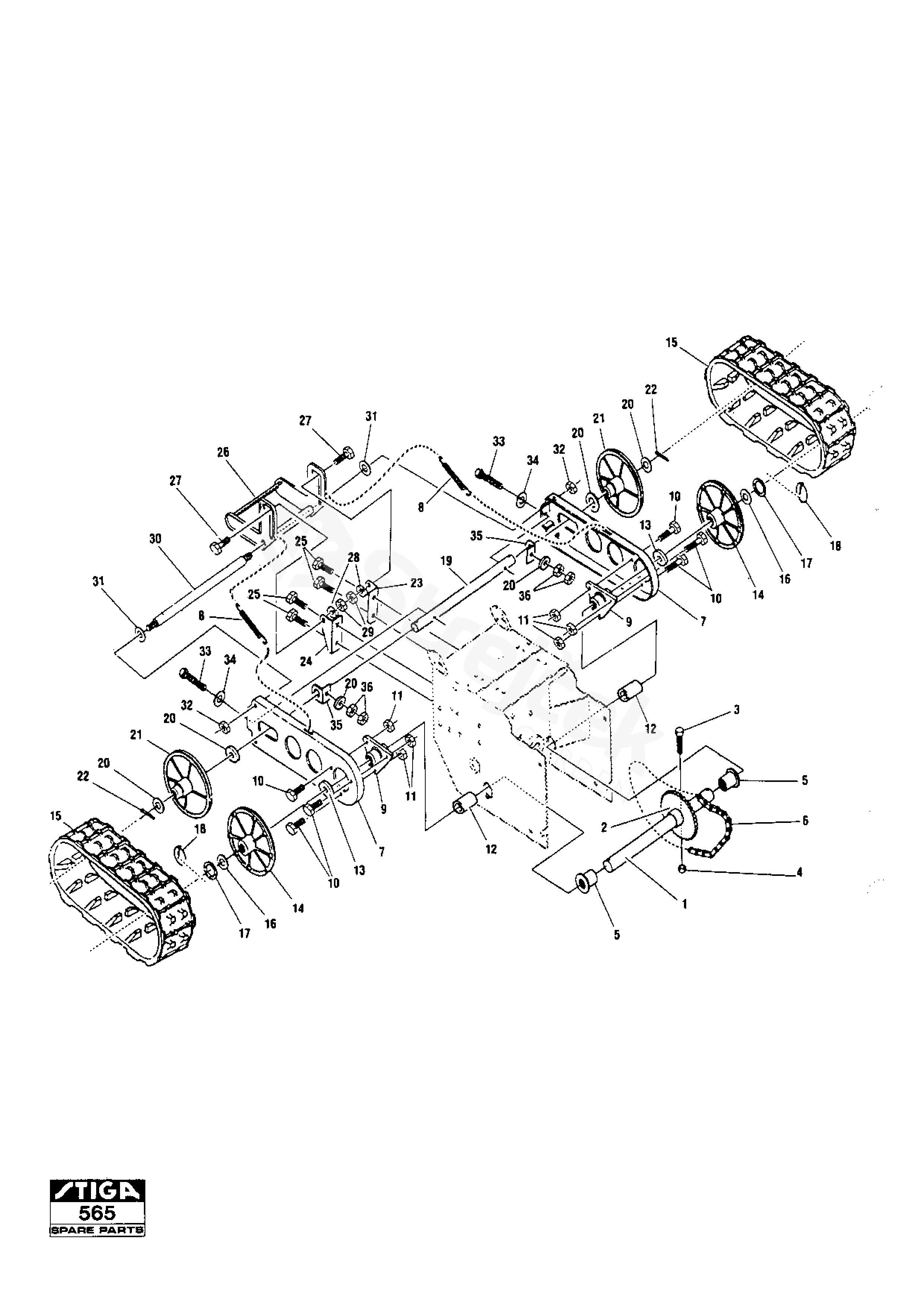

Track Drive Unit
ST827T ST827T (1994)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST827T (1994)
1 Shaft Axle 1812-1243-01
2 Sprocket 1812-1216-01
3 Screw 9988-3557-12
4 Nut 9743-3521-32
5 Bearing Axle 1812-1246-01
6 Chain Roller 1812-1209-01
7 Plate Track Drive 1812-1223-01
8 Spring 1812-0321-01
9 Bearing 1812-1240-01
10 Screw 9988-3519-16
11 Nut 9727-3541-22
12 Spacer 1812-1283-01
13 Washer 1812-0665-01
14 Sprocket Track Drive 1812-1174-01
15 Track 1812-1241-01
16 Washer 1812-0407-01
17 Washer 1812-0567-01
18 Clik Pin 1812-0408-01
19 Shaft 1812-1230-01
20 Flat washer 1812-1199-01
21 Idler shaft wheel 1812-1175-01
22 Self Locking Pin 1812-0939-01
23 Bracket-L.H. 1812-1227-01
24 Bracket-R.H. 1812-1226-01
25 Screw 1812-0384-01
26 Pedal Weight Transfer 1812-1225-01
27 Bolt 1812-0603-01
28 Washer 9683-0030-02
29 Nut 9795-3631-02
30 Foot pedal shaft 1812-1224-01
31 Washer 9699-0029-02
32 Nut 9743-3721-32
33 Bolt 1812-0907-01
34 Washer 9699-0026-02
35 Bracket Track Tensioner 1812-1222-01
36 Nut 9795-3531-02
