STIGA
>
Snowthrowers
>
ST82 ST828 (F) (1989)
>

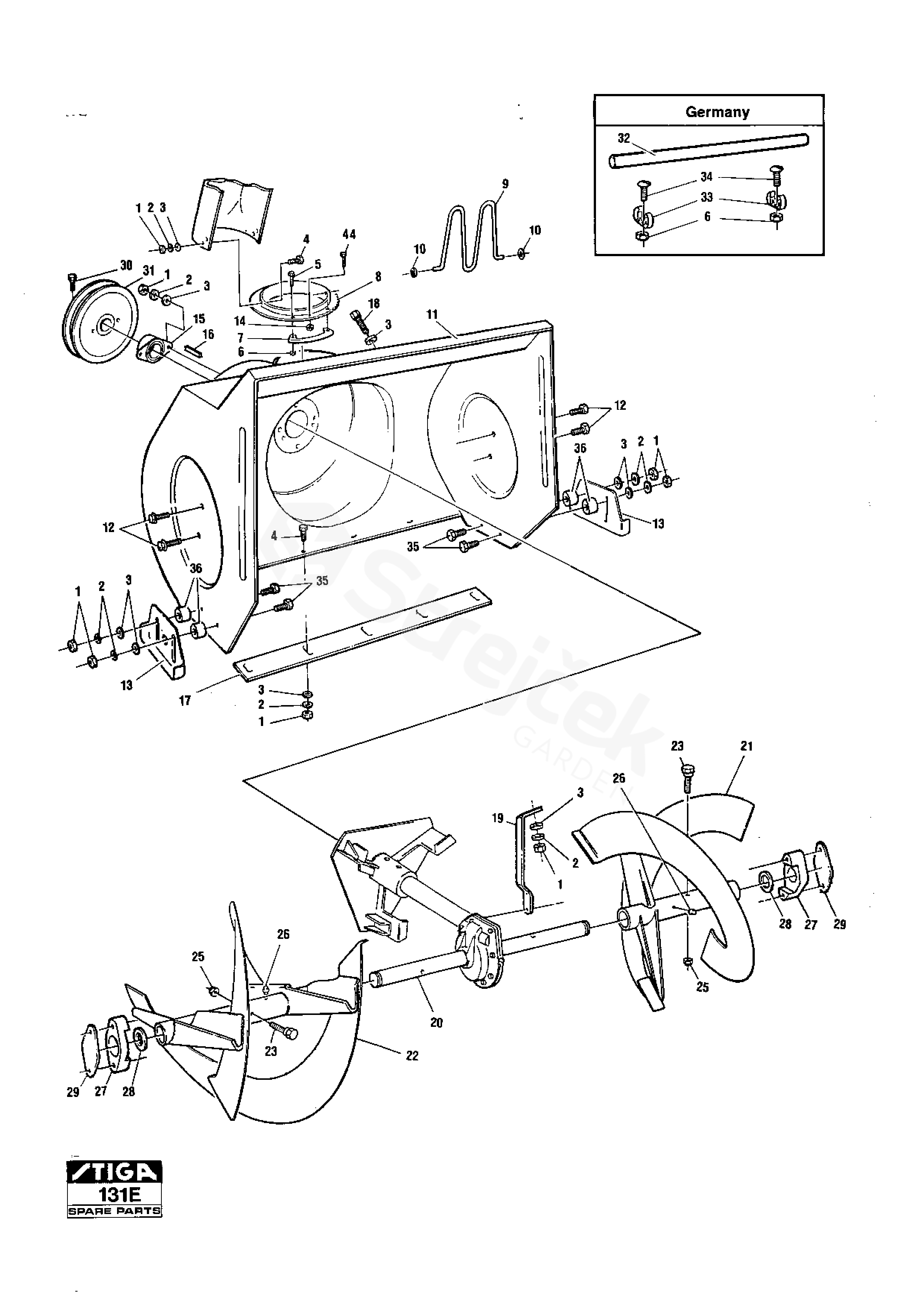

Auger Assy
Back to
ST82
ST828 (F) (1989)
Auger Assy
ST82
ST828 (F) (1989)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
ST828 (F) (1989)
1
Nut
9795-3631-02
2
Washer
9683-0030-02
3
Washer
9699-0028-02
4
Screw
9899-3622-16
5
Screw
1812-0388-01
6
Nut
1812-0389-01
7
Holder
1812-0423-01
8
Flange
1812-0255-01
9
Chute Protection
1812-0231-01
10
Grip Ring
1812-1143-01
11
Auger housing
1812-0551-01
12
Screw
1812-0387-01
13
Height Adjustor
1812-0831-01
14
Nut
9743-3521-32
15
Bearing
1812-0883-01
16
Key
1812-0626-01
17
Scraper bar
1812-0206-01
18
Screw
9988-3625-16
19
Gear Box Brace
1812-0663-01
20
Gear Box Assy
1812-0243-01
21
Auger-L.H.
1812-0654-01
22
Auger R.H
1812-0655-01
23
Shear Bolt Kit
1812-9006-01
26
Grease Fitting
1812-0274-01
27
Bearing
1812-0347-01
28
Spacer
1812-0301-01
29
Spacer
1812-0640-01
30
Screw
9988-3619-16
31
Pulley
8.4"
1812-0308-01
32
Clean out stick
Tyskland
1812-0315-01
33
Clamp
1812-0316-01
34
Bolt
1812-0728-01
35
Screw
9899-3632-12
36
Spacer
1812-0730-01
44
Screw
9988-3525-16
