Spare parts > Alpina > Lawn Tractor > SKIPPER ONE 102 K SKIPPER ONE 102 K (2004) > Body
Back to

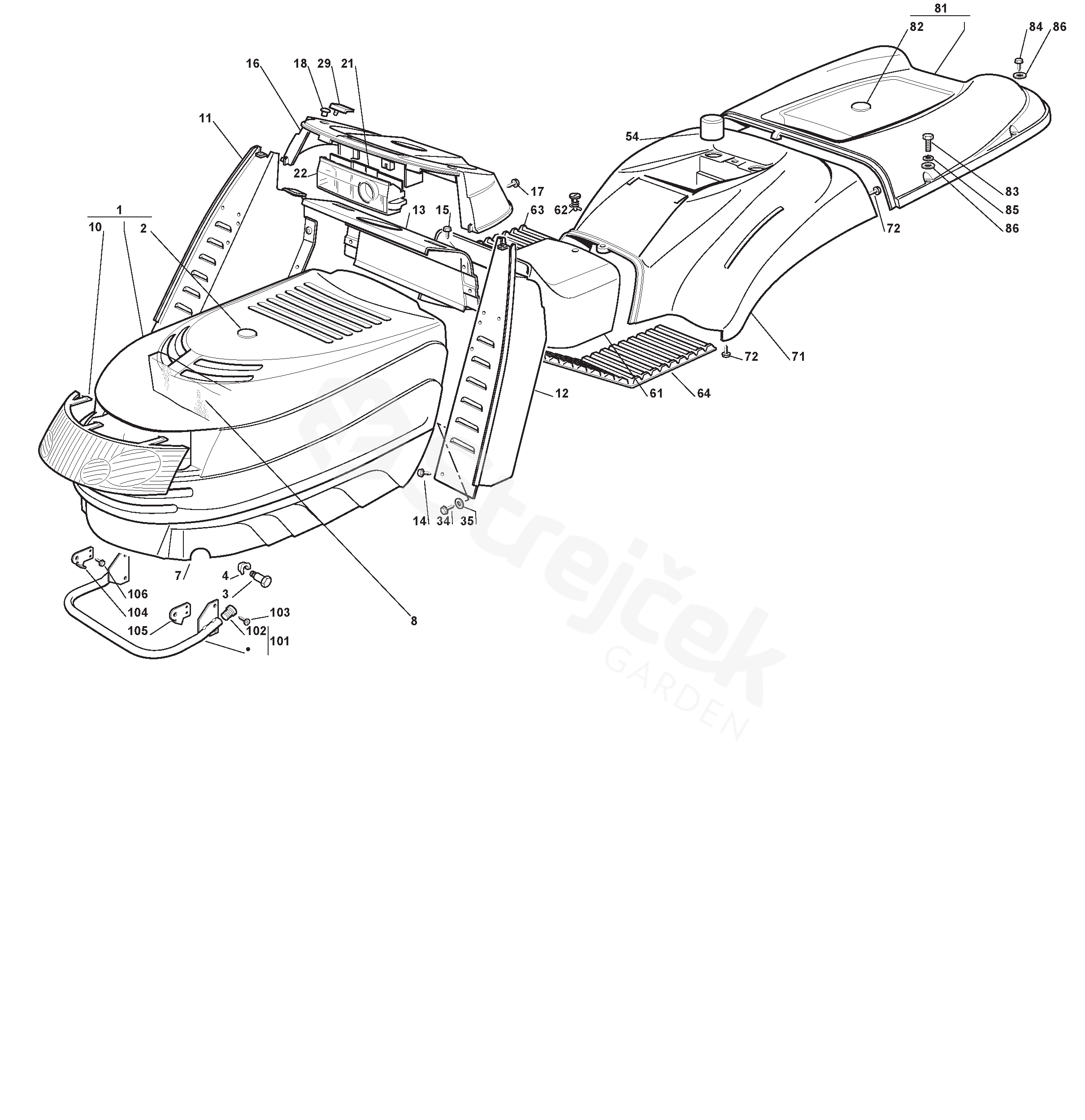

Body
SKIPPER ONE 102 K SKIPPER ONE 102 K (2004)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SKIPPER ONE 102 K (2004)
1 Upper Engine Hood Grey 382076943/0
2 Red Plate 325547183/0
3 Pin 125510023/1
4 Plate 112436050/1
7 Lower Engine Hood 125076808/0
8 Intake Separator 125730002/0
10 Headlights Grill For Single-Light 125410859/0
11 Right Dashboard Support 382785022/5
12 Dashboard Support 382785021/4
13 Central Dashboard Support 382785023/1
14 Screw 112735110/0
16 Black Dashboard 125120153/1
17 Screw 112728440/0
18 Cap 125120200/0
21 Rear Card Protection 125600009/0
22 Protection 125600051/0
29 Grommet 125260000/0
34 Screw 112731350/0
35 Washer 112521330/0
54 Cap 325122000/2
61 Cover  Grey 325110355/0
62 Stake 125580020/2
63 Right Footboard Cover 125110270/0
64 Left Footboard Cover 125110260/2
71 Grey Wheels Cover 325109763/0
72 Screw 112735402/0
81 Grass-Catcher Cover Grey 382110272/0
83 Screw 112674701/0
84 Screw 112729601/1
85 Grower 112582101/0
86 Washer 112521331/0
101 Muffler Tube Guard 382869006/1
102 Push rod 118566110/0
103 Screw 112734995/0
104 Plate 325547089/0
105 Plate 325547091/0
106 Screw 112731580/0
