Spare parts > Alpina > Lawn Tractor > AT8 122 HW AT8 122 HW (2020) > Electrical Parts
Back to

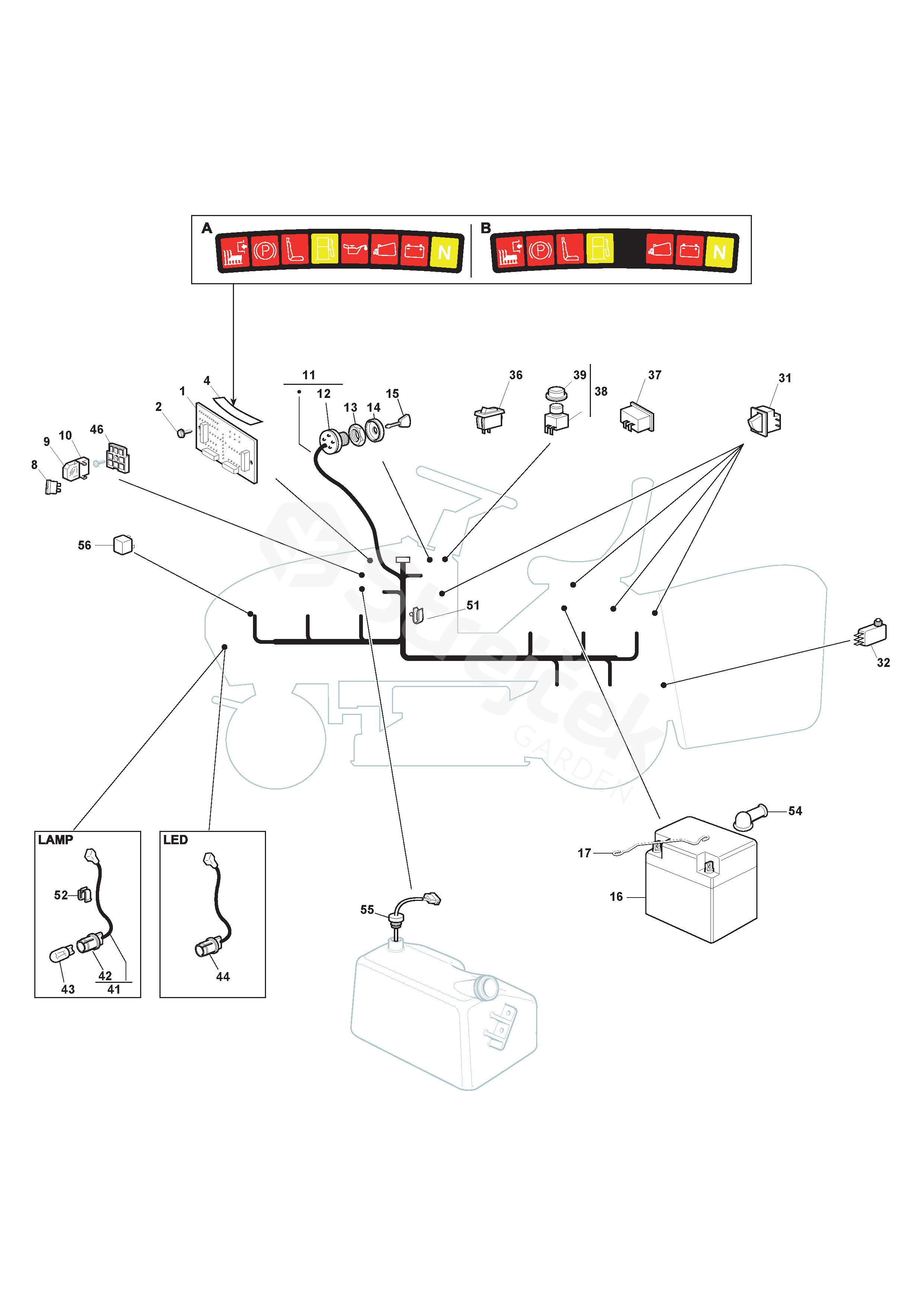

Electrical Parts
AT8 122 HW AT8 122 HW (2020)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For AT8 122 HW (2020)
1 Electronic Card 125722441/0
2 Screw 112735105/0
4 Check Control (B)
A 		125420005/0
8 Fuse 10 A 133340040/0
9 Cover 133215000/0
10 Fuse carrier 133500007/0
11 Cables Ass.Y 182040238/0
12 Starting Switch 118450065/1
13 Screwed Ring 118400861/0
14 Screwed Ring Protection 118565351/0
15 Starting Key 118210016/1
16 Battery 118120007/0
17 Spring 125430230/0
31 Microswitch 119410622/1
32 Microswitch 119410605/1
36 Headlight Switch 118450084/0
37 Hour Meter 9400-0384-01
38 Switch 118450067/0
39 Cap 118203852/0
41 Headlight Cable
for LAMP Version 		182040073/0
42 Lamp Holder 133500030/0
43 Lamp For Lights
NOT for models with LED Light 		118459100/0
44 Cables Ass.Y
for LED Version 		182040192/0
46 Plate 133500010/1
51 Fairlead 133320506/0
52 Fairlead 133320504/0
54 Protection 118564864/1
55 Fuel Level Indicator 125290000/0
56 Relay 133567000/0
