Spare parts > Alpina > Lawn Tractor > BT 98 SD HCB BT 98 SD HCB (2017) > Cutting Plate Lifting
Back to

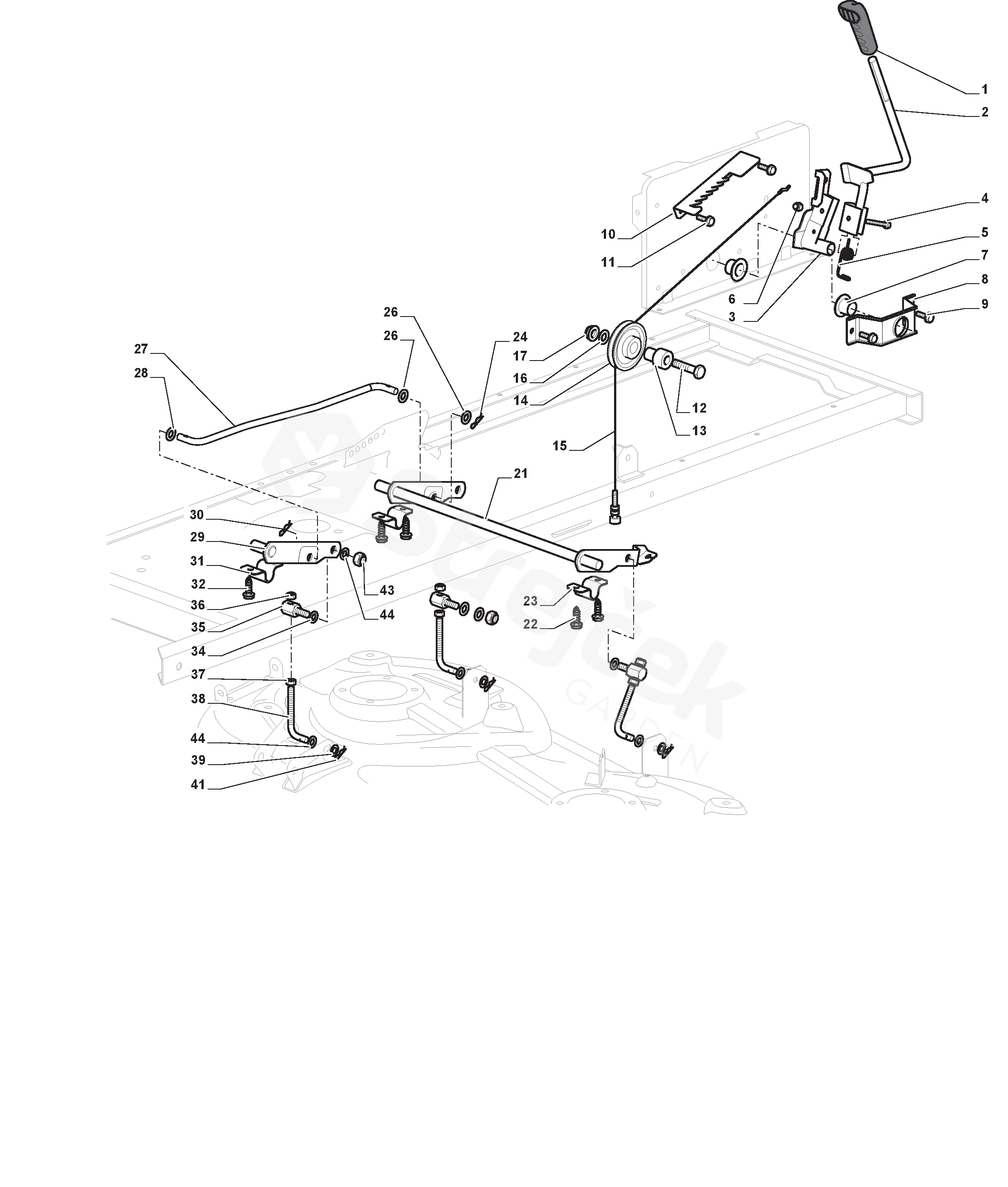

Cutting Plate Lifting
BT 98 SD HCB BT 98 SD HCB (2017)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For BT 98 SD HCB (2017)
1 Knob 325394533/0
2 Lever 382318229/0
3 Axle 382318231/0
4 Screw 112674700/0
5 Spring 125430261/0
6 Nut 112154510/0
7 Bushing 325038006/0
8 Support 325785297/0
10 Steering Sector 325735515/0
11 Screw 125943009/0
12 Screw 112793701/0
13 Bushing 125040636/1
14 Pulley 125601579/0
15 Wire 382004620/0
16 Washer 112523060/0
17 Nut 112293201/0
21 Axle 382318295/0
22 Screw 112735599/0
23 Plate 325547231/0
24 Cotter Pin 124487997/0
26 Antifriction Washer 325670010/0
27 Connecting Rod 125033109/0
29 Axle 382318293/1
34 Washer 325670008/1
35 Pin 125510107/1
36 Nut 112156602/0
37 Nut 112295200/0
38 Tie Rod 125840012/0
41 Cotter Pin 124487998/0
44 Washer 112521360/0
