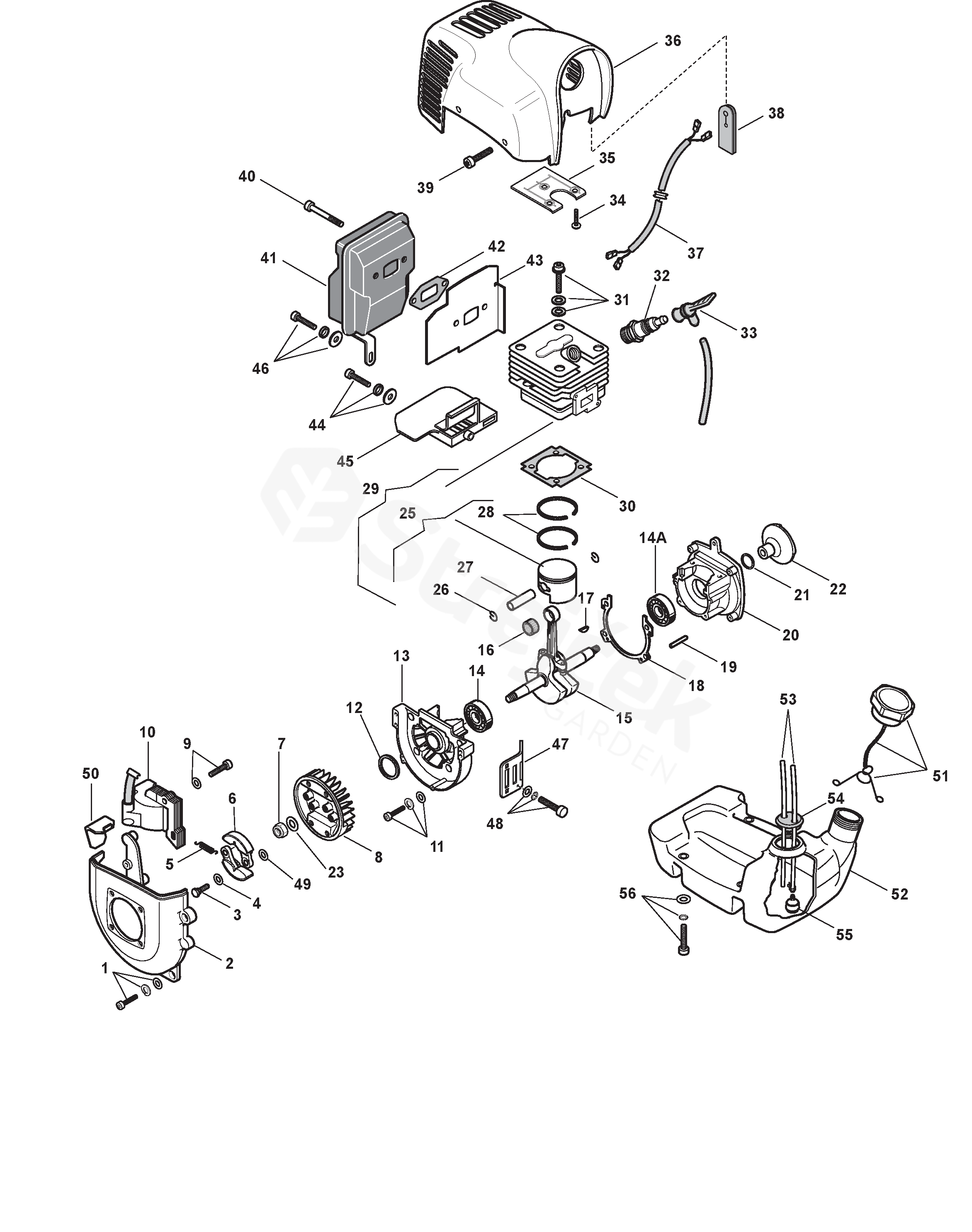

540 540 (2007)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 540 (2007)

1	Outfit, Screws	6981118
2	Transmission Support Case	6981082
3	Screw	6981085
4	Washer	6981086
5	Clutch Spring	6981084
6	Clutch Unit	6981083
7	Nut	6981143
8	Flywheel Assy	6981064
9	Outfit, Screws	6981116
10	Electronic Coil	6981065
11	Screw	6981259
12	Seal Ring	6981008
13	Front Crank Case	6981058
14	Ball Bearing	6981288
15	Crankshaft	6981054
16	Needle Bearing	6981055
17	Flywheel Key	6981057
18	Crankcase Gasket	6981059
19	Centring Pin	6981126
20	Rear Crank Case	6981076
21	Seal Ring	6981109
22	Starter Cup	6981075
23	Washer	6981128
25	Piston Assy	6981093
26	Washer, Piston Pin	6981053
27	Piston Pin	6981127
28	Piston Ring	6981094
29	Cylinder - Piston Ass'Y	6981092
30	Cylinder Gasket	6981049
31	Outfit, Screws	6981108
32	Spark Plug	6981106
33	Cover, Spark Plug	6981023
34	Outfit, Screws	6981285
35	Guard assy	6981063
36	Engine Cover Orange	6981123
37	Switch Wires	6981067
38	Cable Retainer	6981021
39	Screw	6981117
40	Outfit, Screws	6981284
41	Muffler	6981095
42	Muffler Gasket	6981074
43	Muffler Protection	6981073
45	Guard assy	6981061
47	Guard assy	6981062
49	Washer	6981277
50	Retainer	6981088
51	Cap Ass'Y, Fuel Tank	6981091
52	Fuel Tank Assy	6981087
53	Fuel Hose	6981089
54	Grommet Assy	6981039
55	Intake Filter	4253290
56	Outfit, Screws	6981102
