Spare parts
Everything for your machines
Spare parts > Alpina > Trimmer/Brushcutter > B 42 D B 42 D (2017) > Engine
Back to
Engine
B 42 D B 42 D (2017)

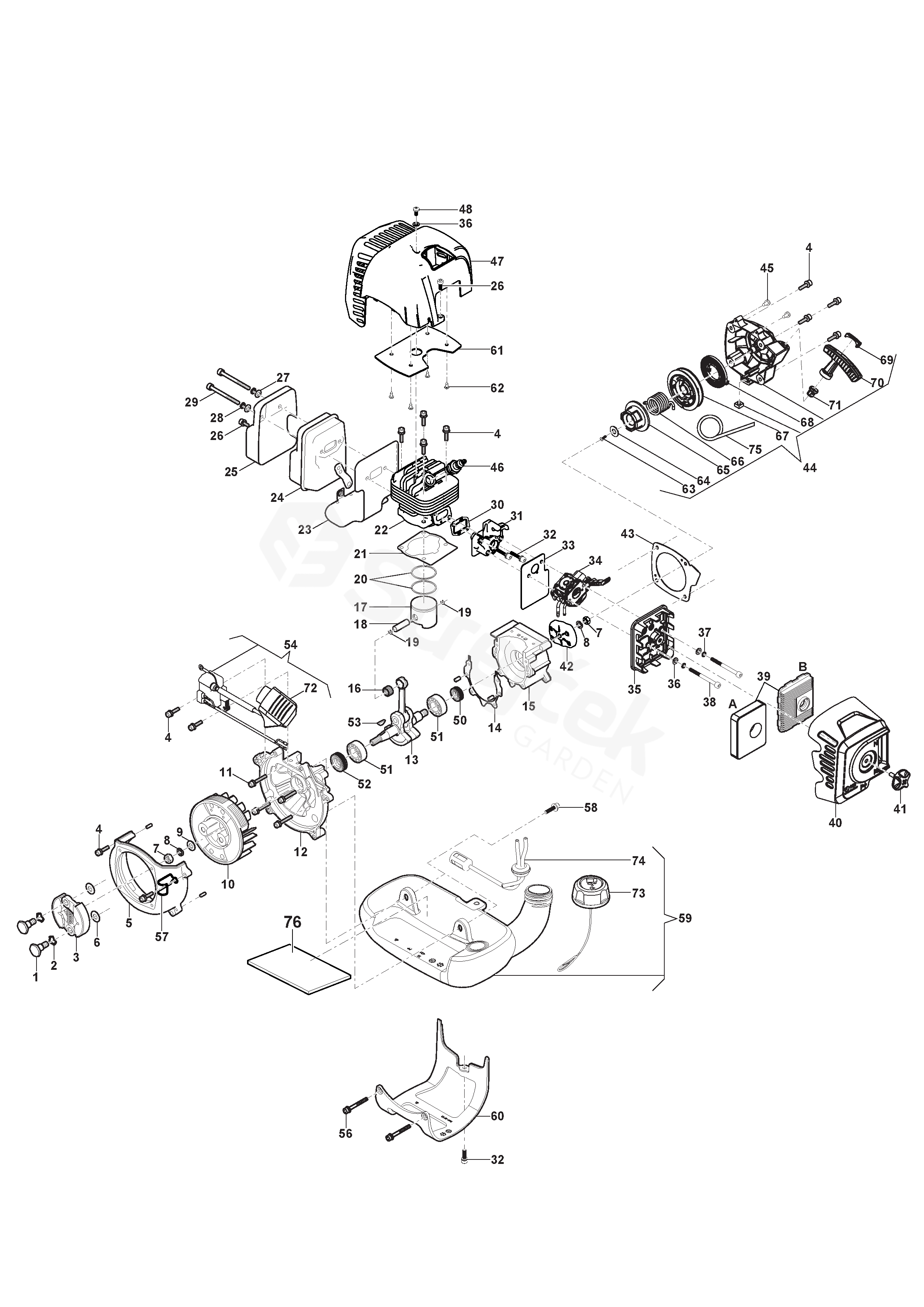

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For B 42 D (2017)
1 Screw 118804038/0
2 Washer 118804045/0
3 Clutch 118804000/0
4 Screw 112789008/0
5 Flywheel Cover 118804033/0
6 Washer 118804046/0
7 Nut 112293200/0
8 Elastic Washer 112369500/0
9 Washer 112521350/0
10 Flywheel 118804013/0
11 Screw 2135130
12 Crank Case 118804025/0
13 Crankshaft 118803989/0
14 Crankcase Gasket 118804079/0
15 Crank Case 118804027/0
16 Needle Bearing 118804018/0
17 Piston 118804028/0
18 Piston Pin 118804039/0
19 Circlip 118804049/0
20 Piston Ring 118804022/0
21 Cylinder Gasket 118804080/0
22 Cylinder 118804034/0
23 Muffler Gasket 118804085/0
24 Muffler 118803992/0
25 Muffler Guard 118804048/0
26 Screw 2135180
27 Washer 112521330/0
28 Grower 112582100/0
29 Screw 118801180/0
30 Gasket 118804081/0
31 Intake Manifold 118804064/0
32 Outfit, Screws 6981102
33 Carburetor Gasket 118804083/0
34 Carburetor 118804008/0
35 Air Cleaner Base 118804063/0
36 Washer 112521320/0
37 Grower 112581500/0
38 Screw 2135250
39 Air Filter
A 		118804074/0
40 Filter Cover White 118803963/0
41 Knob, Grey 118803174/0
42 Starter Cup 118803996/0
43 Gasket 118804051/0
44 Starter Assy 118803994/0
45 Screw 112727356/0
46 Spark Plug 3210024
47 White Cylinder Cover 322055542/0
48 Screw 112727796/0
50 Seal Ring 118801188/0
51 Ball Bearing 3112040
52 Seal Ring 118804020/0
53 Flywheel Key 123072002/0
54 Ignition Assy 118804010/0
56 Screw 2135110
57 Wire Clamp 118804055/0
58 Screw 112760475/0
59 Fuel Tank Assy 118804004/0
60 Support 118803962/0
61 Air Guide 118804087/0
62 Screw 112727815/0
63 Screw 112727790/0
64 Washer 112523020/0
65 Starter Cam 118803975/0
66 Starter Spring 118804061/0
67 Starter Pulley 118803976/0
68 Spring 118804060/0
69 White Starter Plate 118804071/0
70 Starter Handle 118803984/0
71 Rope Guide 118804068/0
72 Spark Plug Cap 118803163/0
73 Oil Cap 322735152/0
74 Fuel Hose 118804005/0
75 Starter cord 118803181/0
76 Heat Insulation Label 118805308/0
