Spare parts
Everything for your machines
Spare parts
>
Alpina
>
Chainsaw
>
C 2.2 ET C 2.2 ET (2012)
>
Electric Chain Saw
Back to
C 2.2 ET
C 2.2 ET (2012)
Electric Chain Saw
C 2.2 ET
C 2.2 ET (2012)

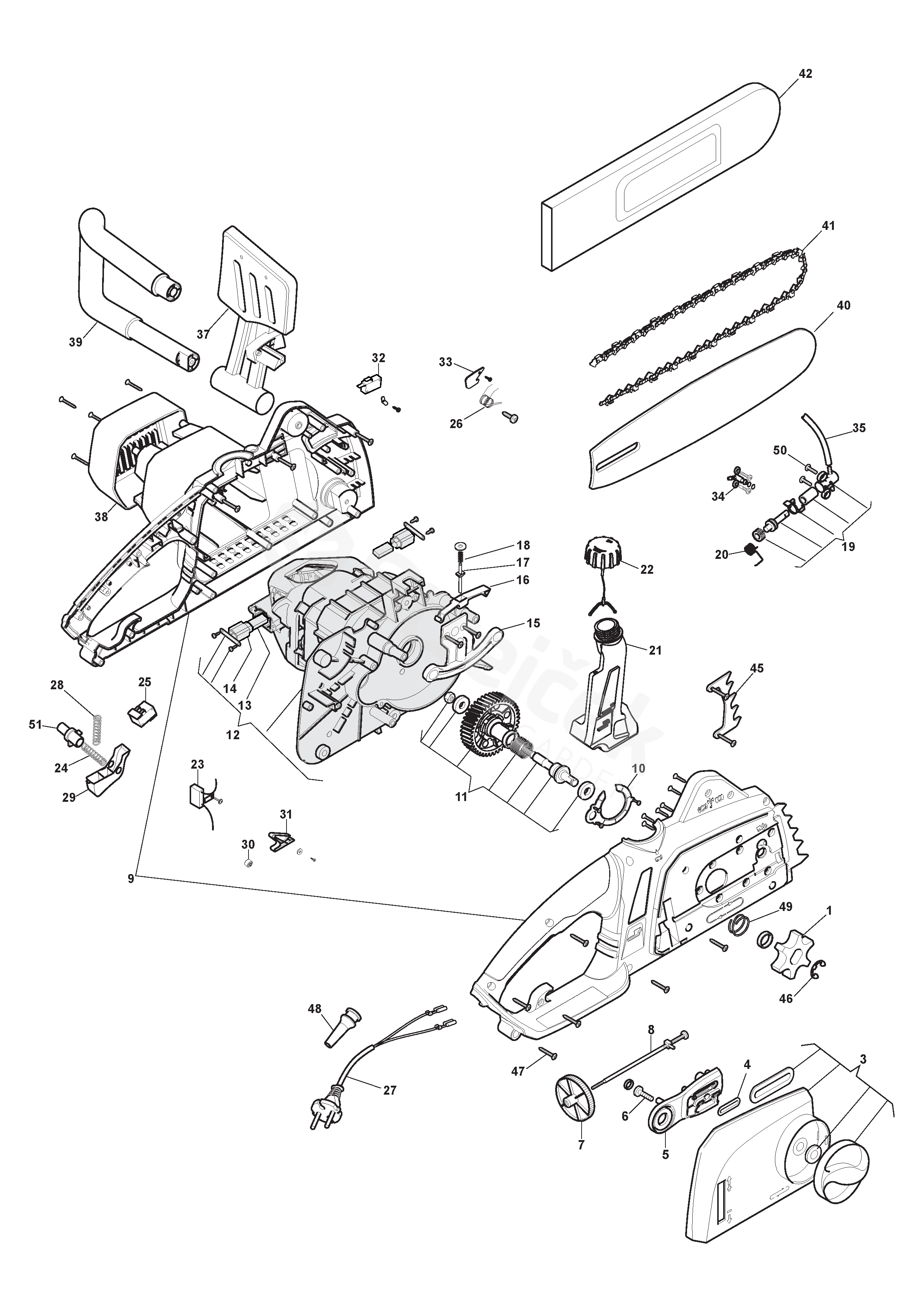

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
C 2.2 ET (2012)
1
Chain Pinion
118801073/0
3
Adjust End Cap Assy, Black
With white knob
118804937/0
4
Seal Ring
118800809/0
5
Bar Reinforcement
118801076/0
6
Screw
118801077/0
7
Knob
118801078/0
8
Chain Tensioner
118801079/0
9
Housing Assy, White
White
118804934/0
10
Dust Cover
118801072/0
11
Shaft
118801083/0
12
Electric Engine 2200W
118801085/0
13
Carbon Brush
118801087/0
14
Support
118801089/0
15
Brake Lever
118801090/0
16
Rod
118801091/0
17
Rod
118801092/0
18
Spring
118801093/0
19
Oil Pump Assy
118801070/0
20
Spring
118801094/0
21
Oil Tank
118801095/0
22
Tank Cap
118801096/0
23
Capacitor
118801097/0
24
Spring
118801098/0
25
Switch
118801099/0
26
Spring
118801100/0
27
Cable
118801101/0
28
Spring
118801098/0
29
Switch Lever
118801103/0
30
Pulley
118801104/0
31
Switch Lever
118801105/0
32
Microswitch
118801108/0
33
Plate
118801109/0
34
Pipe Connection
118801071/0
35
Pipe
118801110/0
37
Hand Guard
118801113/0
38
End Cover
Black
118801114/0
39
Handle
118801115/0
40
Guide Bar 16"-3/8"-0,050"
118800128/0
41
Chain 16"-3/8"-0,050"-57E
1430157-01A
42
Chain Cover 16inch
4181307
45
Spike
118801080/0
46
Snap Ring
118800466/0
47
Screw
118800476/0
48
Cord Protector
118800443/0
49
Spring
118800819/0
50
Screw
118800477/0
51
Button
118804586/0
