Husqvarna
>
CHAIN SAWS
>
570 570, AutoTune, 2010-11
>

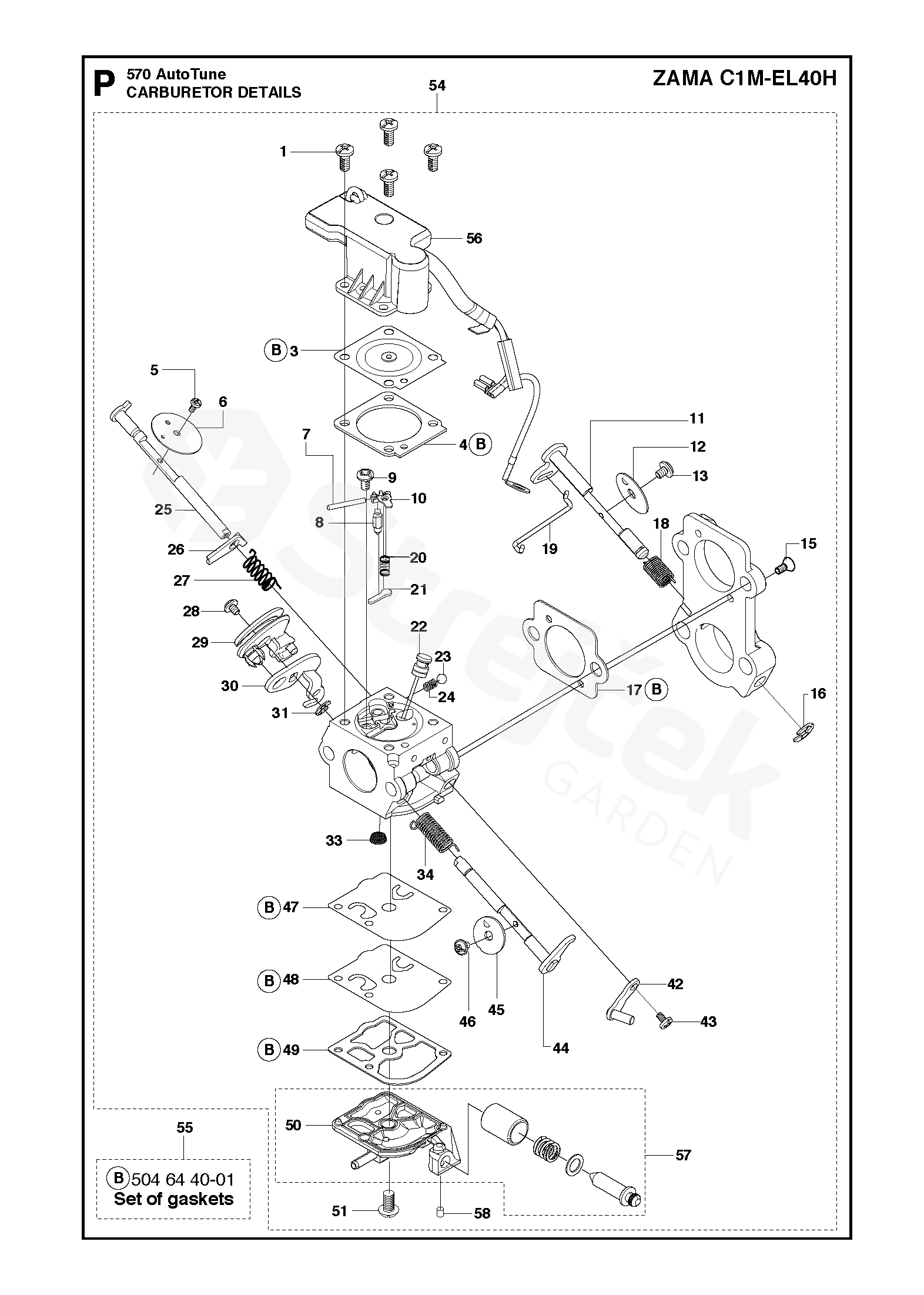

CARBURETOR DETAILS
Back to
570
570, AutoTune, 2010-11
CARBURETOR DETAILS
570
570, AutoTune, 2010-11
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
570, AutoTune, 2010-11
1
SCREW
506396601
3
DIAPHRAGM
504113801
4
GASKET
504627901
5
SCREW
503481801
6
CHOKE VALVE
504627701
7
PIN RETAINING SCREW
503480001
8
VALVE
503479701
9
SCREW
503480101
10
LEVER
503665901
11
HRÍDEL
544237801
12
VALVE
537177001
13
SCREW
503481801
15
SCREW
537385101
16
CLIP
537385001
17
GASKET
537385301
18
PRUŽINA
537385501
19
ROD
544237901
20
PRUŽINA
537383401
21
PLUG WELCH
503535601
22
NOZZLE ASSY
544237701
23
BALL
537012501
24
PRUŽINA
537012601
25
HŘÍDE, MONTÁŽNÍ SESTAVA
537384201
26
LEVER
544238001
27
PRUŽINA
537384401
28
SCREW
503479001
29
PÁČKA PLYNU KOMPL.
544387601
30
LEVER
537384101
31
CLIP
537385201
33
ČISTIČ
503535701
34
PRUŽINA
537382901
42
LEVER
537384501
43
SCREW
503479001
44
SHAFT ASSY
537382801
45
VALVE
537383001
46
SCREW
503481801
47
DIAPHRAGM PUMP
537383101
48
DIAPHRAGM
537403301
49
GASKET
537020101
50
COVER
537383201
51
SCREW
503479601
52
PIECE
503481101
53
SCREW
537383301
54
CARBURETTOR ZAMA C1M-EL 40E
ZAMA C1M-EL40E
576694101
55
KIT
Set of gaskets
504644001
56
VALVE HOUSING ASSY
576694201
57
SCREW
537383301
58
PIECE
503481101
