Spare parts
Everything for your machines
Spare parts
>
Mountfield
>
Lawn Mower
>
MB 432 B MB 432 B (2005)
>

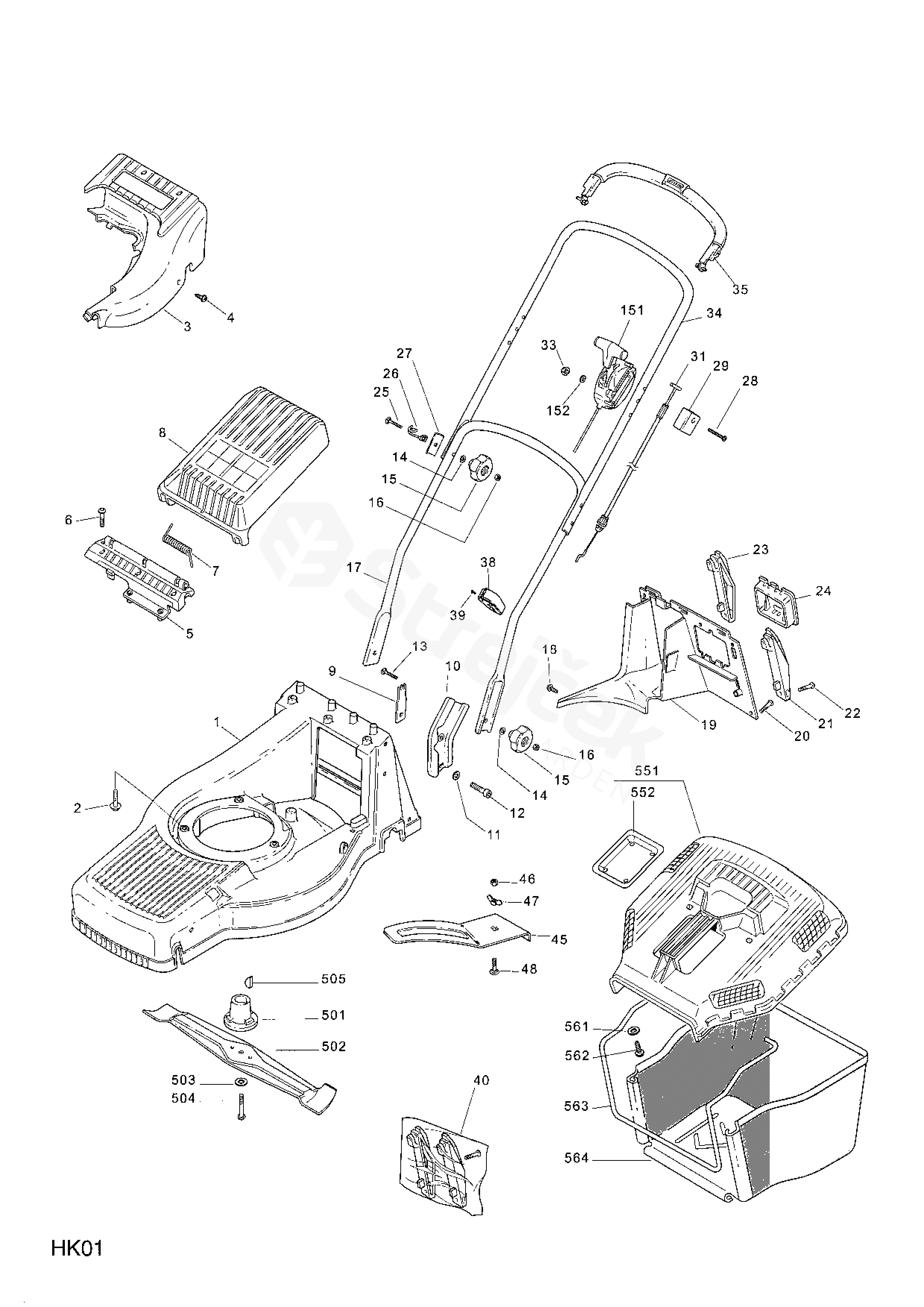

Chassis Handle
Back to
MB 432 B
MB 432 B (2005)
Chassis Handle
MB 432 B
MB 432 B (2005)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MB 432 B (2005)
1
Chassis (Red)
1111-3100-16
2
Screw
9955-3732-12
3
Cover (Red)
1111-3102-04
5
Flap Attachment (Black)
1111-3104-02
7
Spring
1111-3181-01
8
Flap (Black)
1111-3282-02
9
Attachment plate
1111-3024-01
10
Handlebar Attachment
1111-3021-01
11
Washer
9699-0028-02
12
Screw
9939-0820-16
13
Screw
9899-3557-12
15
Locking Knob
1111-3023-01
16
Nut
9795-3531-02
17
Handlebar-lower part
1111-3113-01
18
Screw
9838-9522-12
19
Rear Attachment (Combi 43)
1111-3337-01
20
Screw
9947-0616-16
21
Attachment L.H.
1111-3236-01
22
Screw
9836-9520-12
23
Attachment R.H.
1111-3237-01
24
Battery Holder
1111-2927-01
26
Eyelink
1111-3062-01
27
Reinforcement
1111-0178-00
28
Screw
9948-0640-16
29
Cable Holder
1111-2969-01
31
Cable, Thread Engine Brake
1111-2968-01
33
Lock Nut
9747-0631-02
34
Handlebar-Upper Part
1111-3112-01
35
Control Handle (Eng.Brake
1111-2953-01
38
Cable Holder
1111-2018-01
39
Screw
9836-9216-12
40
Accessory Bag
1111-3569-01
45
Mulch Plug (Combi 43)
1111-3336-01
46
Nut
9799-0831-02
47
Wing Nut
1134-4481-01
48
Screw
1136-0825-01
151
Throttle Cable
1111-3351-01
152
Washer
9699-0060-02
501
Blade Holder
1111-1408-02
502
Blade
1111-3110-01
503
Washer
9696-0011-01
504
Screw
9987-5251-12
505
Key
9600-0014-00
551
Grass Bag Cover (Black)
1117-1345-02
552
Cover
1111-2764-01
561
Flat washer
9699-0100-02
563
Wire Clamp
1111-3109-01
564
Collecting Bag
1111-3108-01
