Spare parts
Everything for your machines
Spare parts
>
Mountfield
>
Lawn Mower
>
MB 482 SB MB 482 SB (2005)
>

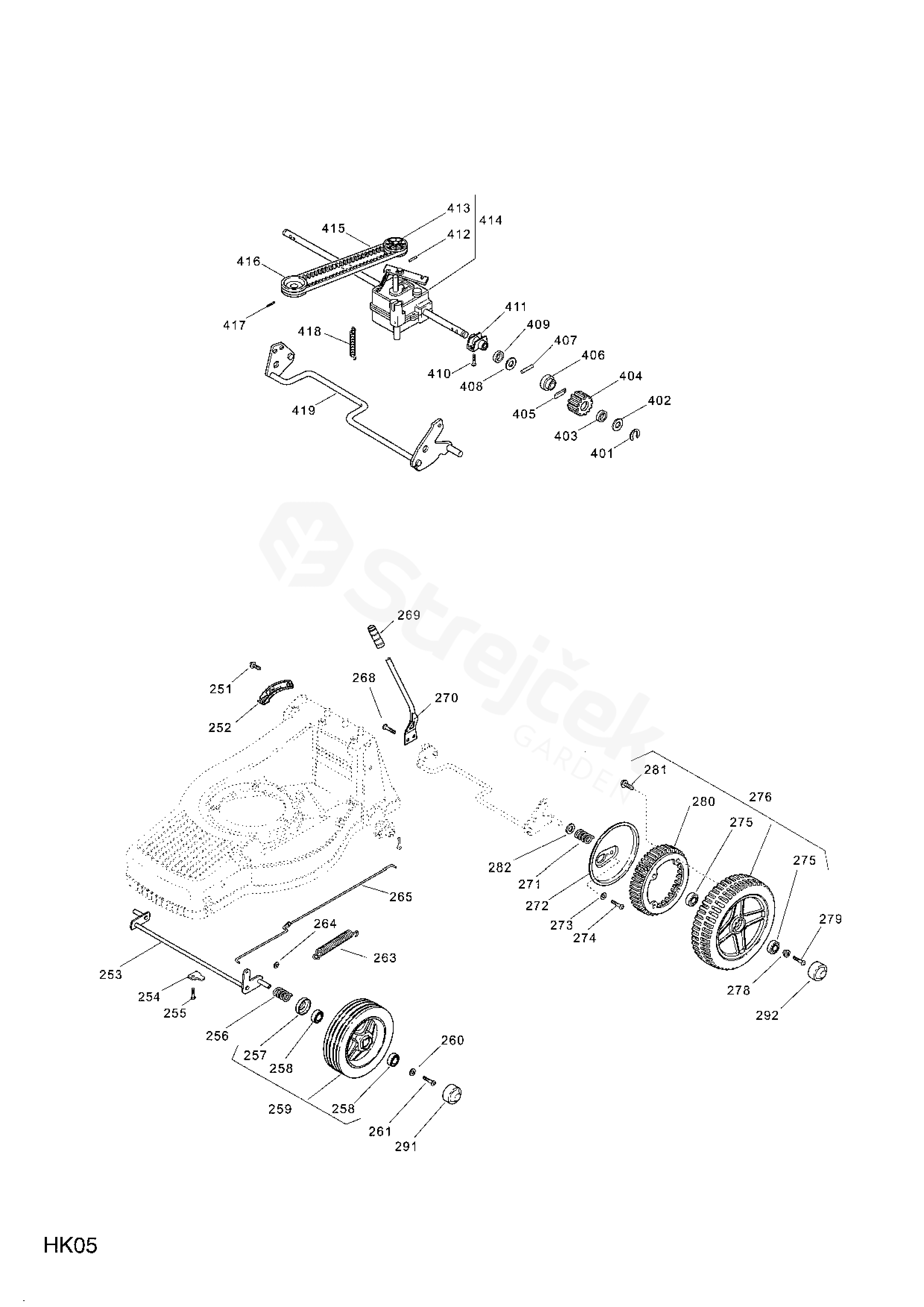

Transmission Wheel Suspension
Back to
MB 482 SB
MB 482 SB (2005)
Transmission Wheel Suspension
MB 482 SB
MB 482 SB (2005)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MB 482 SB (2005)
251
Screw
9838-9522-12
252
Height Adjusting Plate
1111-2798-01
253
Front Axle
1111-3466-01
254
Clamp
1111-1504-01
256
Spring-Wheel Axle
1111-1138-01
257
Seal Grease
1111-0466-00
258
Ball Bearing
9549-0015-00
259
Aluminium Wheel
Inkl. pos 257-258
1111-3260-01
260
Flat washer
9699-0100-02
261
Screw
9943-0612-16
263
Spring
1111-2819-01
264
Starlock
9675-0011-00
265
Rod, Height Adjustment
1111-2818-01
269
Lever Knob
1111-2817-01
270
Lever, Height Adjustment
1111-2816-01
271
Spring
1111-3060-01
272
Cover Plate
1111-3229-01
273
Washer
9699-0060-02
274
Screw
9943-0610-16
275
Ball Bearing
9549-0001-00
276
Aluminium Wheel
Inkl. pos 275,280-281
1111-2262-01
278
Spacer
1111-3555-01
279
Screw
1136-1314-01
280
Gear Ring
1111-2109-01
281
Screw
9841-0410-16
282
Spacer
1111-3627-01
291
Hub Cap
1111-1506-01
292
Hub Cap
1111-2077-01
401
Lock Ring
1136-1310-01
402
Washer
9695-0013-00
403
Washer
1111-2830-01
404
Gear Wheel
1111-3230-01
405
Key
1111-3256-01
406
Washer
1111-2829-01
407
Pin
1111-2382-01
409
Seal Ring
9404-0083-00
410
Screw
9947-0616-16
411
Bushing
1111-2814-01
412
Pin
9595-0235-00
413
Belt Pulley
1111-3440-01
414
Transmission Assy (Turbo 48/55)
Inkl. pos 412-413
1111-3401-02
415
Drive Belt
1151-0128-11
416
Engine Belt Pulley
1111-2915-01
417
Screw
9910-0612-16
418
Tension Spring
1111-2822-01
419
Rear axle
1111-2808-01
