Spare parts
Everything for your machines
Spare parts
>
Mountfield
>
Lawn Mower
>
MOUNTFIELD M6 SP COMBI MOUNTFIELD M6 SP COMBI (2002)
>

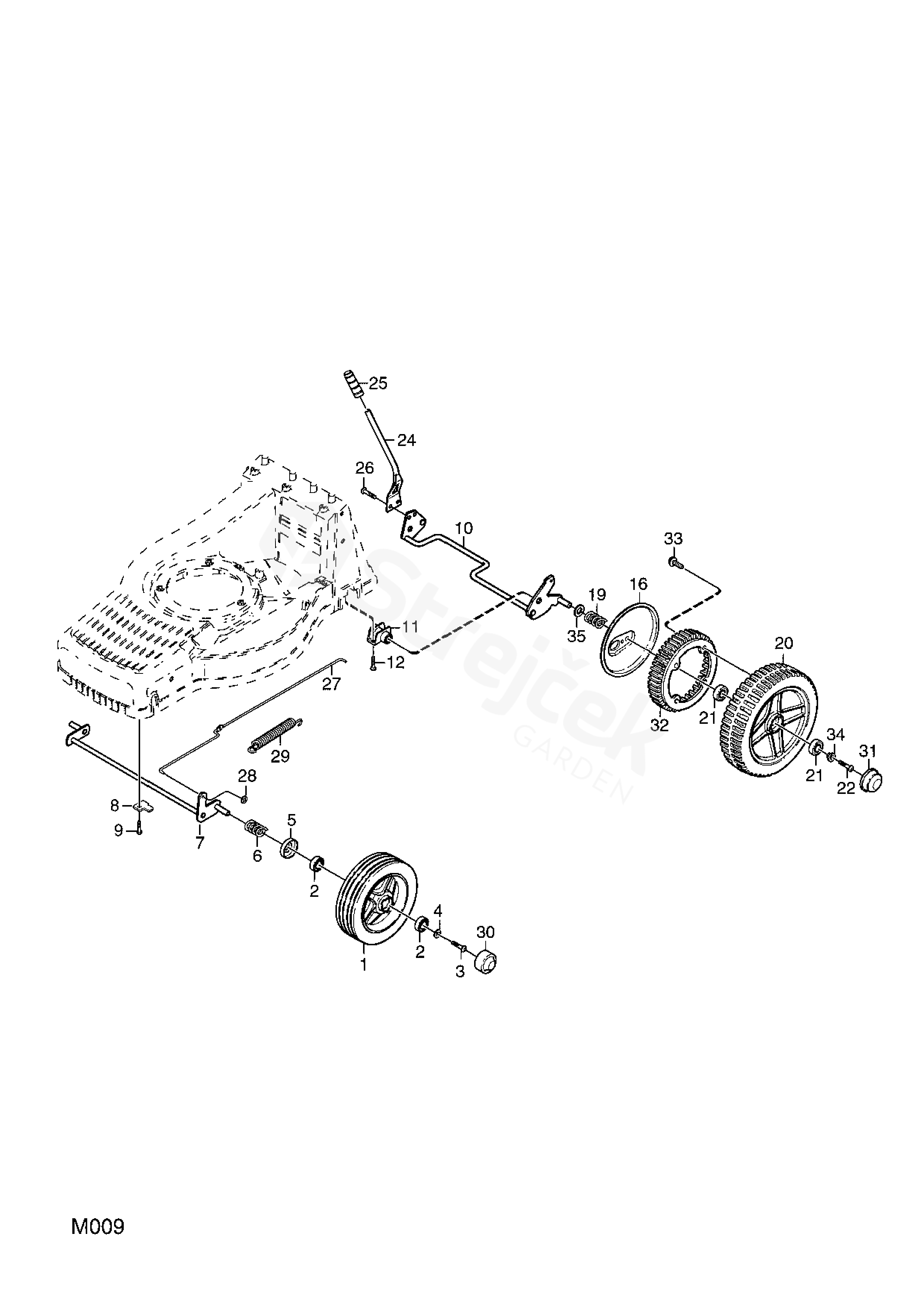

Wheel Suspension (Aluminium Wheels)
Back to
MOUNTFIELD M6 SP COMBI
MOUNTFIELD M6 SP COMBI (2002)
Wheel Suspension (Aluminium Wheels)
MOUNTFIELD M6 SP COMBI
MOUNTFIELD M6 SP COMBI (2002)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MOUNTFIELD M6 SP COMBI (2002)
1
Alu Wheel W/O Bearing
1111-0817-03
2
Ball Bearing
9549-0015-00
4
Flat washer
9699-0100-02
5
Seal Grease
1111-0466-00
6
Spring-Wheel Axle
1111-1138-01
7
Axle, Front Wheels
1111-2805-02
8
Clamp
1111-1504-01
10
Rear axle
1111-2808-01
11
Bushing
1111-2814-01
12
Screw
9947-0616-16
16
Cover Plate
1111-3229-01
19
Spring
1111-3060-01
20
Rear Wheel
1111-2345-01
21
Ball Bearing
9549-0001-00
22
Screw
9943-0620-16
24
Lever, Height Adjustment
1111-2816-01
25
Lever Knob
1111-2817-01
26
Screw
9943-0612-16
27
Rod, Height Adjustment
1111-3031-01
28
Starlock
9675-0011-00
29
Spring
1111-2819-01
30
Hub Cap
1111-1506-01
31
Hub Cap
1111-2077-01
32
Gear Ring
1111-2109-01
33
Screw
9841-0410-16
34
Spacer
1111-2423-01
35
Washer
9699-0037-02
