Spare parts > Husqvarna > CHAIN SAWS > 272 XP 272 XP, 1993-01 > CLUTCH & OIL PUMP
Back to

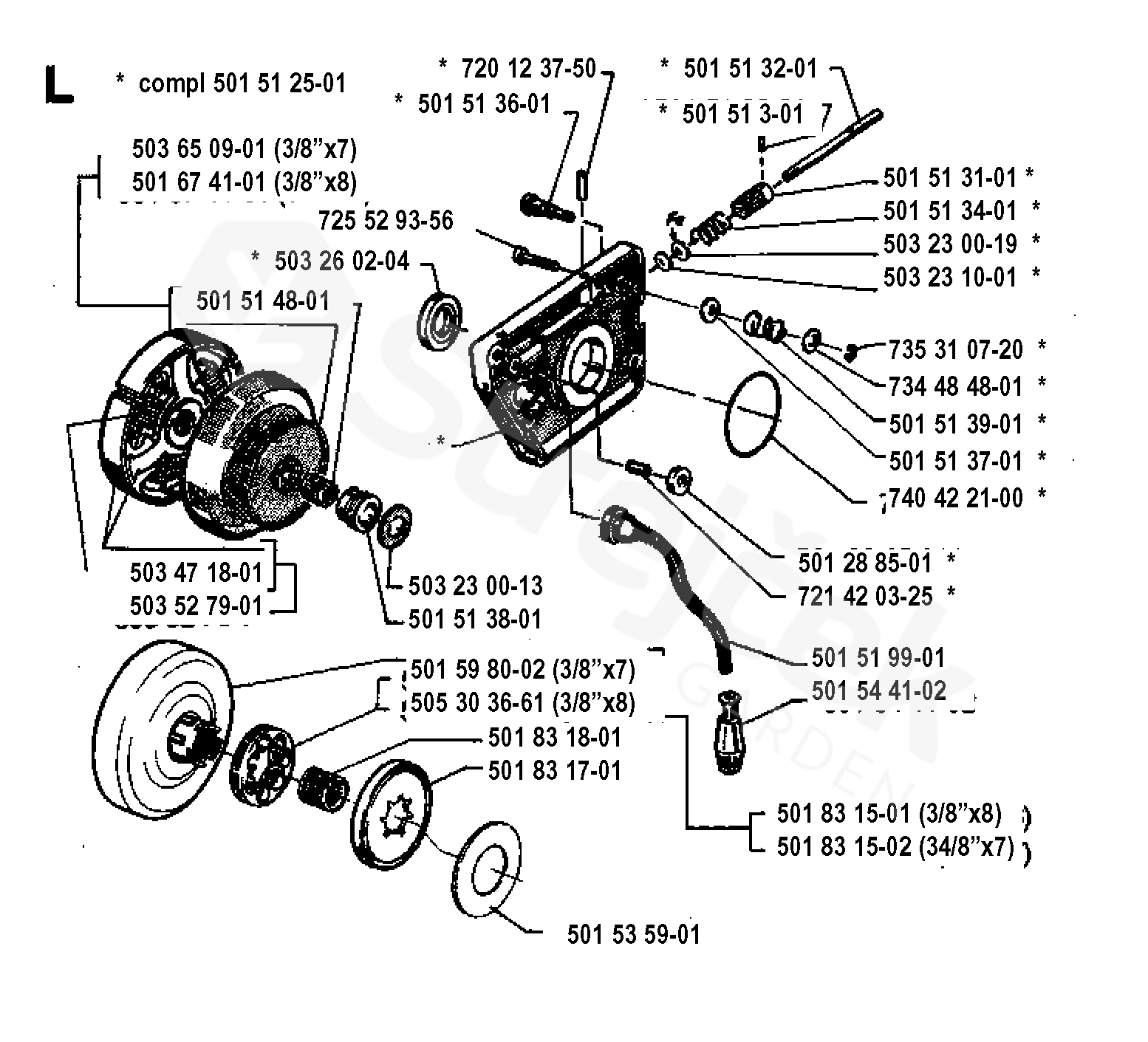

CLUTCH & OIL PUMP
272 XP 272 XP, 1993-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 272 XP, 1993-01
50151301 50151301
501288501 X-RING 2.9X6.46X1.78 501288501
501512501 OIL PUMP ASSY 501512501
501513101 GEAR WHEEL 501513101
501513201 SHAFT 501513201
501513401 SPRING 501513401
501513601 ADJUSTMENT SCREW 501513601
501513701 FIXING WASHER 501513701
501513801 GEAR WHEEL 501513801
501513901 SPRING 501513901
501514801 NEEDLE BEARING 501514801
501519901 OIL HOSE 501519901
501535901 WASHER 501535901
501544102 OIL SCREEN 501544102
501598002 RÁFEK
3/8X7 		501598002
501674101 CLUTCH DRUM 3/8 X 8
3/8X8 		501674101
501831501 CLUTCH DRUM ASSY
3/8X8 		501831501
501831502 CLUTCH DRUM ASSY
34/8X7 		501831502
501831701 WASHER 501831701
501831801 NEEDLE BEARING 501831801
503230013 WASHER 503230013
503230019 WASHER 503230019
503231001 WASHER 503231001
503260204 SEALING RING 503260204
503471801 CLUTCH SPRING 503471801
503527901 CLUTCH ASSY 503527901
503650901 CLUTCH DRUM ASSY
3/8X7 		503650901
505303661 RÁFEK 3/8 x 8T
3/8X8 		505303661
720123750 PARALLEL PIN 720123750
721420325 PINNE FRP-LS3X6 OXSV 721420325
725529356 SCREW IHSCM 725529356
734484801 WASHER 734484801
735310720 E-CLIP 735310720
740422100 O-RING 740422100
