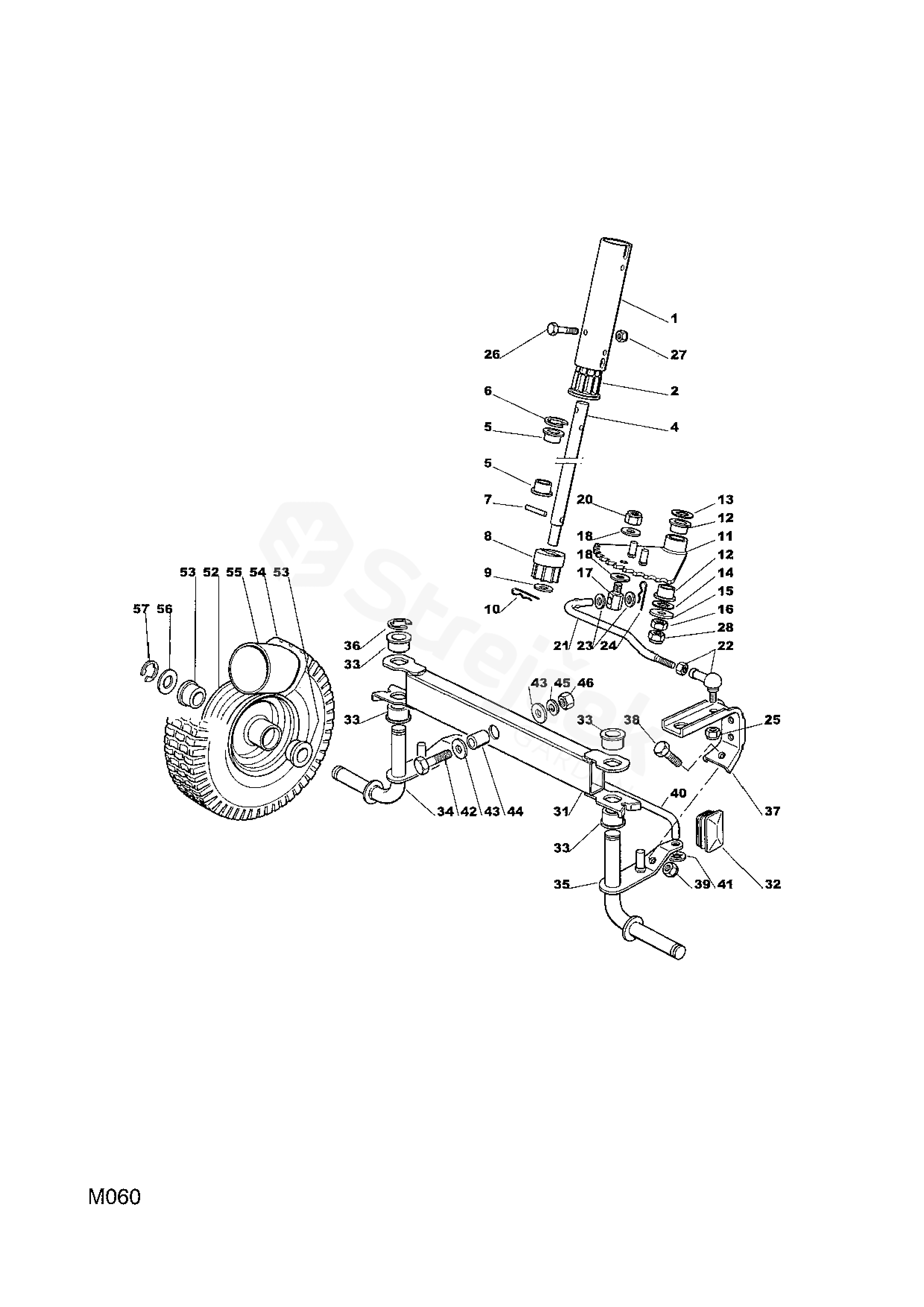

725M 725M (2002) [13-2657-12]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 725M (2002) [13-2657-12]

1	Column Extension	1136-0955-01
2	Bushing	1136-0939-01
4	Steering Column	1136-0970-01
5	Bushing	1136-0938-01
6	Circlip	9652-0015-04
7	Locating Pin	9595-0262-00
8	Steering Pinion	1136-0408-01
9	Washer	9699-0037-02
10	Elastic Pin	9598-0002-02
11	Ring Gear	1136-1095-01
12	Bushing	1136-0938-01
13	Washer	1136-0993-01
14	Washer	1136-0089-01
15	Washer	9699-0056-02
16	Nut	9799-0831-02
17	Pivot Bolt	1136-0243-01
18	Washer	1136-0308-01
20	Lock Nut	9747-1031-02
21	Rod	1136-0935-01
22	Ball Joint	1136-0093-01
23	Washer	1136-0308-01
24	Elastic Pin	9598-0002-02
25	Nut	9747-0831-02
26	Screw	9997-0645-12
27	Lock Nut	9747-0631-02
28	Nut	9747-0831-02
31	Front Axle	1136-1064-01
32	Cap	1136-0842-01
33	Bushing	1136-0938-01
34	Stub Axle-Rh	1136-1076-01
35	Stub Axle-Lh	1136-1077-01
36	Snap Ring	1136-0805-01
37	Support	1136-1011-01
38	Screw	9997-0820-16
39	Nut	9747-0831-02
40	Tie Rod	1136-1015-01
41	Locking washer	9675-0012-02
42	Screw	9997-1260-02
43	Washer	1136-0016-01
44	Spacer	1136-0165-01
45	Washer	9683-0055-02
46	Nut	9799-1231-02
52	Rim	1136-1066-01
53	Bushing	1136-0936-01
54	Tire	1136-0976-01
55	Inner Tube	1136-0978-01
56	Washer	9699-0104-02
57	Snap Ring	1136-0805-01
