Spare parts > Mountfield > Lawn Tractor > 725M 725M (2004) [13-2657-14] > Mower deck lift
Back to

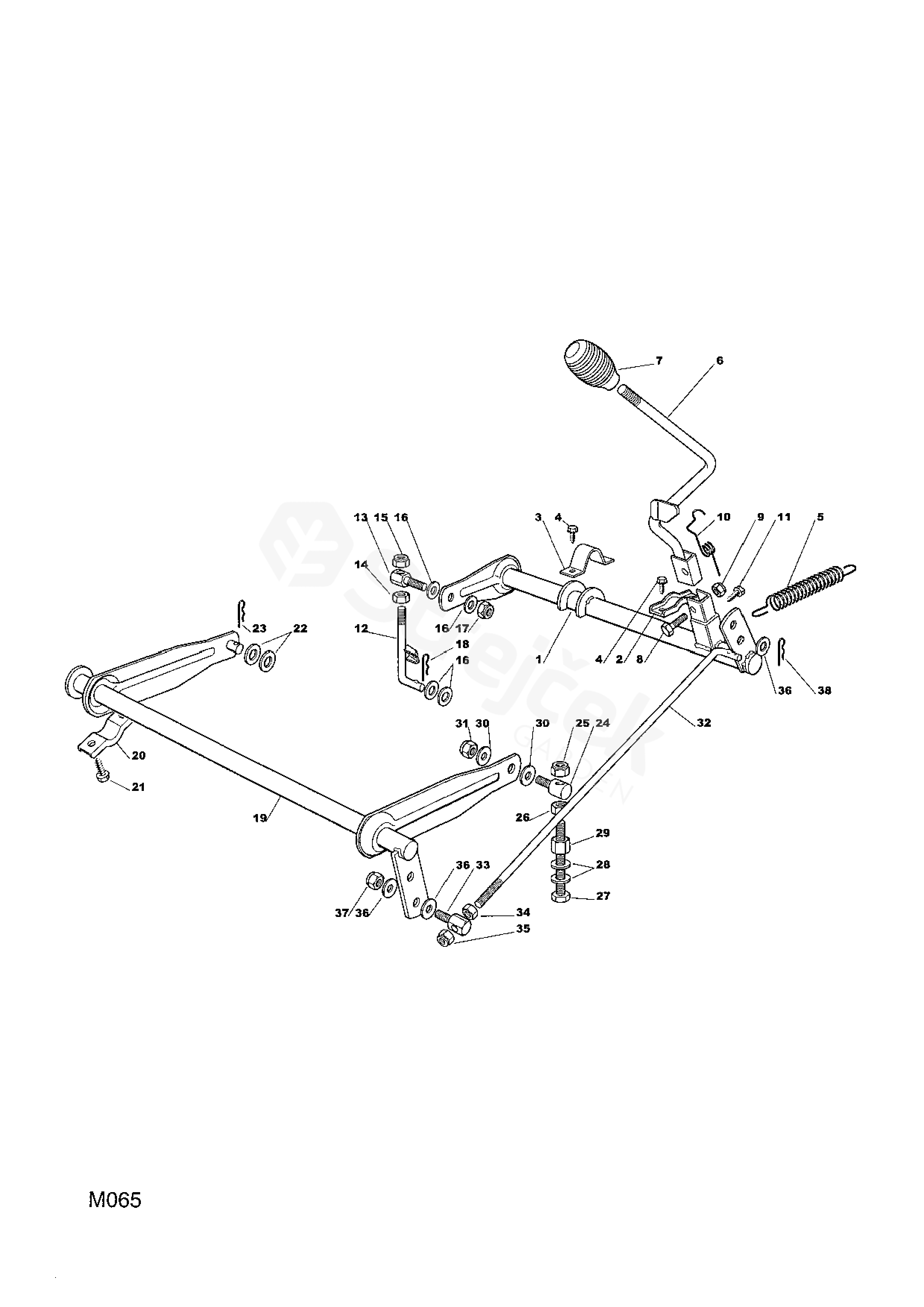

Mower deck lift
725M 725M (2004) [13-2657-14]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 725M (2004) [13-2657-14]
1 Axle 1136-1060-01
2 Clamp 1136-0406-01
3 Clamp 1136-0253-01
4 Screw 1136-1634-01
5 Spring 1136-0961-01
6 Lift Lever 1136-1082-01
7 Knob 1136-0197-01
8 Screw 9997-0635-12
9 Lock Nut 9747-0631-02
10 Spring 1136-0966-01
11 Screw 1136-0813-01
12 Rod 1136-1063-01
13 Pivot Bolt 1136-0243-01
14 Nut 9799-1031-02
15 Lock Nut 9747-1031-02
16 Washer 1136-0308-01
17 Lock Nut 9747-1031-02
18 Hair Pin 1136-0095-01
19 Axle 1136-1061-01
20 Clamp 1136-0406-01
21 Screw 9847-8119-16
22 Washer 1136-0308-01
23 Hair Pin 1136-0095-01
24 Pivot Bolt 1136-0226-01
25 Lock Nut 9747-1031-02
26 Nut 9799-1031-02
27 Screw 9997-1090-12
28 Washer 9699-0035-02
29 Nut 1136-0002-01
30 Washer 1136-0308-01
31 Lock Nut 9747-1031-02
32 Rod 1136-0934-01
33 Pivot Bolt 1136-0235-01
34 Nut 9799-0831-02
35 Nut 9747-0831-02
36 Washer 1136-0309-01
37 Nut 9747-0831-02
38 Hair Pin 1136-0095-01
