Spare parts > Mountfield > Trimmer/Brushcutter > MB 2501 MB 2501 (2010) > Handle-transmission
Back to

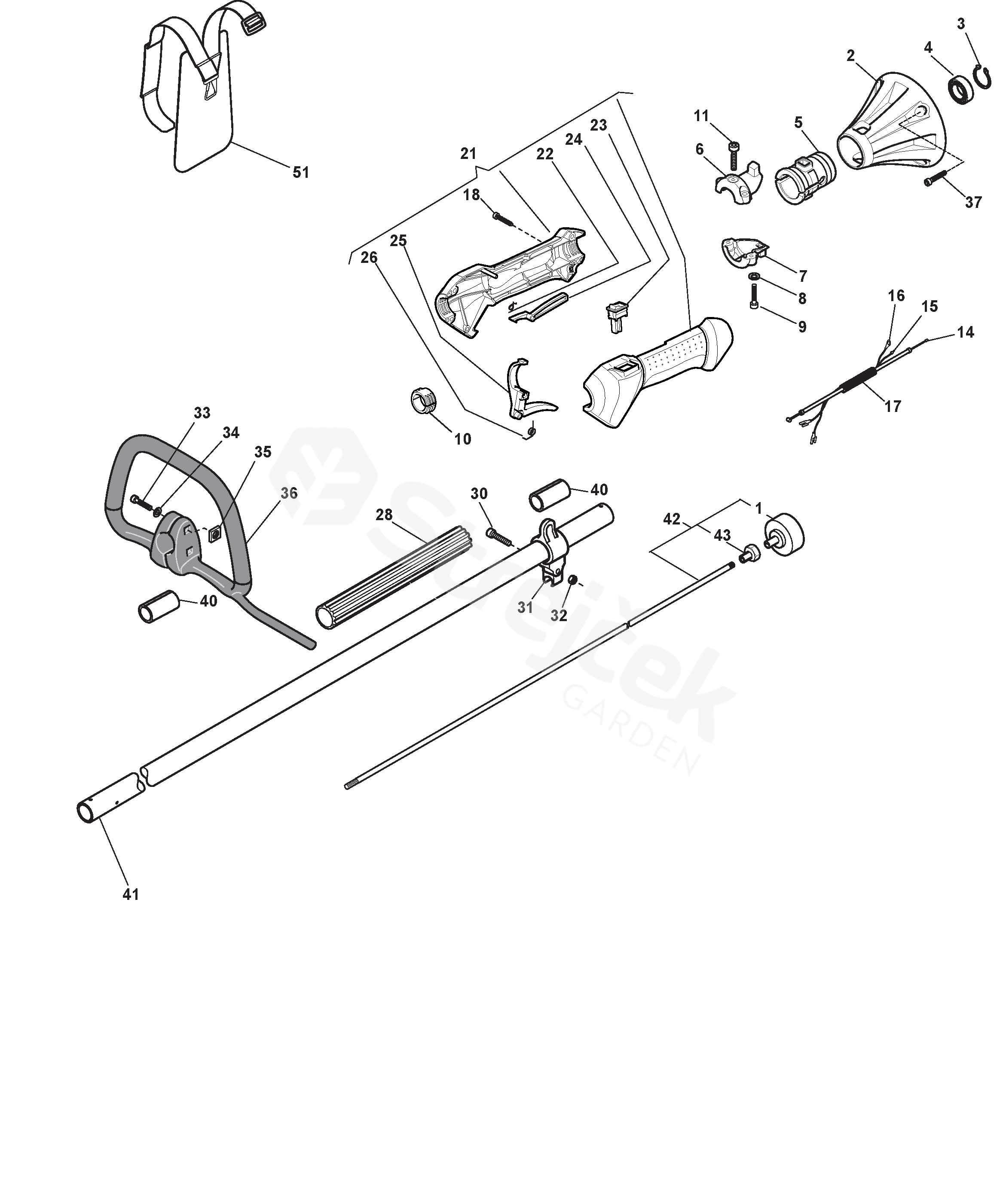

Handle-transmission
MB 2501 MB 2501 (2010)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MB 2501 (2010)
1 Clutch Drum Assy 3L4121881/1
2 Support Transmission Assy 323782006/0
3 Seeger Ring 3353080
4 Ball Bearing 3112170
5 Grommet 323275018/0
6 Support 323720002/0
7 Support 323720003/0
8 Washer 2370050
9 Screw 2135030
10 Reduction 323655003/0
11 Screw 2135010
14 Throttle Cable 123066016/0
15 Coil-Switch Cable 123065000/0
16 Earth Cable 123065014/0
17 Jacket Tube 323290000/0
18 Screw 123878055/0
21 Handle Assy 383300020/0
22 Spring 3654300
23 Stop Switch 3210970
24 Safety Lever 323315075/0
25 Throttle Lever 323315074/0
26 Spring 1L3654270/1
28 Spacer 323170000/0
30 Screw 2135040
31 Brkt, Eng Mounting 323780000/0
32 Nut 2412030
33 Screw 2135050
34 Flat washer 2312090
35 Nut 2461030
36 Front Handle 323300001/0
37 Screw 2132110
40 Reduction 3721410
41 Trasmission Pipe Ass.Y 383869067/0
42 Transmission Shaft Assy 4251410
43 Bearing Hub 3642221
51 Harness 4253460
