Spare parts > Mountfield > Trimmer/Brushcutter > MB 2501 MB 2501 (2010) > Gear case
Back to

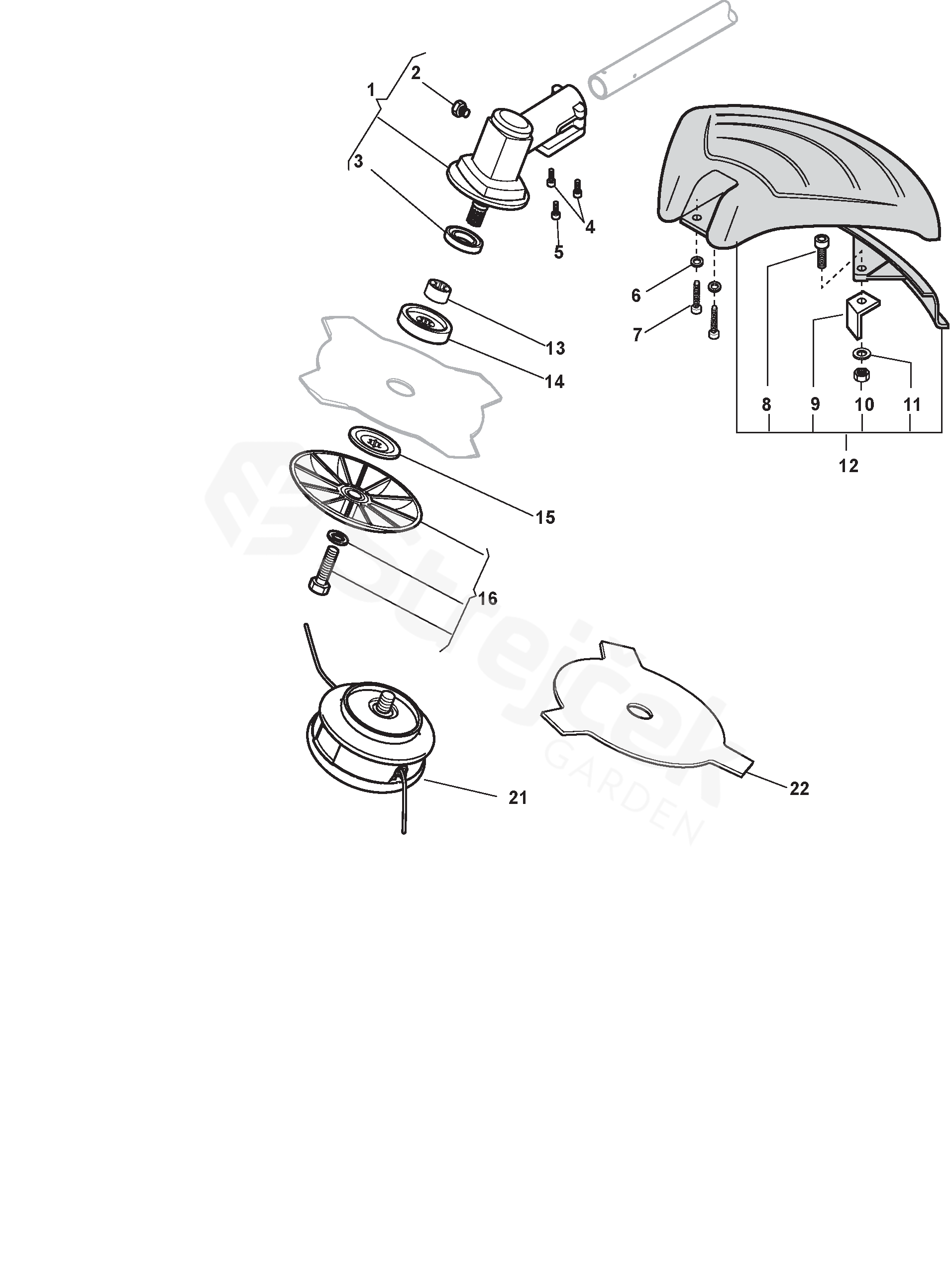

Gear case
MB 2501 MB 2501 (2010)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MB 2501 (2010)
1 Gear Case Assy Ø24 3L4252770/2
2 Screw 2653460
3 Oil seal 3121180
4 Screw 2135050
5 Screw 2653090
6 Washer 2312150
7 Screw 2135060
8 Screw 2135030
9 Line Cutter Blade 3615000
10 Nut 112154330/0
11 Washer 2312150
12 Safety Cover Assy 8563570
13 Collar 3660680
14 Upper Ring Nut 3641650
15 Lower Ring Nut 3612650
16 Stabilizer 4560610
21 2 Hedges Nylon Head 3L4353240/1
22 3 Teeth Disc 6031172
