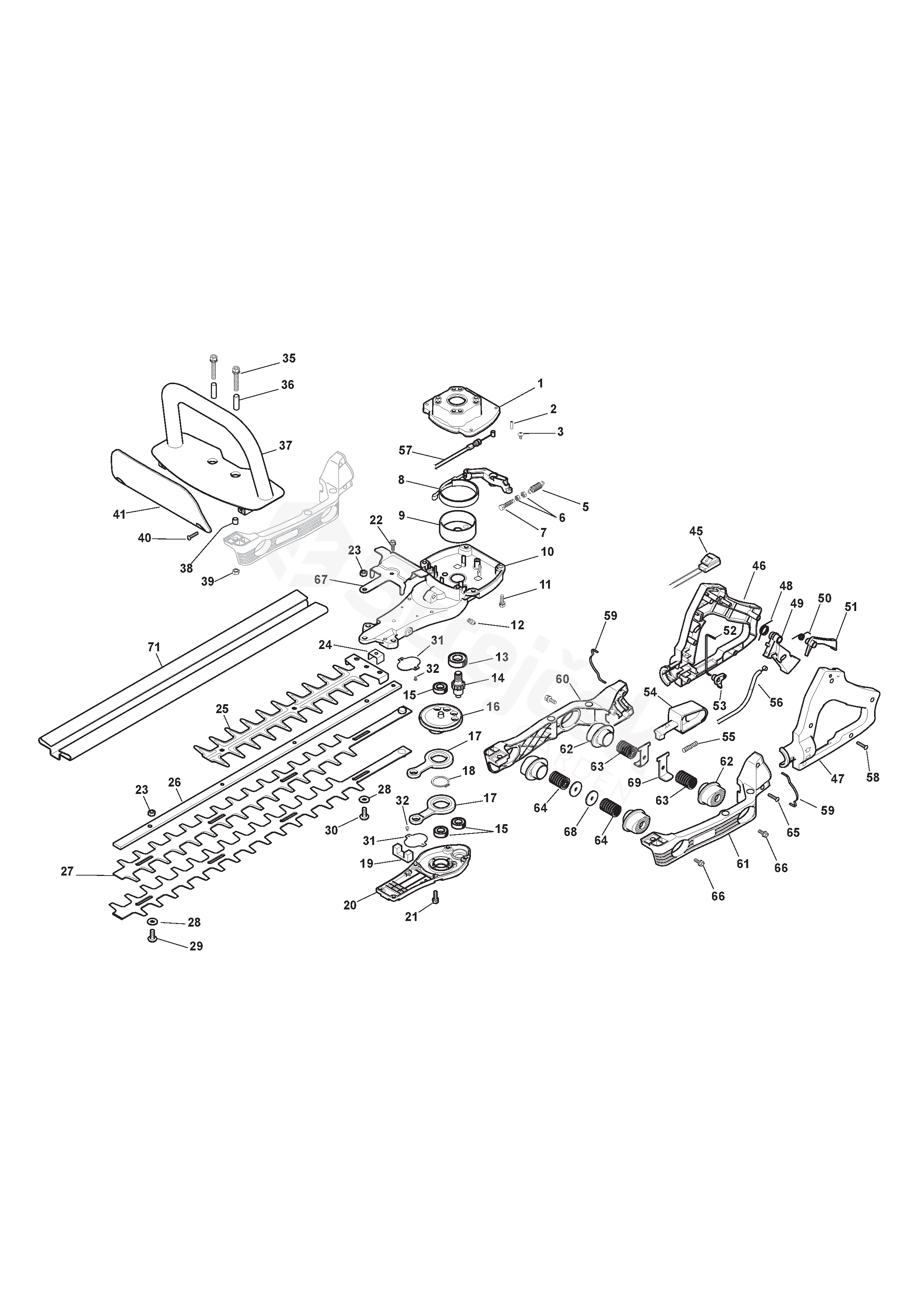

MHM 2622 MHM 2622 (2012)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For MHM 2622 (2012)

1	Clutch Housing	6990154
2	Pin	6990149
3	Screw	6990140
5	Brake Spring	6990129
6	Nut	6990163
7	Screw	6990162
8	Brake Band	123448006/0
9	Clutch Drum Assy	123050009/0
10	Upper Case	6990177
11	Screw	6990141
12	Grease Dispenser	6990153
13	Needle Bearing	6990152
14	Pinion	6990155
15	Needle Bearing	6990151
16	Gear	6990156
17	Connecting Rod	6990157
18	Snap Ring	6990150
19	Glide shoe	6990126
20	Lower Case	6990178
21	Screw	6990141
22	Screw	6990214
23	Nut	6990146
24	Retainer	6990128
25	Blade Guard	6990127
26	Blade Holder	6990159
27	Blade Please order 2x blades	6990176
28	Washer	6990121
29	Screw	6990125
30	Screw	6990137
31	Shoe	6990158
32	Screw	6990139
35	Screw	6990143
36	Spacer	6990148
37	Front Handle	6990172
38	Spacer	6990147
39	Nut	6990146
40	Screw	6990145
41	Guard	6990171
45	Stop Switch	6990136
46	Right Handgrip	6990166
47	Left Handle	6990165
48	Spring	6990132
49	Throttle Lever	6990167
50	Safety Lever Spring	6990133
51	Safety Lever	6990168
52	Gearshift	6990164
53	Hook	6990170
54	Gearshift	6990169
55	Spring	6990123
56	Throttle Cable	123066022/0
57	Cable, Thread Engine Brake	123066023/0
58	Screw	6990144
59	Gasket	6990138
60	Right Case	6990174
61	Left Case	6990173
62	Shock Absorber	6990175
63	Spring	6990131
64	Spring	6990130
65	Screw	6990144
66	Screw	6990214
67	Bracket	6990217
68	Washer	6990213
69	Bracket	6990216
71	Blade Cover	6990124
