Spare parts > Husqvarna > Scarifiers & Dethatchers > DT22 DT22H5NRA, 968999131, 2005-11 > BAGGER
Back to

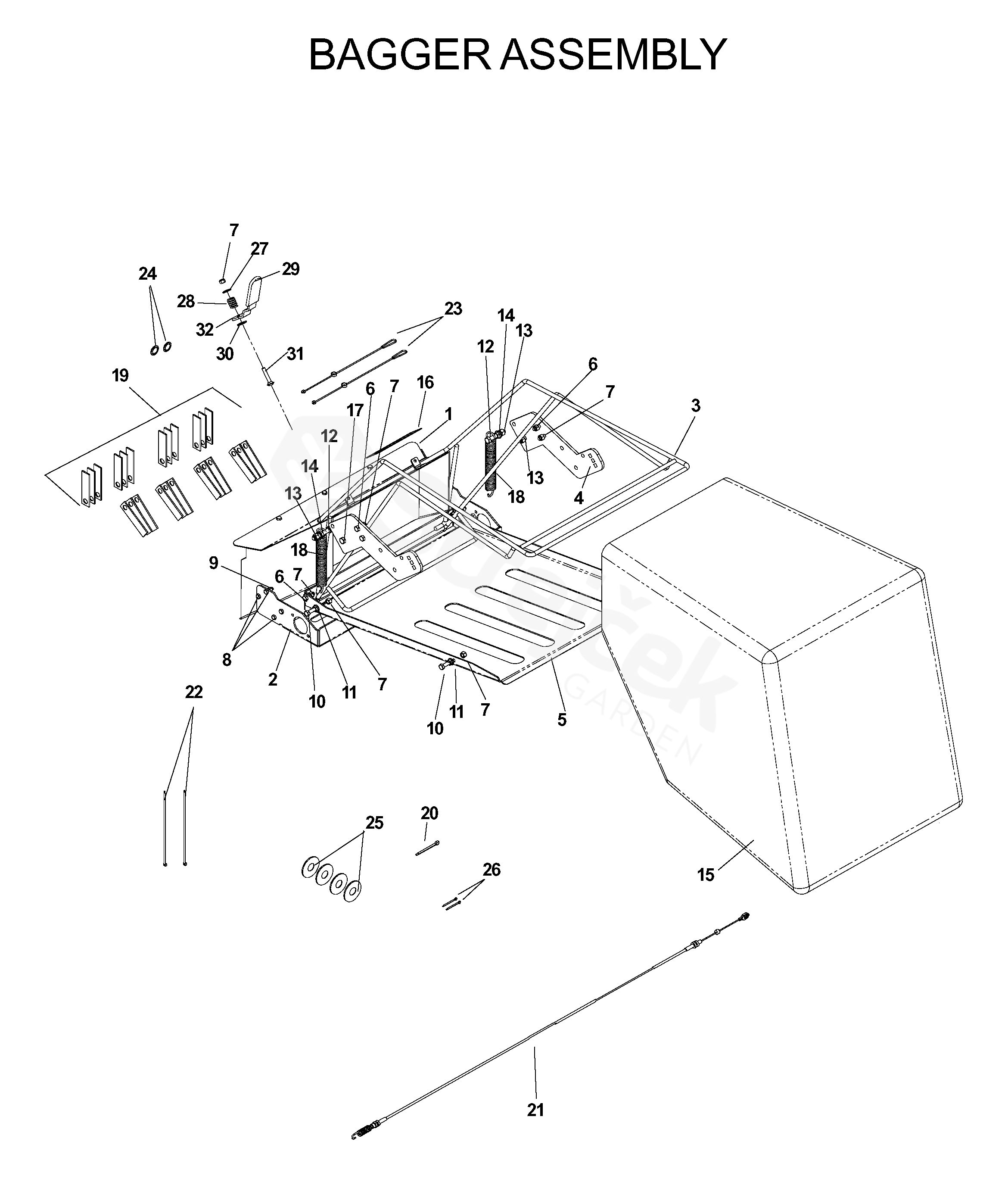

BAGGER
DT22 DT22H5NRA, 968999131, 2005-11
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For DT22H5NRA, 968999131, 2005-11
1 CHUTE 539106799
2 TRAY, ORANGE 539106803
3 FRAME 539107242
4 BOLT 539106846
5 SAFETY DOOR, ORANGE 539106835
6 SCREW 539990209
7 MATICE 539990717
8 SCREW 539990580
9 MATICE 539976978
10 SCREW 539990669
11 LOCK NUT 539990585
12 SCREW 539990588
13 END BRACKET 539976979
14 NUT 539990613
15 BAG 540005464
16 LABEL WARNING 539976583
17 SCREW 539990563
18 SPRING 539107315
19 BLADE KIT(56PCS) 539109771
20 SPLIT PIN 539990297
21 WIRE 539106827
22 TIE WRAP 539976856
23 RETAINER 539102563
24 RING 540053411
25 WASHER 539000436
26 PIN RETAINING SCREW 539099037
27 PODLOŽKA 539990692
28 SPRING 539976438
29 GRIP 539110865
30 PODLOŽKA 539990517
31 SCREW 539990861
32 HANDLE 539110982
