Spare parts > Atco > Lawn Mower > QUATTRO 16S 4 in 1 QUATTRO 16S 4 in 1 (2019) > Height Adjusting
Back to

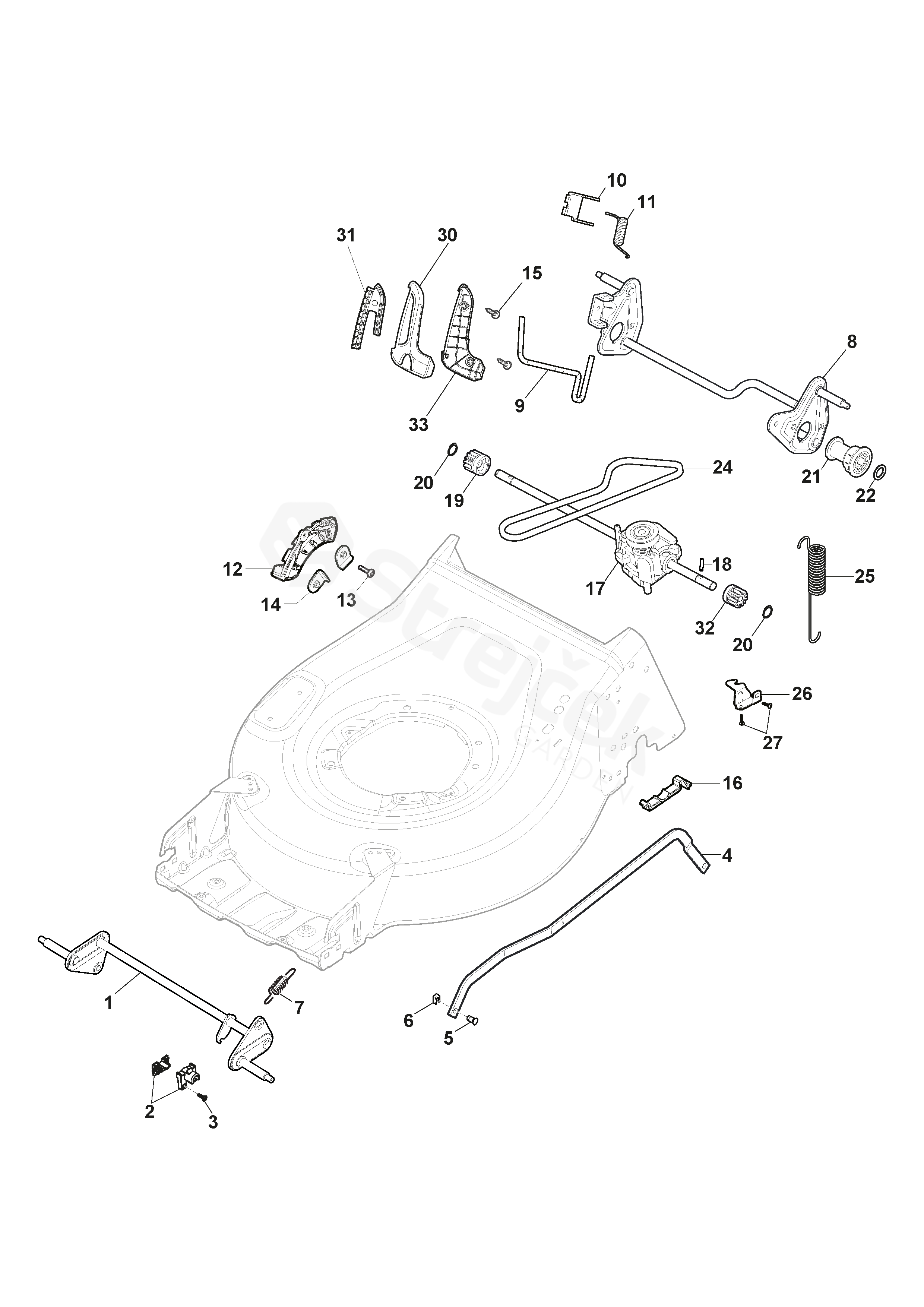

Height Adjusting
QUATTRO 16S 4 in 1 QUATTRO 16S 4 in 1 (2019)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For QUATTRO 16S 4 in 1 (2019)
1 Axle, Front Wheels 381302937/1
2 Support 322785305/1
3 Screw 112728697/0
4 Rod, Height Adjustment 322869731/0
5 Pin 122519823/0
6 Benzing Ring 112000930/0
7 Spring 122450494/0
8 Rear Wheel Axle 381302851/0
9 Lever, Height Adjustment 322321553/0
10 Plate 322557179/0
11 Spring 122446198/1
12 Sector, Height Adjustment 322735608/0
13 Screw 112727802/0
14 Plate 322545232/0
15 Screw 112728696/0
16 Support 322785500/0
17 Gear Box 181003114/0
18 Pin 122753000/0
19 Right Pinion 122570110/1
20 Seeger 112608600/0
21 Bushing 322042066/0
22 Washer 112521371/0
24 Belt
Stiga Packed into 135063710/0 		1111-9297-01
25 Spring 122430254/0
26 Bracket 322778473/1
27 Screw 112728699/0
30 Handle
Black 		322394550/0
31 Handgrip 322394551/0
32 Left pinion 122570120/1
33 Lower Handgrip
Grey NCS S8000-N 		322394560/0
