Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > LC48 VE LC48 VE, 96697540400, 2011-01 > HANDLE
Back to

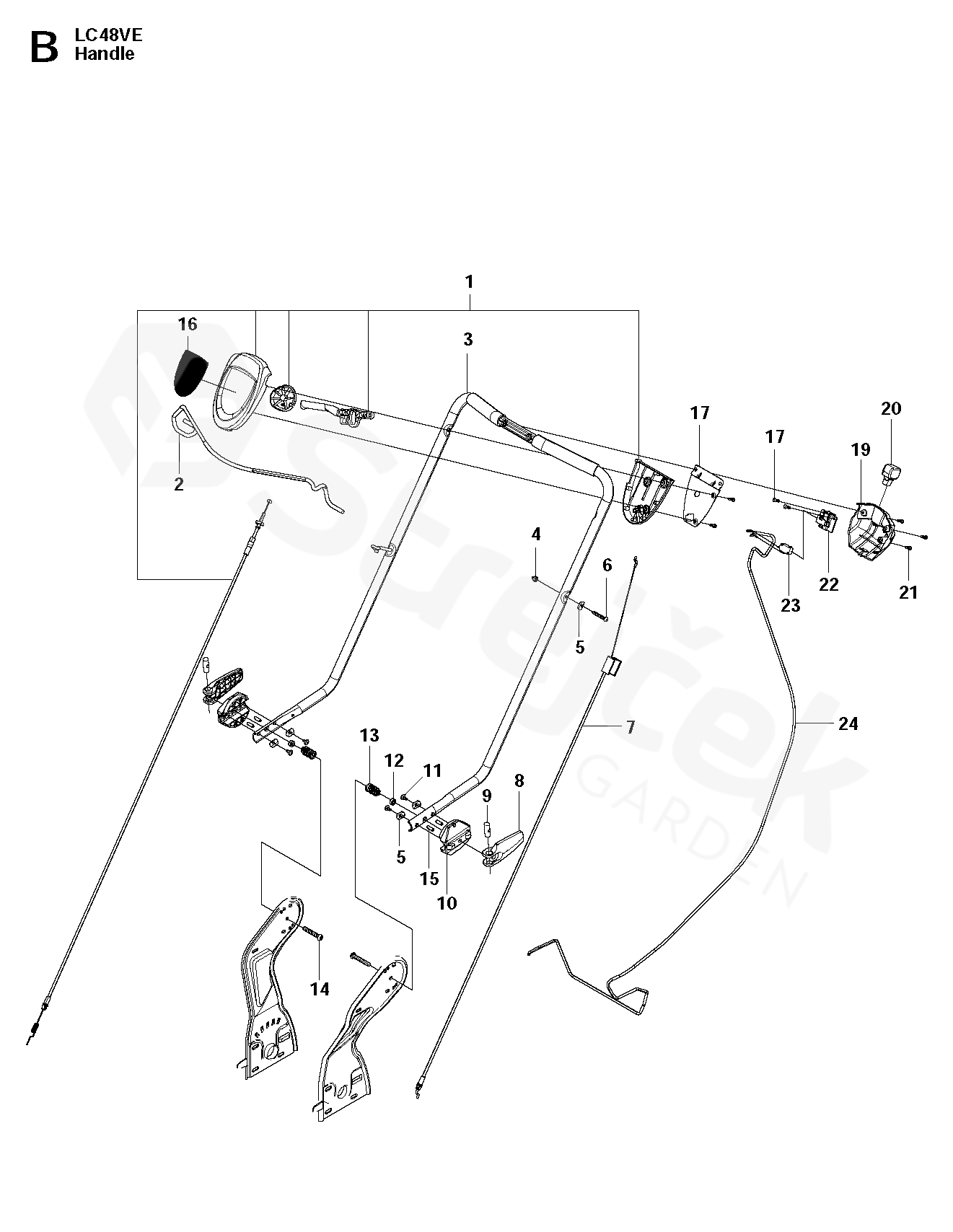

HANDLE
LC48 VE LC48 VE, 96697540400, 2011-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LC48 VE, 96697540400, 2011-01
1 CONTROL 544932905
2 BAIL ARM 502289301
3 HANDLE ASSY 522748401
4 CAP NUT 502305001
5 PODLOŽKA 531204961
6 SCREW ITXPANTT 505557702
7 CABLE 522937401
8 LEVER 504138301
9 PEN 505531101
10 ADJUSTMENT DISC 504138901
11 SCREW ITXPANTT 502435203
12 LOCKING NUT 522919401
13 SPRING 504638101
14 SCREW ITXPANTT 505524601
15 NEEDLE ROLLER 505508101
16 LABEL 544928101
17 BRACKET 532187097
18 SCREW ITXPANT 502435301
19 COVER 510237401
20 IGNITION KEY 522036001
21 SCREW ITXPANT 574391401
22 ELECTRIC START 510088301
23 MICRO SWITCH 525486301
24 ELECTRIC CABLE 515996201
