Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > ROYAL 47RC ROYAL 47RC 1997-02 > HANDLE & CONTROLS
Back to

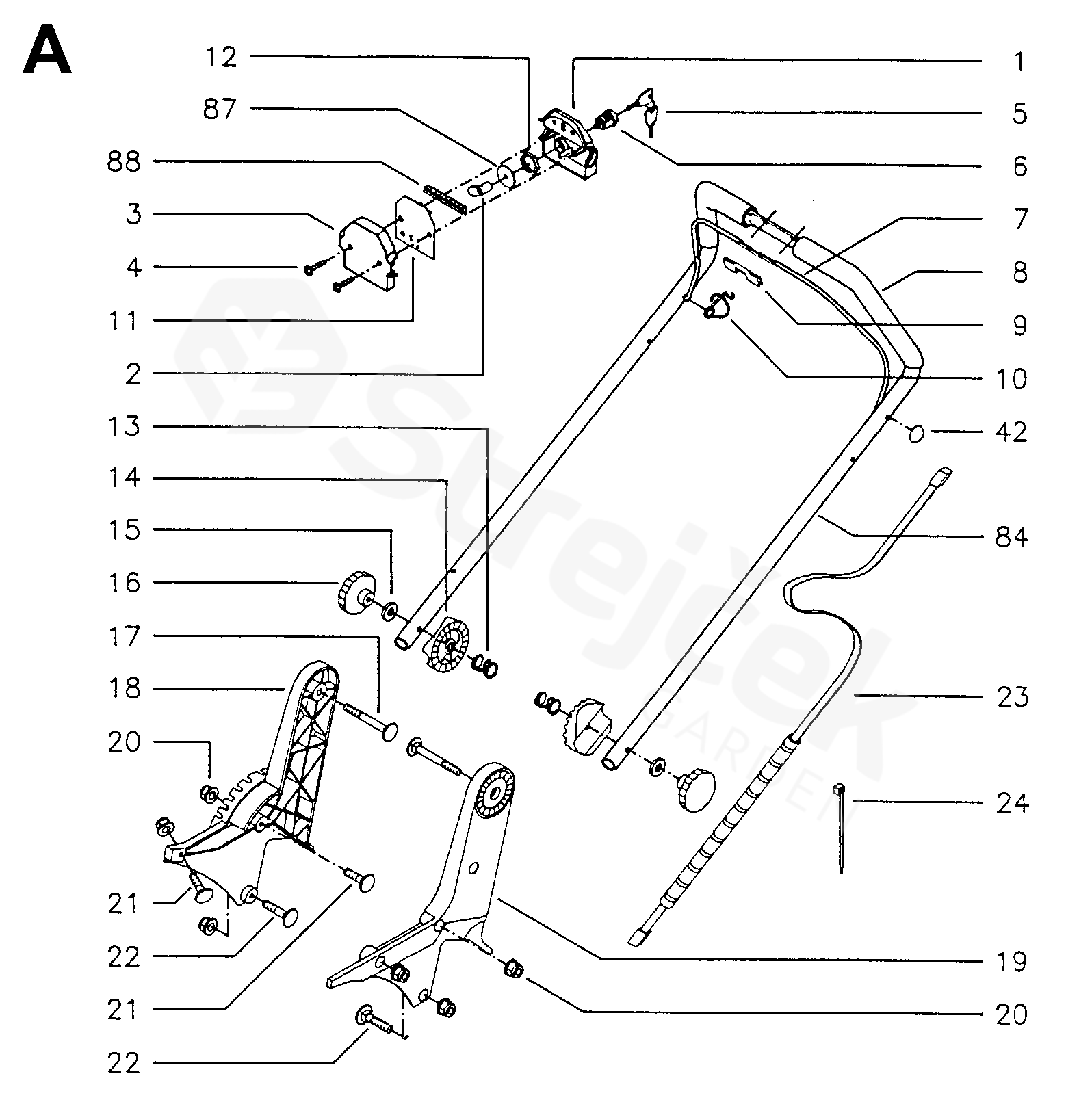

HANDLE & CONTROLS
ROYAL 47RC ROYAL 47RC 1997-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ROYAL 47RC 1997-02
1 COVER 516879111
2 CAM 517831311
3 COVER 517831111
4 SCREW CRPANT 729525971
5 KEY 516635901
6 CYLINDER 516883700
7 LOOP 516634507
8 ABSORBER 516884009
9 BRACKET 517770325
10 SPRING 516635201
11 PRINTED CIRCUIT CARD 516877800
12 NUT 516935201
13 SPRING 516440601
14 CLAMP 516870511
15 WASHER 515796009
16 KNOB 516870411
17 BOLT 515711865
18 BRACKET 516870611
19 BRACKET 516884111
20 HEXAGON NUT FLANGE 731711651
21 SCREW RSQM 727637001
22 SCREW 515711625
23 CABLE 516884400
24 HOOP 516844509
42 WASHER 516922500
84 HANDLE 516634811
87 WASHER 517831211
88 SEALING 517831500
