Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > LC141C LC141C, 967099301, 2016-10 > MOTOR
Back to
MOTOR
LC141C LC141C, 967099301, 2016-10

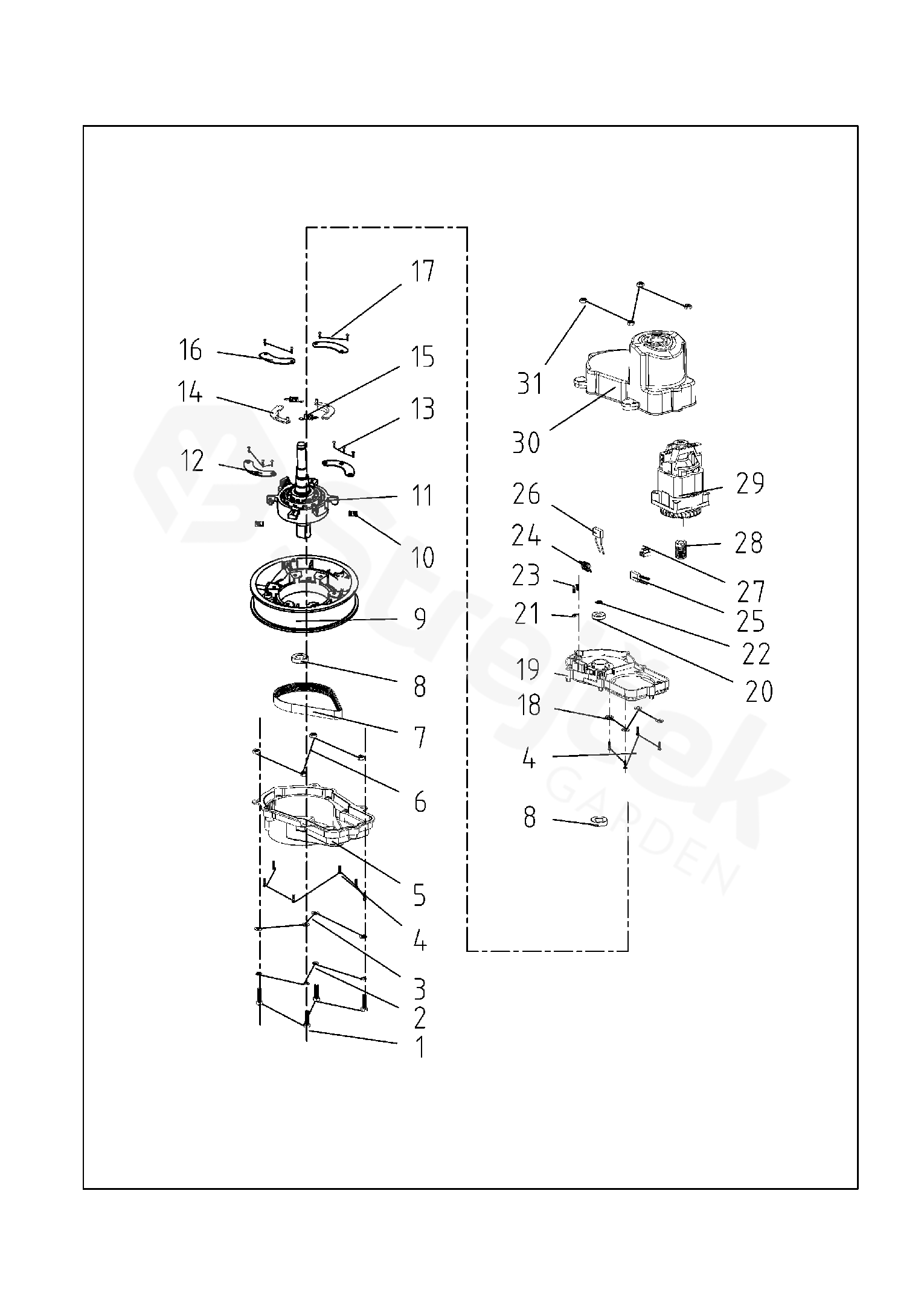

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LC141C, 967099301, 2016-10
1 BOLT 579684101
2 PRUŽNÁ PODLOŽKA 579684201
3 PODLOŽKA 579686001
4 SCREW 589794201
5 CANISTER 589794301
6 HEXAGON NUT 587913301
7 BELT 589799601
8 BEARING 589794601
9 BELT COVER 589794701
10 DRAW SPRING 589794801
11 HRÍDEL 589794901
12 PODLOŽKA 589795001
13 SCREW 579685501
14 FIXING PLATE 589797801
15 PRUŽINA 589797901
16 PODLOŽKA 589798001
17 SCREW 579685501
18 LOCKWASHER 589798201
19 FIXING PLATE 589798301
20 BEARING 589798401
21 DESKA 579685701
22 CIRCLIP 589798501
23 SCREW 579685501
24 INDUCTOR 589798701
25 CONTROL 589799001
26 CAPACITOR 589798801
27 CONNECTING BOX 589799101
28 PULLEY 589799201
29 MOTOR 589799301
30 COVER 589799401
31 MATICE 579685801
