Castelgarden
>
Front mowers
>
XM 160 HD XM 160 HD (2005) [13-2783-85]
>
Hand controls
Back to
XM 160 HD
XM 160 HD (2005) [13-2783-85]
Hand controls
XM 160 HD
XM 160 HD (2005) [13-2783-85]

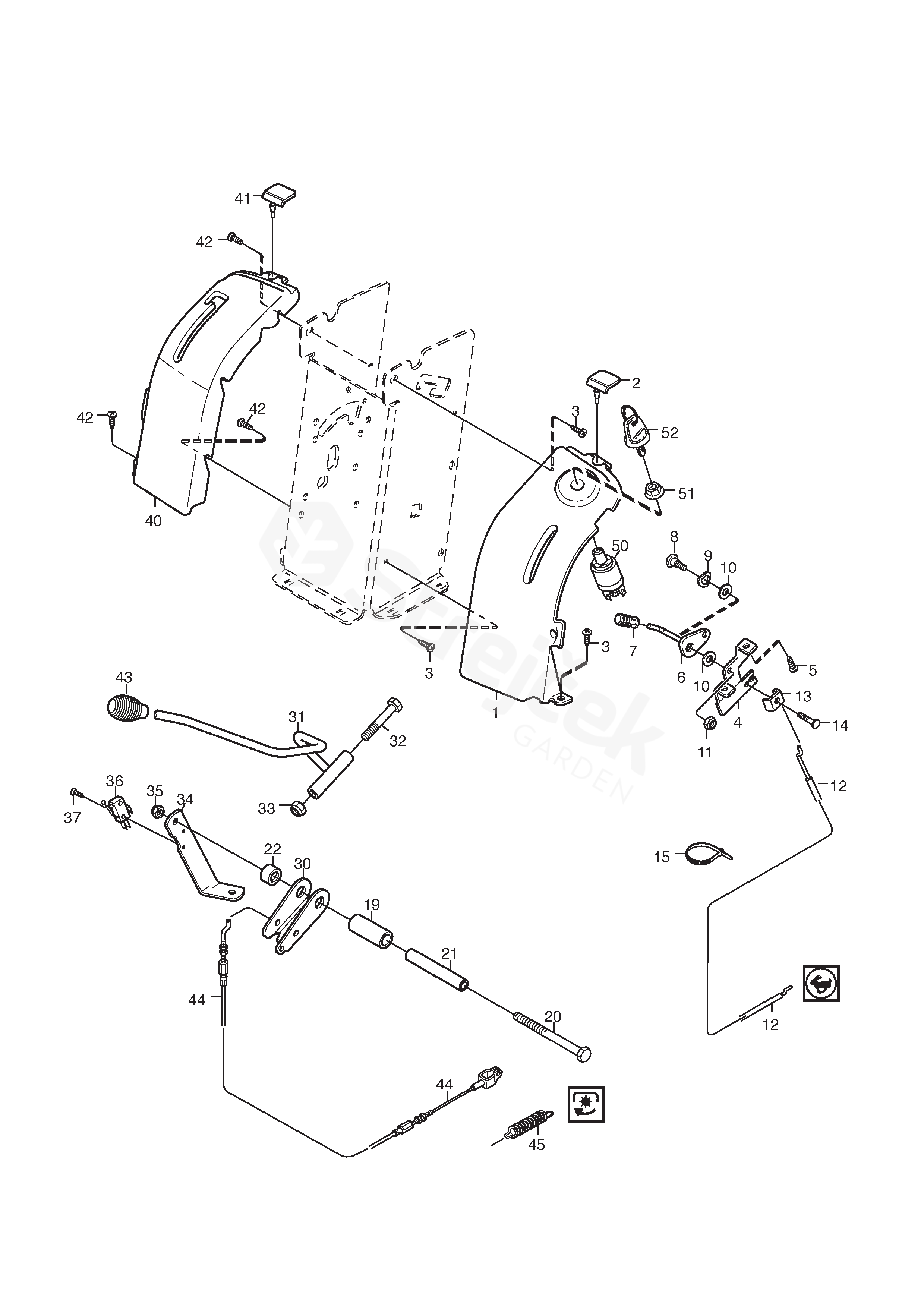

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
XM 160 HD (2005) [13-2783-85]
1
Dashboard-Lh (Grey)
1134-5286-03
2
Absorber
1134-5531-01
3
Screw
9893-0616-16
4
Bracket
1134-5357-01
5
Screw
9838-9516-12
6
Throttle Cable
1134-4077-01
7
Knob
1134-5563-01
8
Screw
1134-0240-00
9
Washer
9694-0001-00
10
Washer
1134-4242-01
11
Nut
9747-0831-02
12
Throttle Cable
1134-1597-13
13
Wire Clamp
9500-9991-00
14
Screw
9943-0516-16
15
Cable Holder
9579-0003-00
19
Nut
9739-0831-22
20
Screw
9997-0812-02
21
Spacer
1134-5274-02
22
Spacer
1134-3047-01
30
Control Bracket
1134-5271-01
31
Control Lever
1134-5276-01
32
Screw
9997-0890-12
34
Strut
1134-5356-01
36
Microswitch
9400-0312-01
37
Screw
9840-7716-16
40
Dashboard Hst-Rh (Grey)
1134-5285-06
43
Knob
1134-5564-01
44
Pto Cable
1134-3573-06
45
Spring
1134-1242-02
50
Ignition Switch
1134-4093-01
51
Nut
1134-4749-01
52
Ignition Key
1134-4734-01
