Spare parts > Castelgarden > Lawn Tractor > XE 80 VD XE 80 VD (2013) > Cutting Plate Lifting
Back to

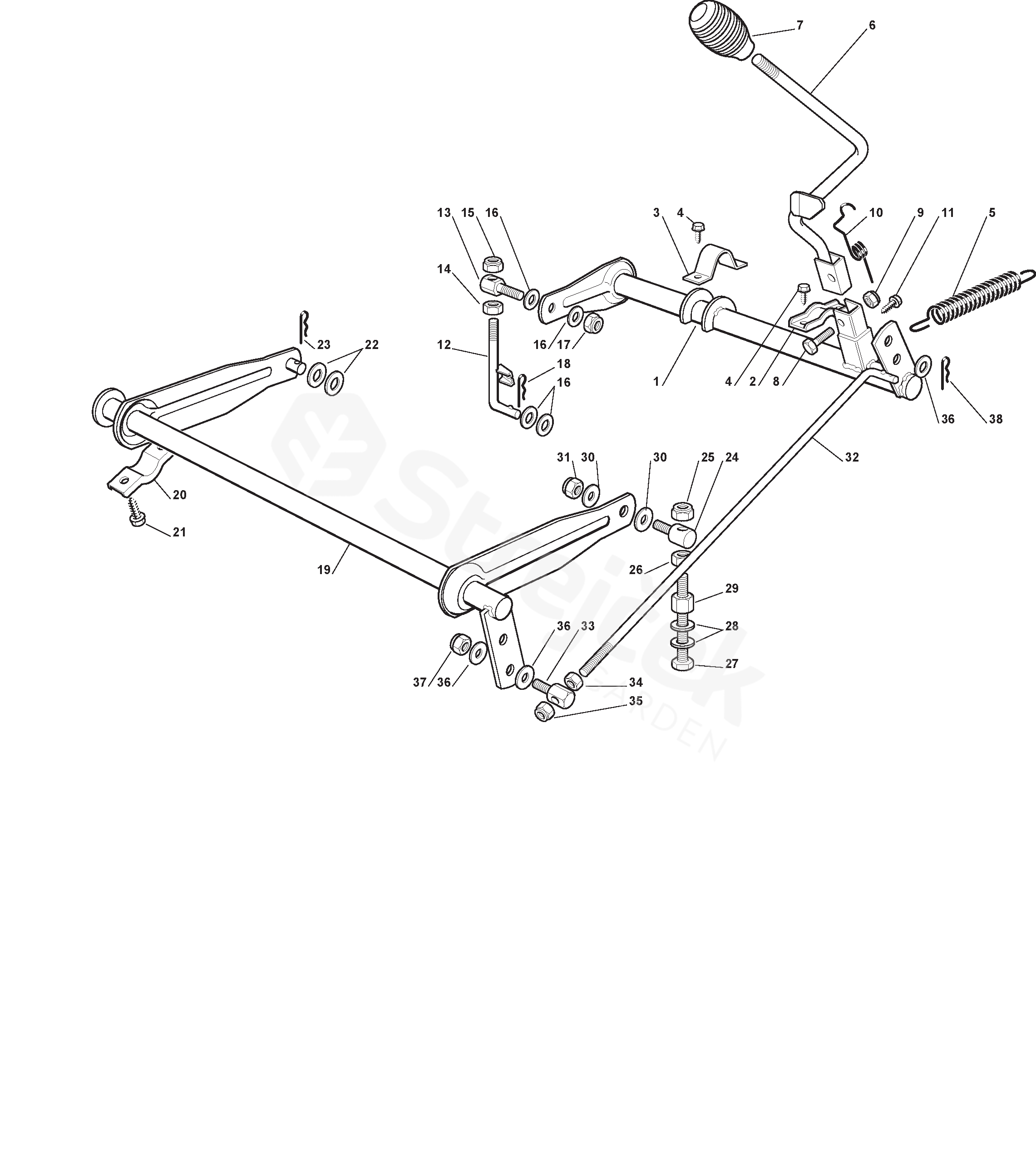

Cutting Plate Lifting
XE 80 VD XE 80 VD (2013)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For XE 80 VD (2013)
1 Rear Deck Lifting Axle Ass.Y 384001017/0
2 Plate 327546015/1
3 Plate 325547037/0
5 Spring 127430568/0
6 Deck Lifting Lever 384317075/0
7 Knob 125394510/0
8 Screw 112674700/0
9 Nut 112154510/0
10 Spring 127430574/0
11 Screw 112729601/0
12 Rod 327034087/0
13 Pin 125510056/0
14 Nut 112295200/0
15 Nut 112156602/0
16 Washer 325670008/1
18 Cotter Pin 124487997/0
19 Axle 384001019/0
21 Screw 112731350/0
24 Pin 125510007/1
27 Screw 112794970/0
28 Washer 112521360/0
29 Nut 112154250/0
32 Lifting Deck Control Rod 127034065/0
33 Pin 125510040/1
34 Nut 112293200/0
35 Nut 112155000/0
36 Antifriction Washer 325670011/0
