Spare parts > Castelgarden > Lawn Tractor > HT 160H HT 160H (2011) > Engine - Honda
Back to

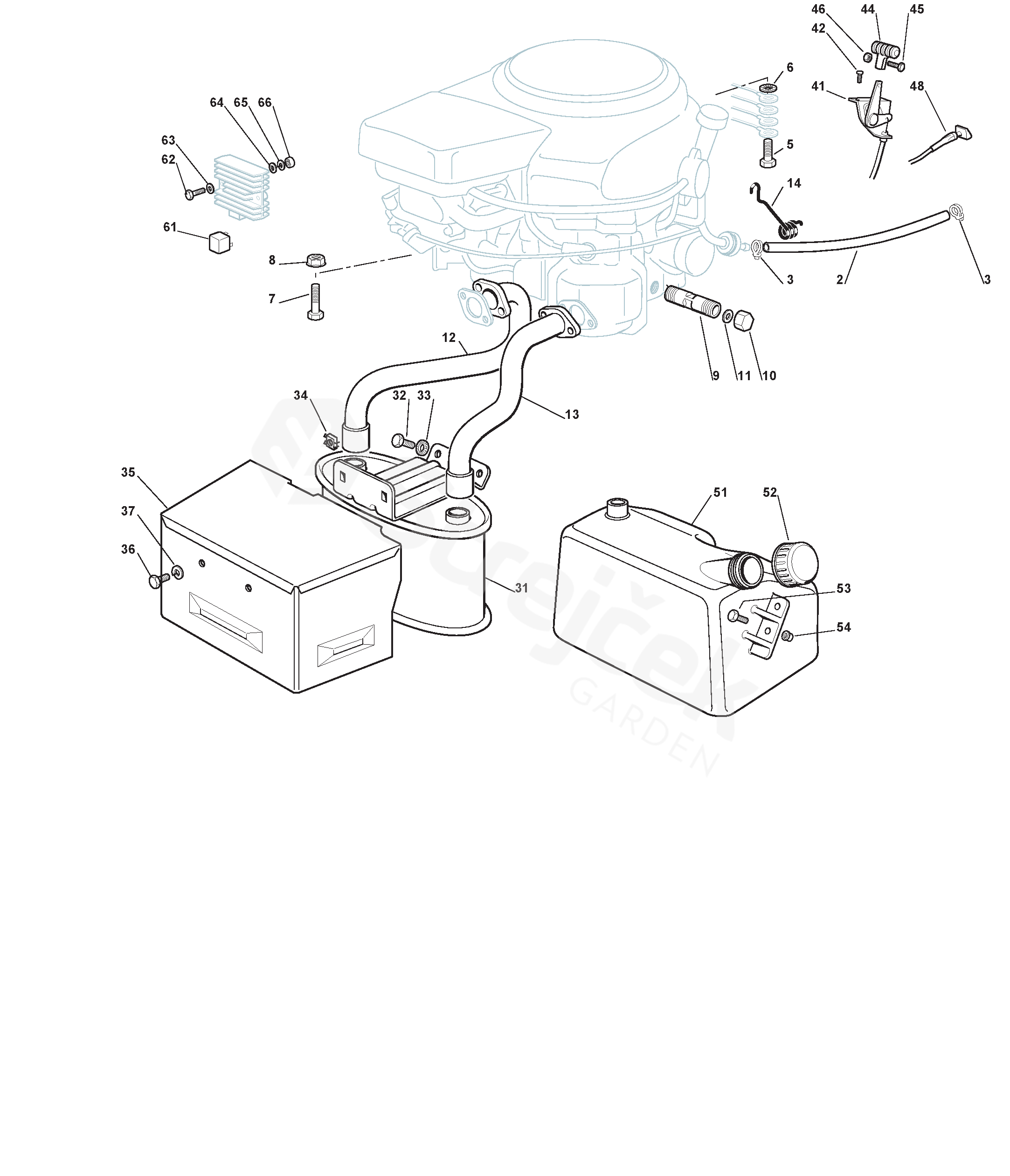

Engine - Honda
HT 160H HT 160H (2011)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For HT 160H (2011)
2 Connecting Tube 325869027/1
3 Fair Led 118375051/1
5 Screw 112735599/0
7 Screw 112691115/0
8 Nut 112154210/0
9 Oil Discharge Extension 125598051/0
10 Plug 118737849/0
11 Oil seal 118401001/0
12 Exaust Tube Right 118738221/0
13 Right Exhaust Connection 118738222/0
14 Spring 127430561/0
31 Muffler Assy 182750003/0
32 Screw 112793102/0
33 Washer 112540260/0
34 Nut 112360425/0
35 Muffler Protection 382598005/2
36 Screw 112792611/0
37 Grower 112583500/0
41 Accelerator 182000201/2
42 Screw 125943012/0
44 Knob 325592000/1
45 Screw 112726388/0
46 Nut 112290800/0
48 Choke Control 125090001/2
51 Tank 325735111/3
52 Cap 125795000/0
53 Screw 112788910/0
54 Rivet 112500092/0
61 Relay 133567000/0
62 Screw 112791500/0
63 Washer 112521330/0
65 Grower 112582100/0
66 Nut 112292100/0
