Spare parts > Castelgarden > Trimmer/Brushcutter > BKE 35 D BKE 35 D (2013) > Gear case
Back to

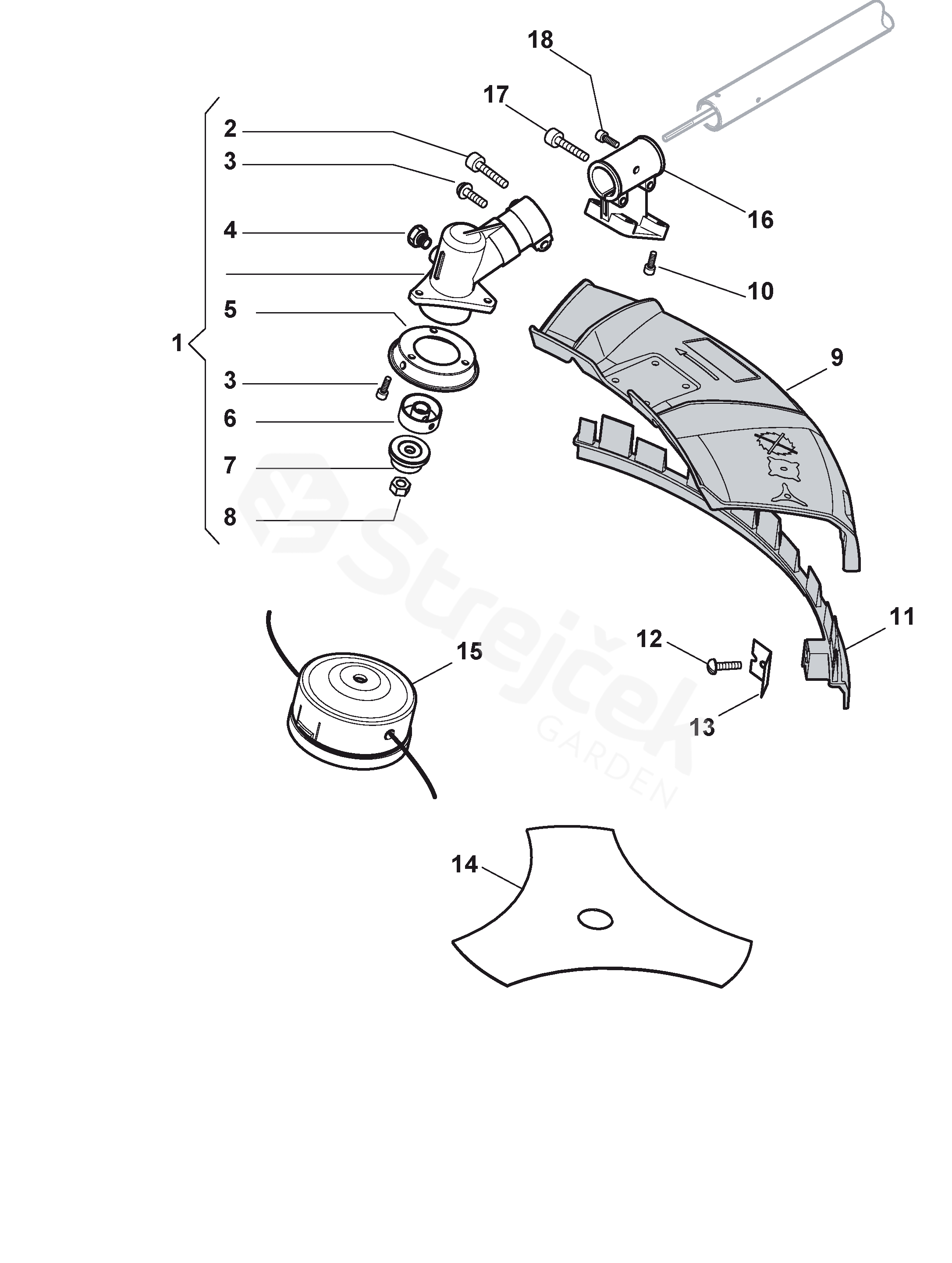

Gear case
BKE 35 D BKE 35 D (2013)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For BKE 35 D (2013)
1 Gear case assy 183820507/0
2 Screw 2135030
3 Screw 2135180
4 Screw 112727794/0
5 Guard 123670002/0
6 Upper Ring Nut 123250002/0
7 Lower Ring Nut 123250003/0
8 Nut 123120015/0
9 Safety Cover, Black 118801341/0
10 Screw 112735654/0
11 Guard, Black 118801342/0
12 Screw 112728099/1
13 Line Cutter Blade 123311013/0
14 3 Teeth Disc 123155010/0
15 2 Hedges Nylon Head 383820507/0
16 Support 123784012/0
17 Screw 2135050
18 Screw 2135180
