Spare parts > Husqvarna > RIDERS > R115 B R115 B, 967149601, 967181601, 2013-01 > ENGINE
Back to

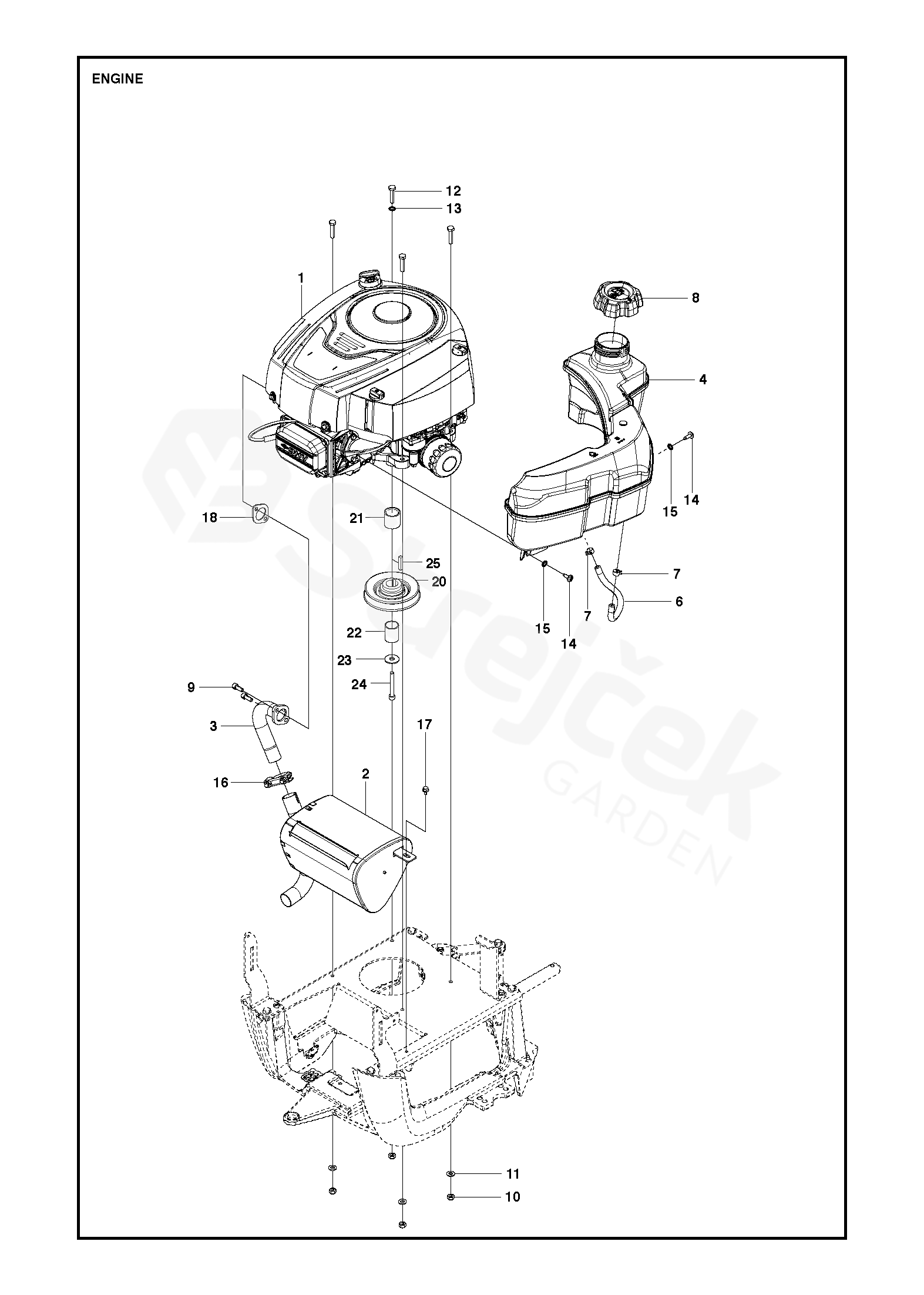

ENGINE
R115 B R115 B, 967149601, 967181601, 2013-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For R115 B, 967149601, 967181601, 2013-01
1 ENGINE 580375001
2 MUFFLER ASSY 580735501
3 MANIFOLD 580376601
4 FUEL TANK 580541102
6 FUEL HOSE 504800013
7 HOSE BRACE 535469701
8 HUB CAP 532439645
9 SCREW UNC 506556301
10 LOCK NUT 732211801
11 PODLOŽKA 734116401
12 SCREW 725245751
13 LOCKWASHER 735216400
14 SCREW 544400401
15 LOCKWASHER 735216400
16 CLAMP ASSY 506668401
17 SCREW EHHFT 725236461
18 GASKET 506914501
20 PULLEY 522827601
21 SPACING SLEEVE 506509202
22 TUBE 574412002
23 PODLOŽKA 506597501
24 SCREW UNC 506556002
25 WEDGE 506555902
