Spare parts > Husqvarna > RIDERS > R115 B R115 B, 967149601, 967181601, 2013-01 > CHASSIS REAR
Back to

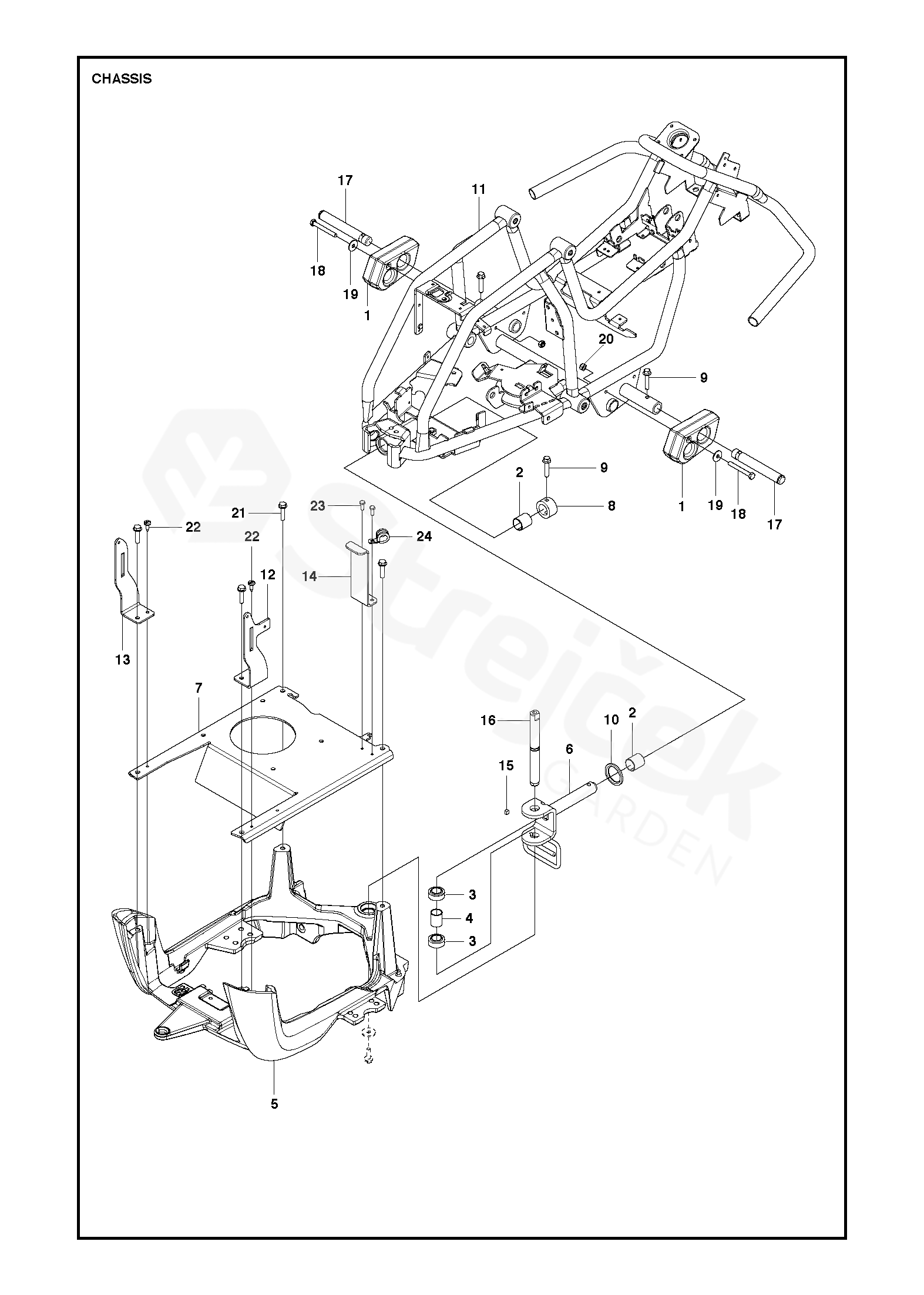

CHASSIS REAR
R115 B R115 B, 967149601, 967181601, 2013-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For R115 B, 967149601, 967181601, 2013-01
1 COUNTERWEIGHT 580464201
2 GLIDLAGER 506986101
3 BEARING 574368501
4 SLEEVE 522424501
5 FRAME 579569501
6 SWING AXLE 580267401
7 BRACKET 579597801
8 STOP SLEEVE 522425201
9 SCREW EHHFT 725245961
10 SPACER 522425301
11 FRAME 581274101
12 BRACKET 580682101
13 BRACKET 580682301
14 BRACKET 580682401
15 KEY 577708901
16 SHAFT 579720401
17 WHEEL AXLE 535470802
18 SCREW EHHM 725246451
19 PODLOŽKA 734116441
20 LOCK NUT 732211801
21 SCREW EHHFM 506570106
22 SCREW 544400401
23 SCREW EHHFT 725236861
24 HADICOVÁ SVĚRKA 574531203
