Spare parts > Husqvarna > RIDERS > RIDER 11 C RIDER 11 C, 965094201, 2010-07 > CHASSIS REAR
Back to

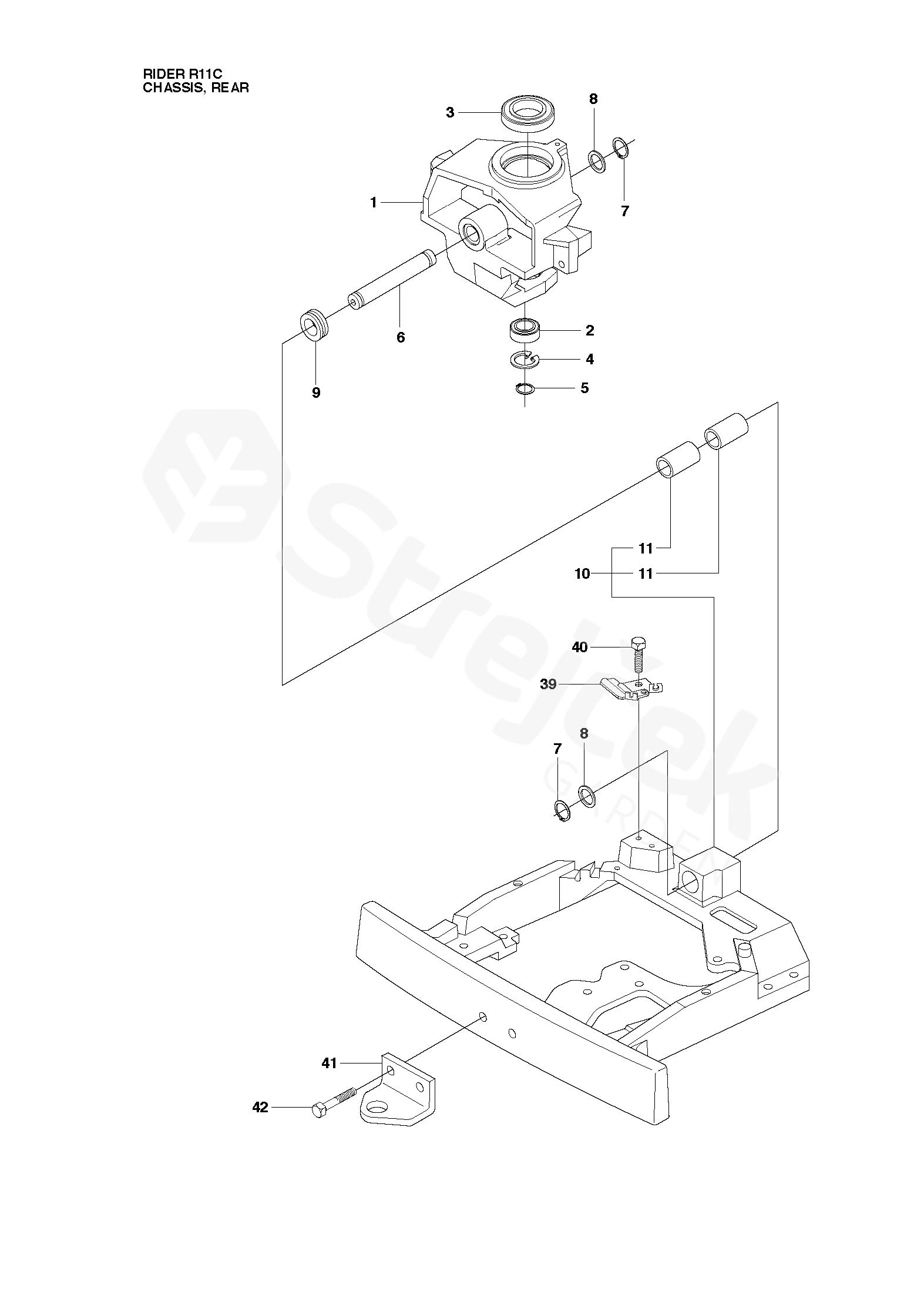

CHASSIS REAR
RIDER 11 C RIDER 11 C, 965094201, 2010-07
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For RIDER 11 C, 965094201, 2010-07
1 SPINDLE 506985803
2 BALL BEARING 738210504
3 BALL BEARING 738211004
4 CIRCLIP 735314010
5 CIRCLIP 735312600
6 SWING AXLE 506985901
7 CIRCLIP 735312600
8 WASHER 506773401
9 V-RING 740681421
10 DRŽÁK 535406001
11 GLIDLAGER 506986102
39 WIRE HOLDER 506575201
40 HEXAGONAL SCREW M6X12 725236651
41 HITCH 506889901
42 SCREW EHHM 725249371
