Spare parts > Husqvarna > ROBOTIC LAWN MOWERS > AUTOMOWER 308 AUTOMOWER 308, 2014-02 > CHASSIS UPPER
Back to

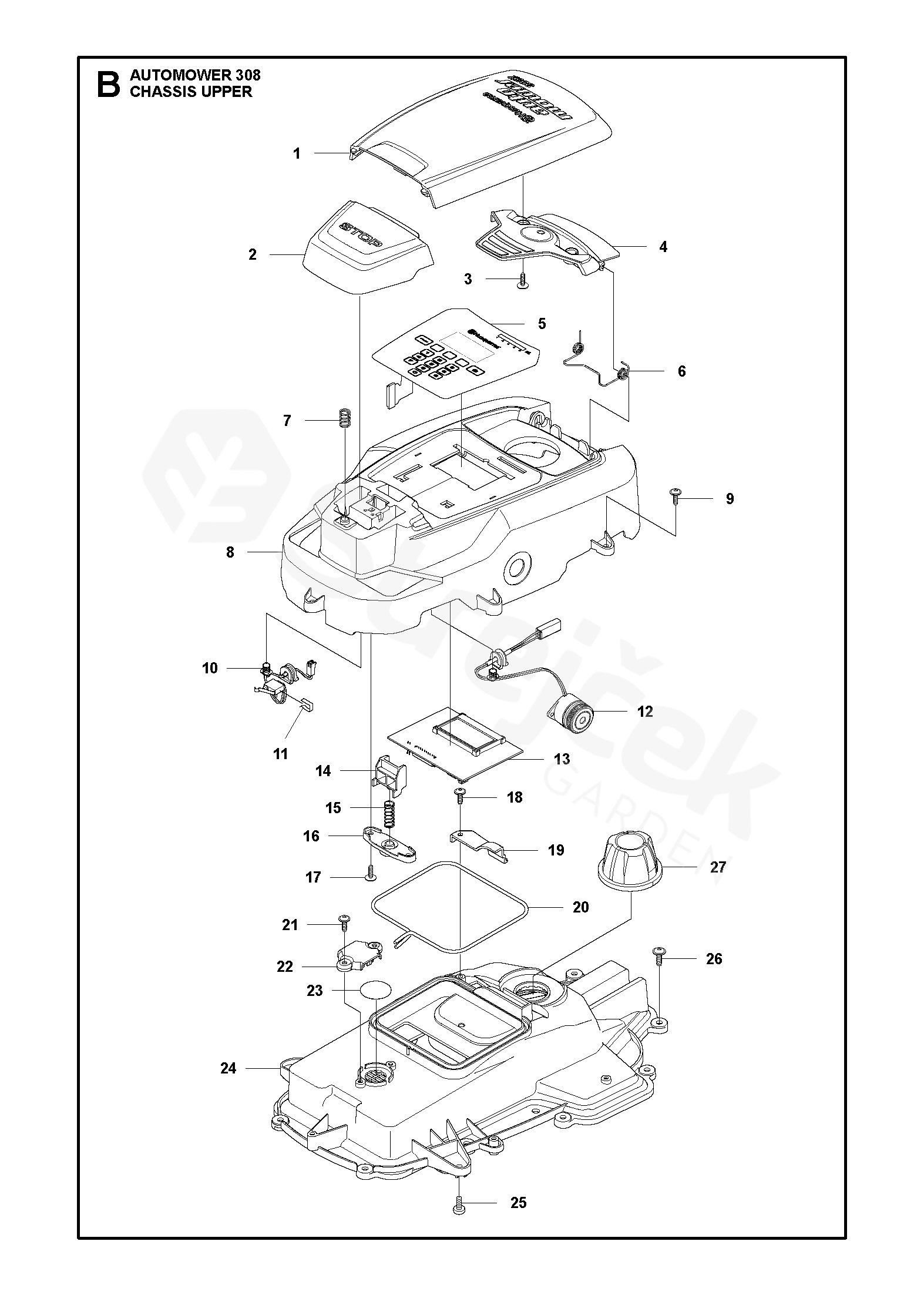

CHASSIS UPPER
AUTOMOWER 308 AUTOMOWER 308, 2014-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For AUTOMOWER 308, 2014-02
1 HATCH GREY
grey 		580792902
2 BUTTON
Stop button 		574464701
3 SCREW
grey (14mm) 		575543314
4 HINGE 574377901
5 KEYBOARD 575779401
6 SPRING 576242101
7 SPRING 574487001
8 KIT 577752802
9 SCREW
grey (14mm) 		575543314
10 SWITCH 574480301
11 CLIP 535089801
12 BUZZER 574475901
13 PRINTED CIRCUIT ASSY 575640101
14 LOCK 575409001
15 SPRING 576242201
16 SPRING HOLDER 575415801
17 SCREW
grey (14mm) 		575543314
18 SCREW
grey (14mm) 		575543314
19 COVER 576053901
20 SEALING STRIP
(Ø4mm) 		574874704
21 SCREW
grey (14mm) 		575543314
22 COVER 576697001
23 KIT
(10 pcs) 		577753701
24 KIT 577752902
25 SCREW ITXPANM 576213901
26 SCREW ITXPANT 574450101
27 KNOB 579742401
