Spare parts > Husqvarna > ICE AUGERS > 1130 SBEXP 1130 SBEXP, 96195000202, 961950002, 2006-10 > HANDLE & CONTROLS
Back to

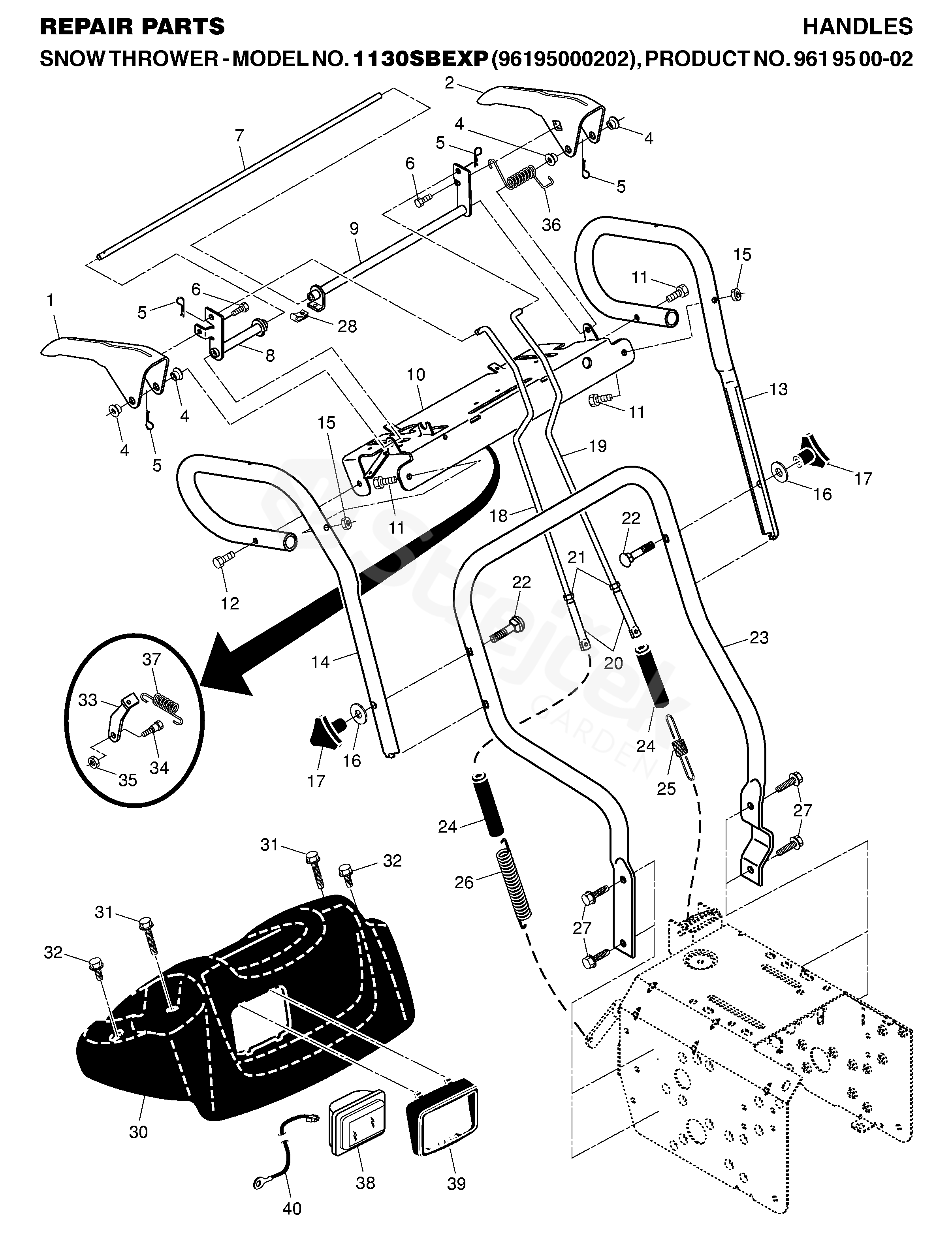

HANDLE & CONTROLS
1130 SBEXP 1130 SBEXP, 96195000202, 961950002, 2006-10
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 1130 SBEXP, 96195000202, 961950002, 2006-10
1 LEVER 532407649
2 LEVER 532407648
4 BUSHING 532178888
5 PIN RETAINING SCREW 532169675
6 SCREW 817060408
7 ROD 532178652
8 BRACKET 532184003
9 TUBE ASSEMBLY, INTERLOC 532178651
10 PANEL 532184106
11 BOLT 874780524
12 BOLT 874780528
13 HANDLE 532184107
14 HANDLE 532184108
15 BOLT 532751153
16 PODLOŽKA 819131316
17 KNOB 532178899
18 ROD 532184594
19 ROD 532193081
20 END, CONTROL ROD 532180428
21 NUT 873350500
22 BOLT 872120618
23 HANDLE 532184087
24 SLEEVE, SPRING 532180447
25 SPRING 532180926
26 SPRING 532178669
27 SCREW 817000616
28 CLIP 532180494
30 CONSOLE 532182906
31 PAN HEAD TAPPING SCREW 532175262
32 SCREW 532184471
33 LATCH 532184111
34 BOLT 532401369
35 NUT 532068038
36 SPRING 532178831
37 SPRING 532178658
38 HEADLAMP 532180927
39 FRAME 532178668
40 WIRING 532178770
FLOOD BULB 532183784
